Circutor CVM-A1500 User Manual

>
>
<
<
>
<
>
<
2
1
Main
menu
Back
Output 1
Output 2

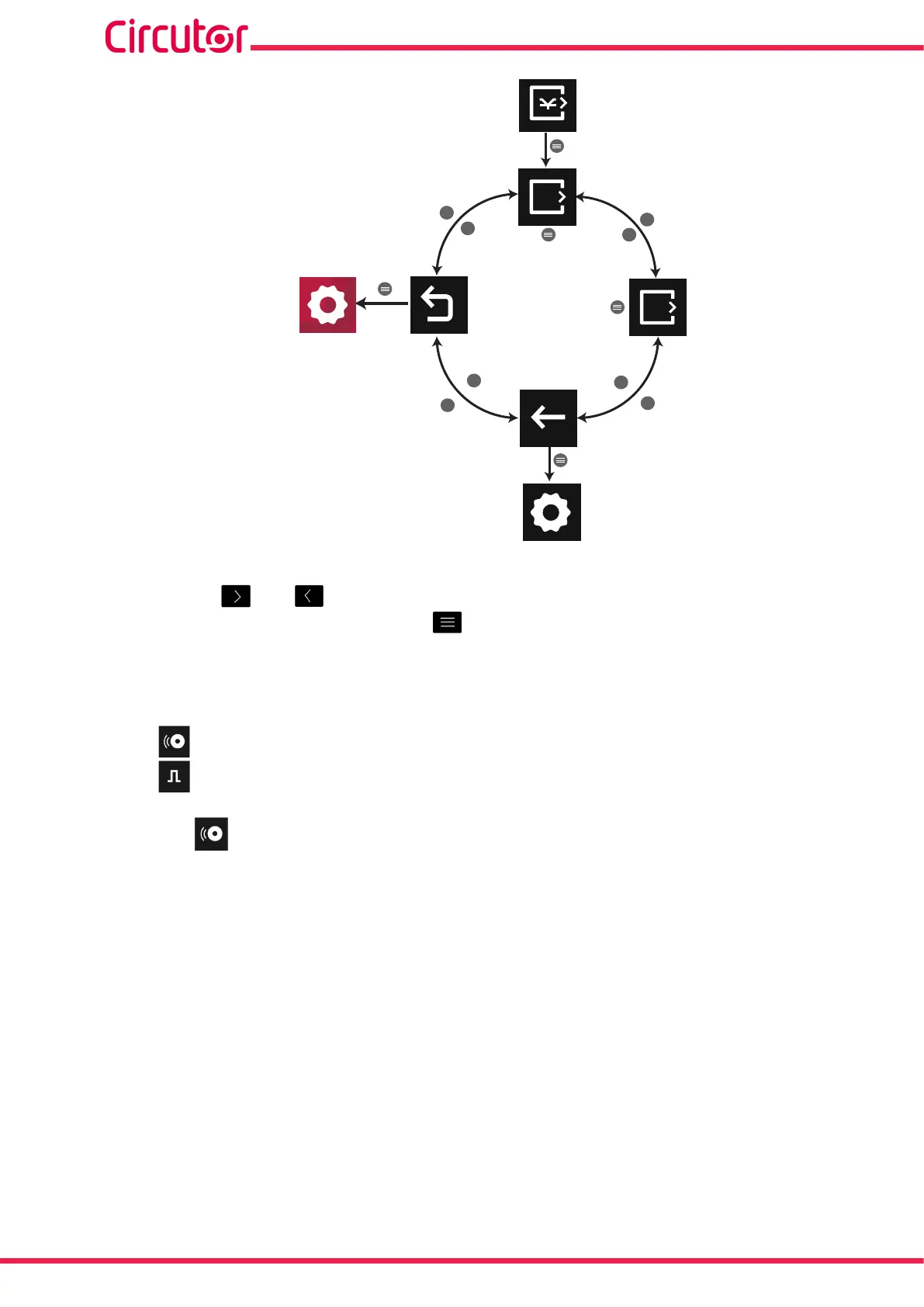

Figure 296: Setup menu: Transistor digital outputs�
Use the keys and to select the different options.
To conrm the selection, press the key .
After selecting the output to congure, you can congure the transistor output mode, Alarm or
Impulse output, and the parameters for each mode.
Alarm, to select the alarm mode of the transistor digital output.
Impulses, to select the impulse mode of the transistor digital output.
5�7�17�1�- Alarm mode of transistor digital output
When selecting the alarm mode, Figure 297, the conguration parameters are:
 The variable code that controls the transistor.
 The pre-alarm value.
 The minimum value below which the transistor is activated.
 The maximum value above which the transistor is activated.
 The delay in the connection and disconnection of the transistor.
 The status of the outputs.
 The latch.
206
CVM-A1000 - CVM-A1500
Instruction Manual
