7.2.- RELAY DIGITAL INPUTS/OUTPUTS
This expansion module features 8 relay digital inputs and 8 relay digital outputs.
7�2�1�- CONNECTION TERMINALS
A�- Terminals on the upper face
Table 86: List of terminals on the upper face, Relay digital inputs/outputs module�
Device terminals
1: R
1
, Digital output of relay 1 6: R
5
, Digital output of relay 5
2: R
2
, Digital output of relay 2 7: R
6
, Digital output of relay 6
3: R
3
, Digital output of relay 3 8: R
7
, Digital output of relay 7
4: R
4
, Digital output of relay 4
9: R
8
, Digital output of relay 8
5: COM
, Common digital outputs of relay R
1,
R
2,
R
3
and
R
4
10: COM, Common digital outputs of relay R
5,
R
6,
R
7 and
R
8
1 2
3
4 5 6 7 8 9 10

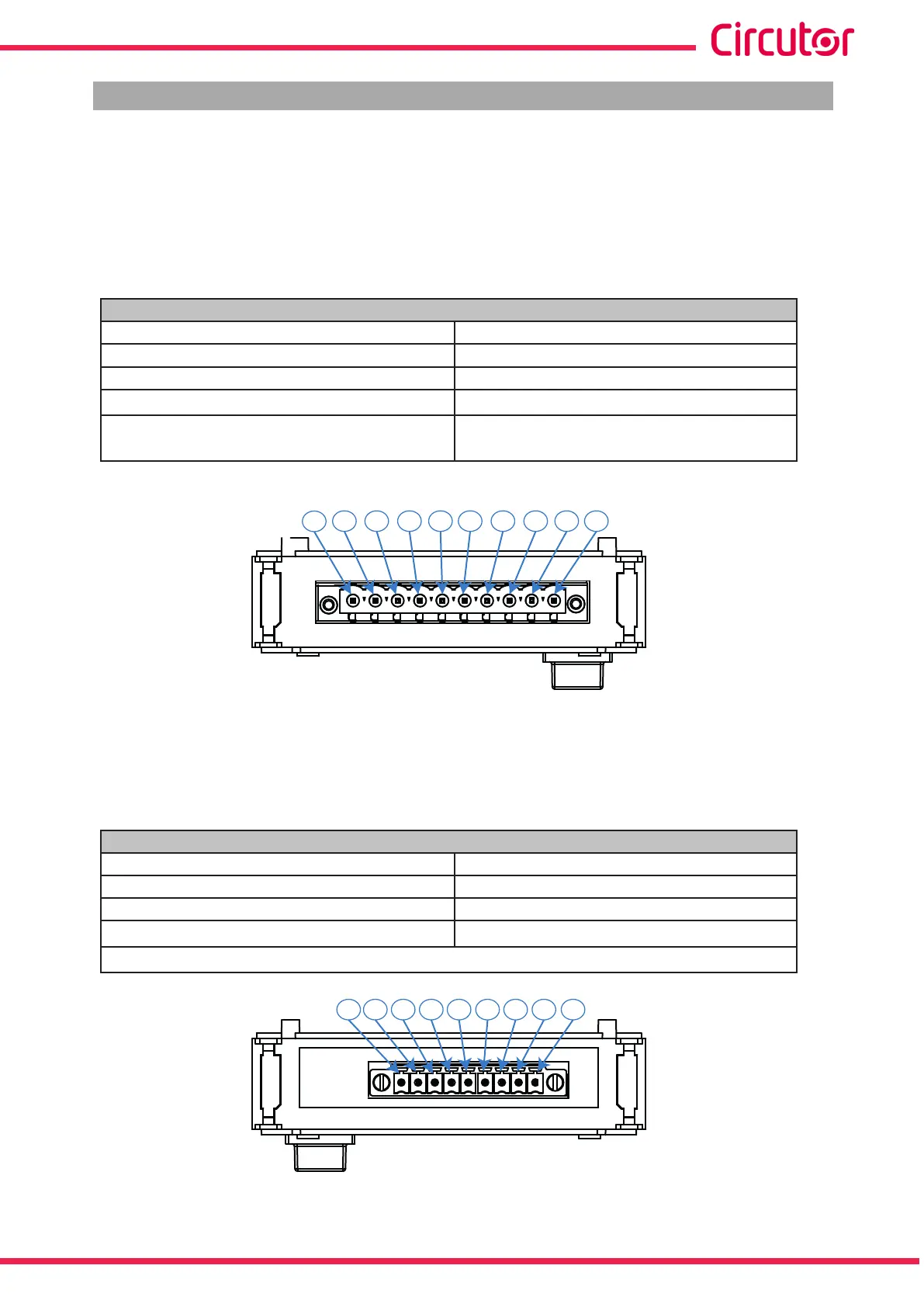

Figure 330: Terminals of Relay Digital Inputs/Outputs, upper face�
B�- Terminals on the lower face
Table 87: List of terminals on the lower face, Relay digital inputs/outputs module�
Device terminals
11: COM, for digital inputs 16: I
5
, Digital input 5
12: I
1
, Digital input 1 17: I
6
, Digital input 6
13: I
2
, Digital input 2 18: I
7
, Digital input 7
14: I
3
, Digital input 3
19: I
8
, Digital input 8
15: I
4
,
Digital input 4
11 12 13 14 15 16 17 18 19
Figure 331:Terminals of Relay Digital Inputs/Outputs, lower face�
265
Instruction Manual
CVM-A1000 - CVM-A1500
