7.6.- LONWORKS COMMUNICATIONS MODULE
The LonWorks communications module, M-CVM-AB-LON, enables communicating the CVM-A
on a LonWorks network.

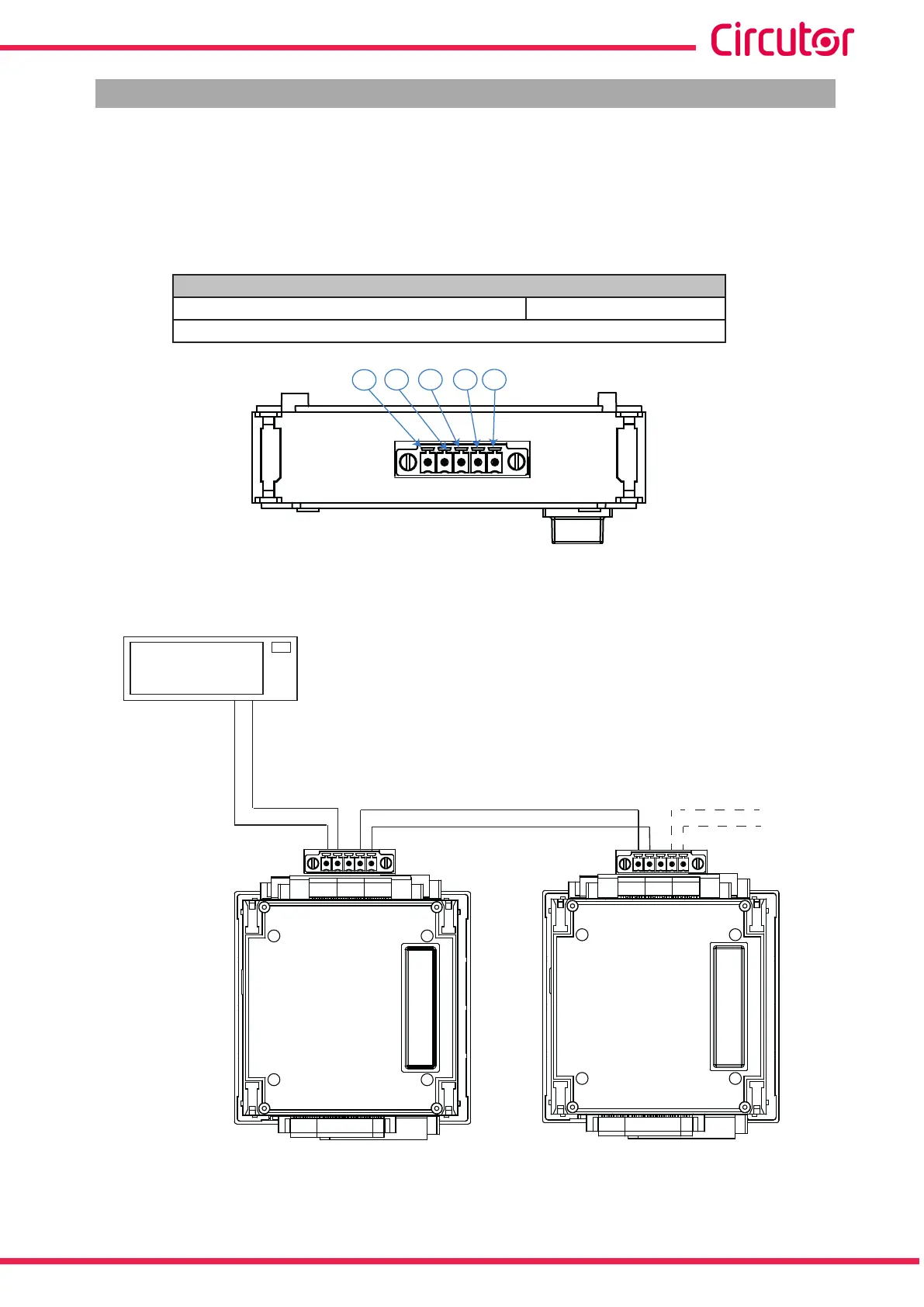

7�6�1�- CONNECTION TERMINALS
Table 151: List of terminals, LonWorks communications module�
Terminals in the device
1, 4: A, Bus connection ( without polarity ) 3: Not used
2, 5: B, Bus connection ( without polarity )
1
2
3
4 5
Figure 377: Modbus LonWorks communications module terminals�
7�6�2�- CONNECTION DIAGRAM
B B A
A B
Red LonWorks
A A B
CVM-A1xxx
+
M-CVM-AB-LON
CVM-A1xxx
+
M-CVM-AB-LON
Figure 378:Connection diagram, LonWorks�
315
Instruction Manual
CVM-A1000 - CVM-A1500
