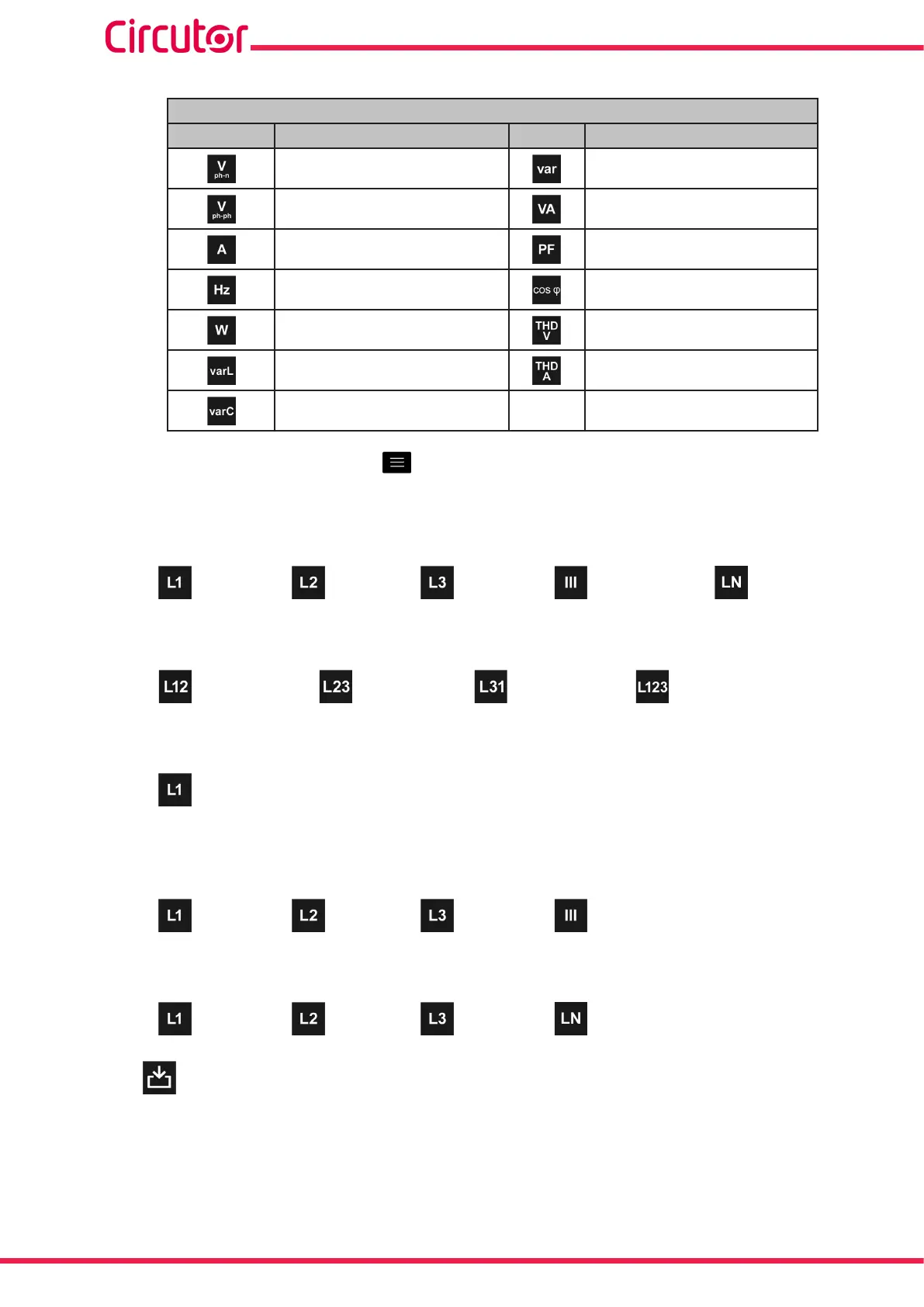

Table 20: Instantaneous parameters that can be selected on the customisation screens�
Customisation screen
Icon Instantaneous parameter Icon Instantaneous parameter
Phase-Neutral Voltage Total reactive power
Phase-Phase Voltage Apparent power
Current Power factor
Frequency Cosine phi
Active power Voltage THD
Inductive reactive power Current THD
Capacitive reactive power
To select a parameter, press the button to open the menu at the bottom for selecting the
phase:
● For the Neutral-Phase and Voltage parameters:
Phase L1, Phase L2, Phase L3, Three-phase, Neutral.
● For the Phase-Phase Voltage parameter:
Phase L1-L2, Phase L2-L3, Phase L1-L3, Phase L1-L2-L3.
● For the Frequency parameter:
Phase L1.
● For the Active power, Inductive reactive power, Capacitive reactive power, Total
reactive power, Apparent power, Power factor and Cosine phi parameters:
Phase L1, Phase L2, Phase L3, Three-phase.
● For the Voltage THD and Current THD parameters:
Phase L1, Phase L2, Phase L3, Neutral.
The option appears after selecting the phase to save the selection.
80
CVM-A1000 - CVM-A1500
Instruction Manual
