Cisco ASR-920-12SZ-IM Hardware Installation Guide

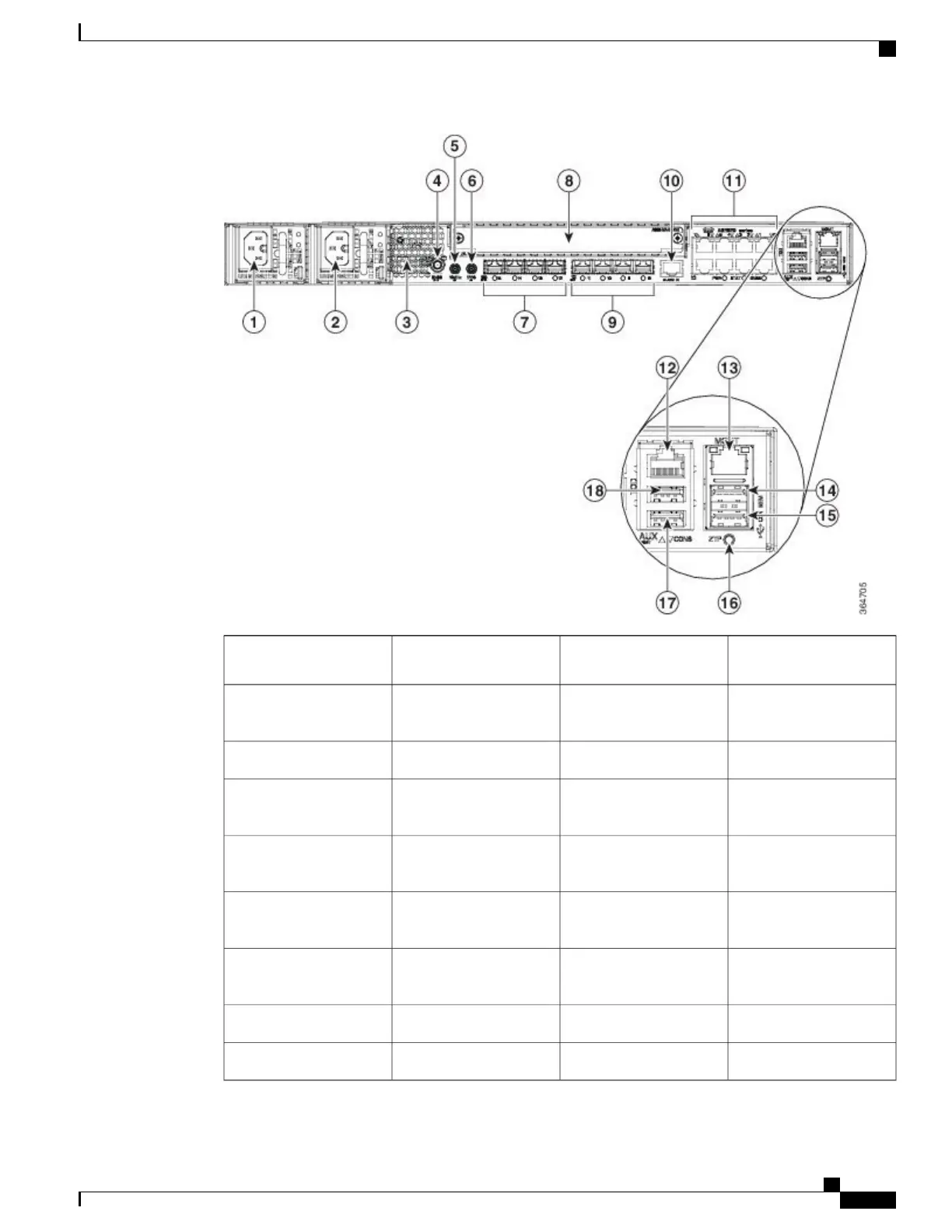

Alarm port10Power Supply 0 (AC or
DC)
1
Eight Copper port (1G
PoE)
11Power Supply 1 (AC or
DC)
2
ToD port12Front Air-Inlet Area3
Management Port13GNSS RF IN (SMA
threaded connector)
4
USB Memory port14SMB Snap-in connector
(10MHZ)
5
USB Console port15SMB Snap-in connector
(1PPS)
6
Zero Touch Provisioning
button
16Four 1G/10G SFP+7
RS232 Console port17Interface Module8
RS232 Aux Console port18Four 1G SFP9
Cisco ASR-920-12SZ-IM Aggregation Services Router Hardware Installation Guide
5
Cisco ASR 920 Series Aggregation Services Router Overview
SFP+ Ports

Cisco ASR-920-12SZ-IM Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Networking standards	IEEE 802.3x
Ethernet LAN data rates	10, 100, 1000, 10000 Mbit/s
USB ports quantity	2
Ethernet LAN (RJ-45) ports	8
Product color	Gray
Rack capacity	1U
Antenna type	Not supported
AC input voltage	100 - 240 V
Power source type	AC, DC, PoE
AC input frequency	50 - 60 Hz
Power consumption (typical)	130 W
Non-operating altitude	0 - 4570 m
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Safety	UL 60950-1, 2005, CAN/CSA C22.2 No. 60950-1: 2005, IEC 60950-1, 2005, EN 60950-1, 2005, AS/NZS 60950.1:2005
Electromagnetic compatibility	FCC CFR47 Part 15 Class A
Mean time between failures (MTBF)	407230 h
Firewall	-
Security algorithms	IPSec

Weight and Dimensions

Depth	286.54 mm
Width	444.5 mm
Height	44 mm
Weight	4830 g
