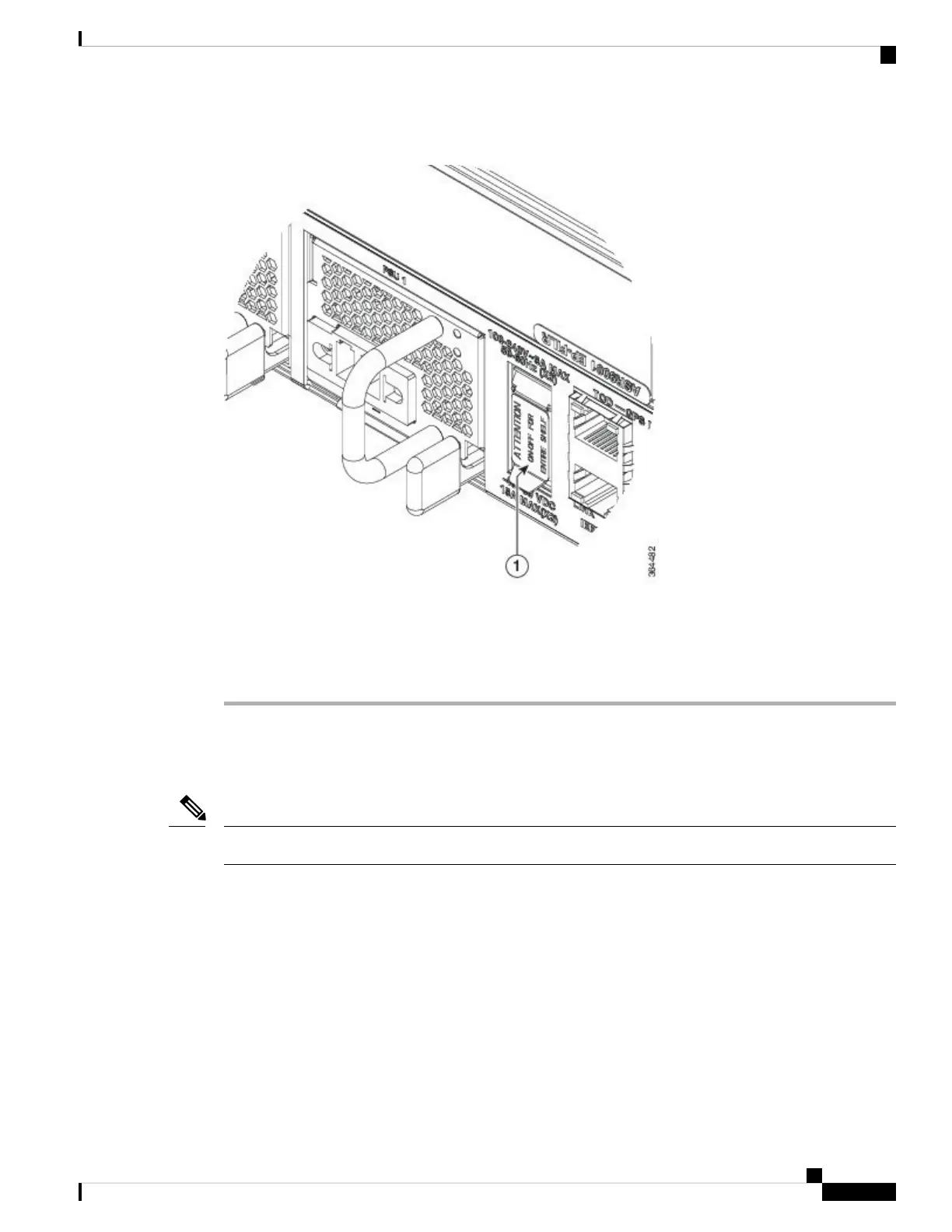

Figure 107: Power Switch on the Cisco ASR 9001
Step 2 Power off all circuit breakers for the source power lines connected to the power trays.
Step 3 Verify that the Pwr OK indicator on each power module is off.
Step 4 Verify that the OK indicator on the fan tray is off.
Removing and Replacing the Fan Tray
Fan tray OIR (Online Insertion and Removal) is supported from Cisco IOS XR Release 4.2.3.
Note
The fan tray can be removed and replaced while the router is operating.
Cisco ASR 9901—We recommend that you replace a fan tray within 5 minutes.
Cisco ASR 9001—We recommend that you replace the fan tray within the following times to ensure that the
router does not overheat:
• 3.1 minutes at 25°C operating temperature
• 2 minutes at 40°C operating temperature
• 42 seconds at 55°C operating temperature
Cisco ASR 9901, ASR 9001, and ASR 9001-S Routers Hardware Installation Guide
133
Replacing Router Components
Removing and Replacing the Fan Tray

Cisco ASR 9901 Specifications

General

Chassis Height	1 RU
Rack Mounting	Yes
Redundancy	Yes
Operating System	Cisco IOS XR
Switching Capacity	Up to 1.2 Tbps
Memory	16 GB
Power Supply	Dual redundant AC or DC
Interfaces	10GE, 100GE
Operating Temperature	0 to 40°C (32 to 104°F)
Input Voltage	100-240V AC
Power Consumption	Varies based on configuration
Storage	64 GB SSD
Humidity	5% to 95% (non-condensing)
