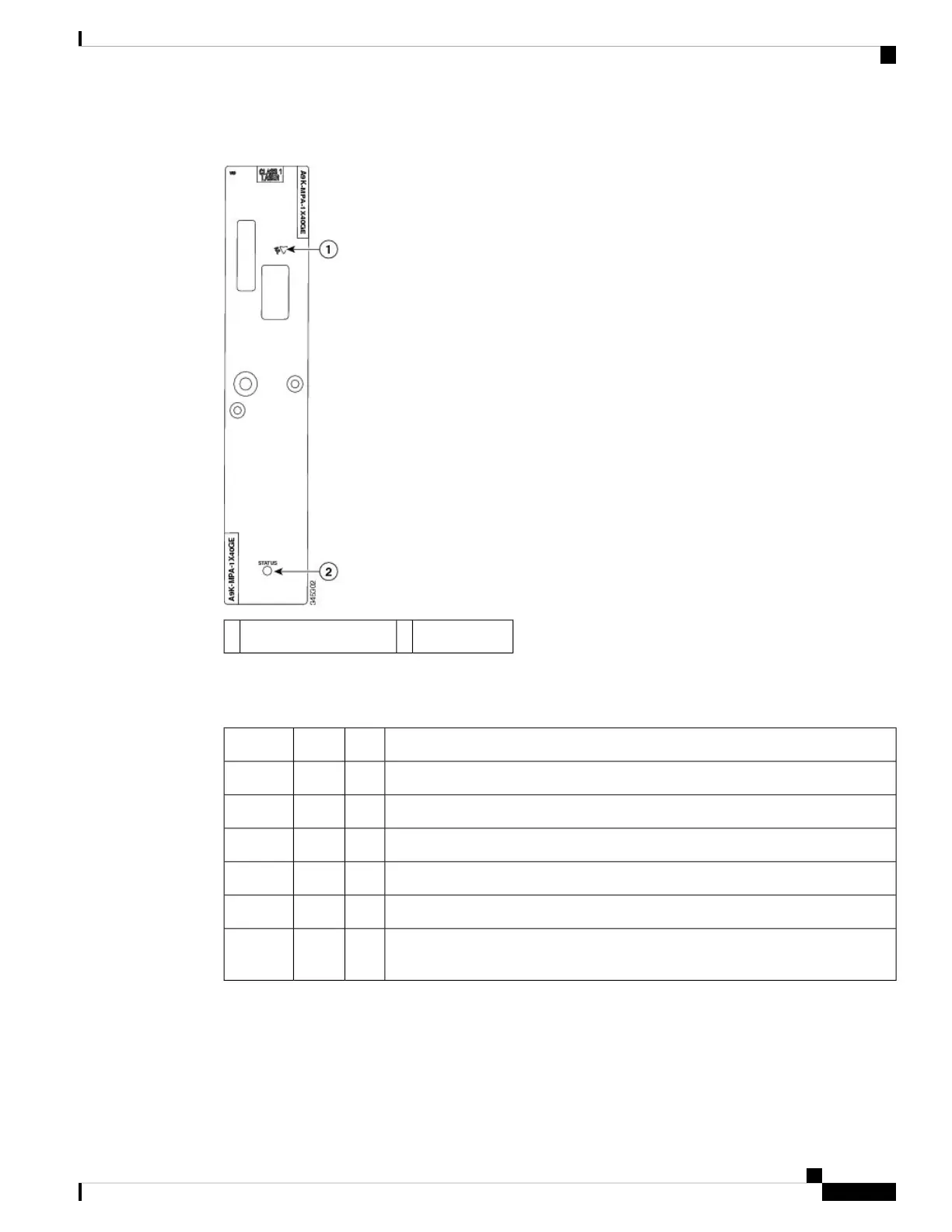

Figure 86: 1-Port 40 Gigabit Ethernet Modular Port Adapter
STATUS LED2A/L (Active/Link) LED1
The following table describes the 1-Port 40 Gigabit Ethernet modular port adapter LEDs.
Table 12: 1-Port 40 Gigabit Ethernet Modular Port Adapter LEDs
MeaningStateColorLED Label
Port is not enabled.OffOffA/L
Port is enabled and the link is up.OnGreen
Port is enabled and the link is down.OnAmber
Modular port adapter power is off.OffOffSTATUS
Modular port adapter is ready and operational.OnGreen
Modular port adapter power is on and good, and the modular port adapter is being
configured.
OnAmber
Installing and Removing Modular Port Adapters
These sections describe how to install or remove modular port adapters (MPAs) on the Cisco ASR 9001
Router.
Cisco ASR 9901, ASR 9001, and ASR 9001-S Routers Hardware Installation Guide
79
Installing Modules and Cables in the Chassis
Installing and Removing Modular Port Adapters

Cisco ASR 9901 Specifications

General

Chassis Height	1 RU
Rack Mounting	Yes
Redundancy	Yes
Operating System	Cisco IOS XR
Switching Capacity	Up to 1.2 Tbps
Memory	16 GB
Power Supply	Dual redundant AC or DC
Interfaces	10GE, 100GE
Operating Temperature	0 to 40°C (32 to 104°F)
Input Voltage	100-240V AC
Power Consumption	Varies based on configuration
Storage	64 GB SSD
Humidity	5% to 95% (non-condensing)
