Cisco ASR 9901 Hardware Installation Guide

CHAPTER 3
Installing Modules and Cables in the Chassis
This chapter contains the procedures for installing cards and modules into the chassis, after it has been installed
in a rack. It also describes how to connect cables to the ports and RP.
• Cisco ASR 9901 Router Fixed Ports, on page 73
• Cisco ASR 9001 Router Fixed Ports and Modular Port Adapters, on page 74
• Installing and Removing Transceiver Modules, on page 85
• Cable Management, on page 85
• Connecting Route Processor Cables, on page 92
• Connecting Power to the Router, on page 94
• Powering on the Router, on page 98
Cisco ASR 9901 Router Fixed Ports
The Cisco ASR 9901 Router has 42 fixed-configuration ports that support the following transceivers:
• 16 SFP ports
• 24 SFP+ ports (supports SFP or SFP+)
• 2 QSFP28 ports

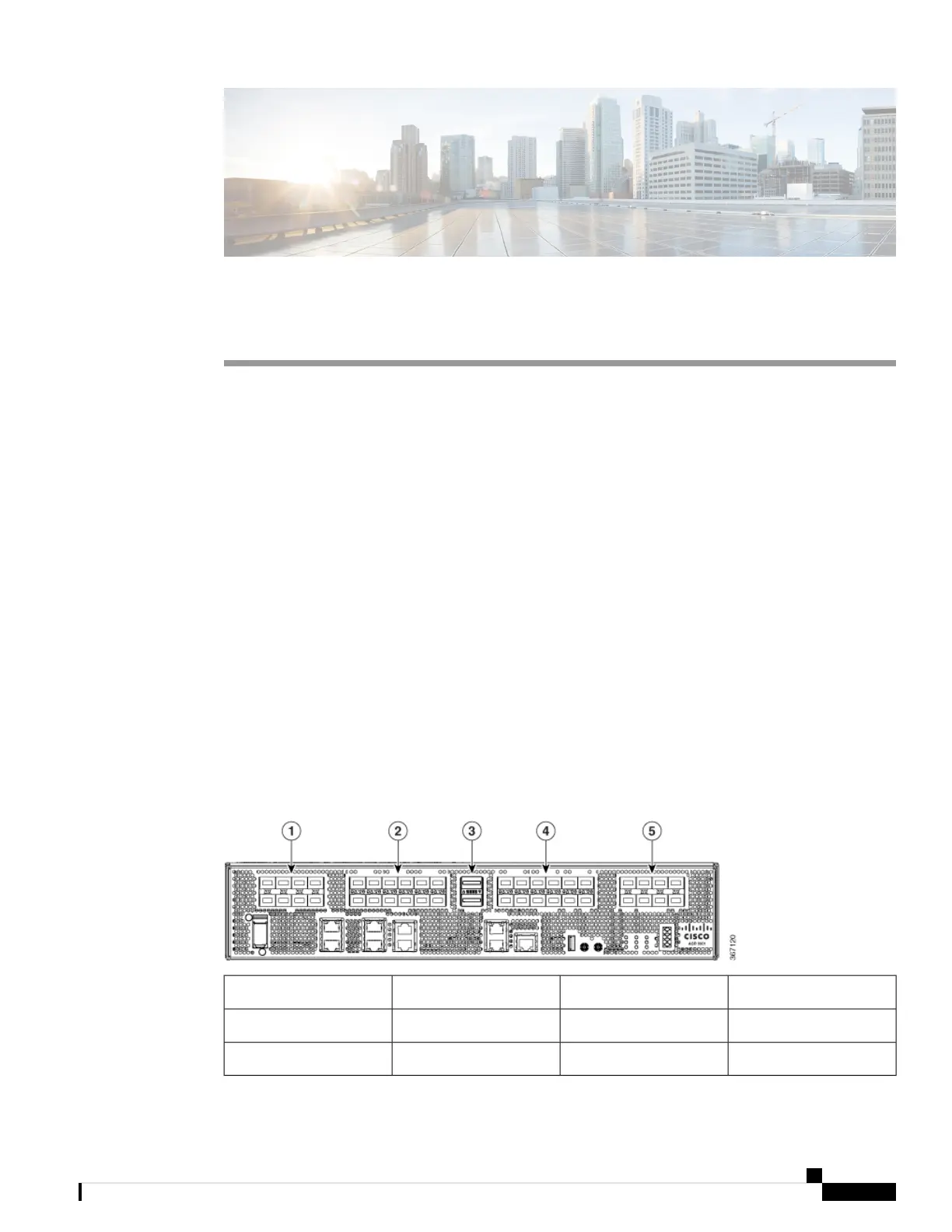

Figure 81: Cisco ASR 9901 Fixed Ports
SFP/SFP+ ports (22-33)4SFP ports (0-7)1
SFP ports (34-41)5SFP/SFP+ ports (8-19)2
QSFP28 ports (20-21)3
Cisco ASR 9901, ASR 9001, and ASR 9001-S Routers Hardware Installation Guide
73

Cisco ASR 9901 Specifications

General

Chassis Height	1 RU
Rack Mounting	Yes
Redundancy	Yes
Operating System	Cisco IOS XR
Switching Capacity	Up to 1.2 Tbps
Memory	16 GB
Power Supply	Dual redundant AC or DC
Interfaces	10GE, 100GE
Operating Temperature	0 to 40°C (32 to 104°F)
Input Voltage	100-240V AC
Power Consumption	Varies based on configuration
Storage	64 GB SSD
Humidity	5% to 95% (non-condensing)
