Cisco ASR 9901 Hardware Installation Guide

Due to the orientation of the QSFP28 ports (20 and 21), you might not be able to disconnect fiber optic cables
while the QSFP28 transceiver module is installed in the port. To disconnect fiber optic cables from the QSFP28
ports, we recommend that you first remove the QSFP28 transceiver module from the port, then remove the
cable.
Note
Cisco ASR 9001 Router Fixed Ports and Modular Port Adapters
This section describes the fixed ports and modular port adapters on the Cisco ASR 9001 Router.
Fixed 4x10-Gigabit Ethernet Ports
The Cisco ASR 9001 Router has four integrated 10 GE small form-factor pluggable (SFP+) ports that operate
at a rate of 10 Gbps.
Each fixed SFP+ port has an adjacent Link LED visible on the front panel. The Link LED indicates the status
of the associated SFP+ port.
In Cisco ASR 9001-S Router, two 10 GE fixed SFP+ ports (SFP+2 and SFP+3) are disabled by default, and
can be enabled by a license upgrade.
Note

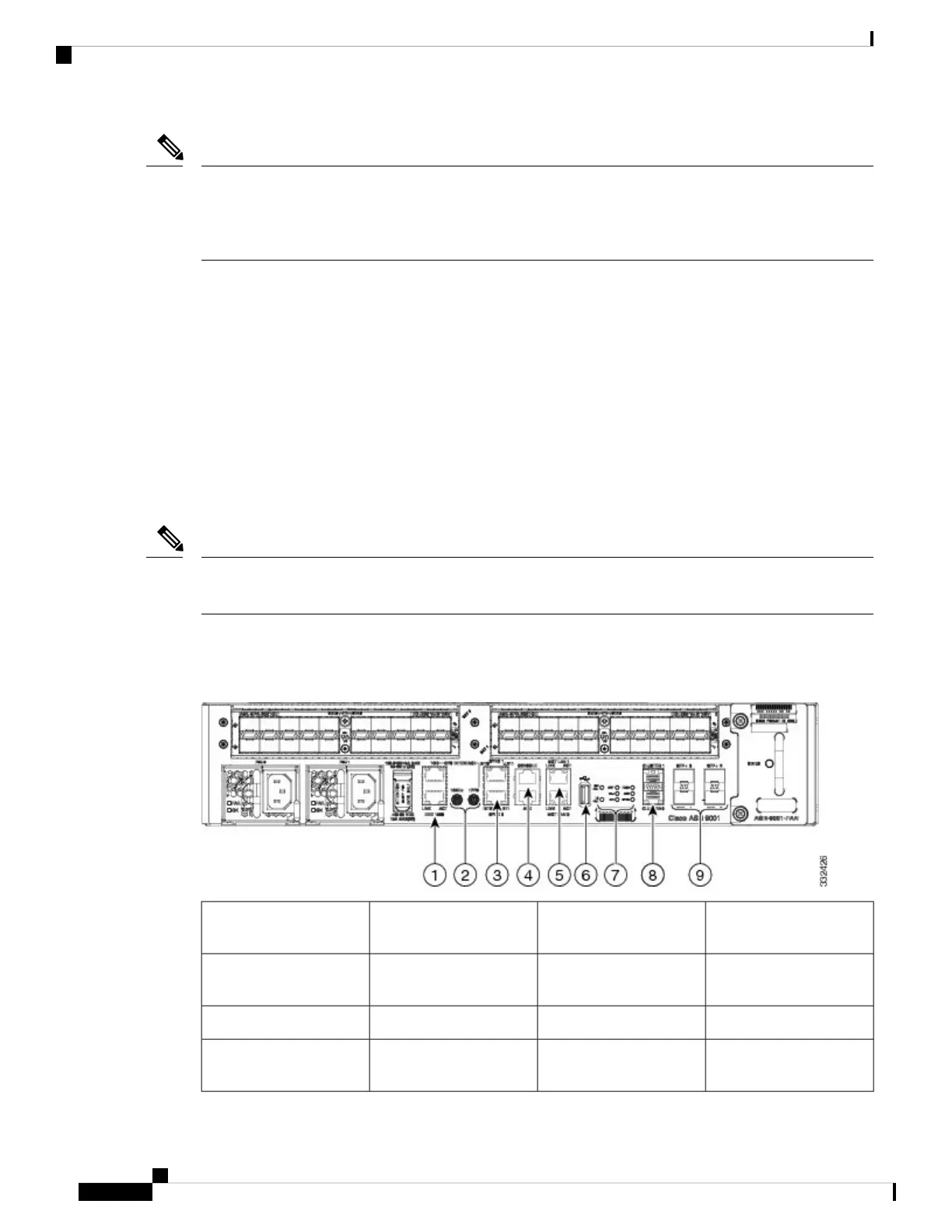

The following figure shows the front panel of the chassis and connectors of the fixed 4x10-Gigabit Ethernet
ports.
Figure 82: 4x10-Gigabit Ethernet SFP+ Ports
External USB port6Service LAN and ToD
ports
1
Eight discrete LED
indicators
710MHz and 1PPS
indicators
2
CLUSTER ports8SYNC (BITS/J.211) ports3
Fixed SFP+ ports9CONSOLE and AUX
ports
4
Cisco ASR 9901, ASR 9001, and ASR 9001-S Routers Hardware Installation Guide
74
Installing Modules and Cables in the Chassis
Cisco ASR 9001 Router Fixed Ports and Modular Port Adapters
