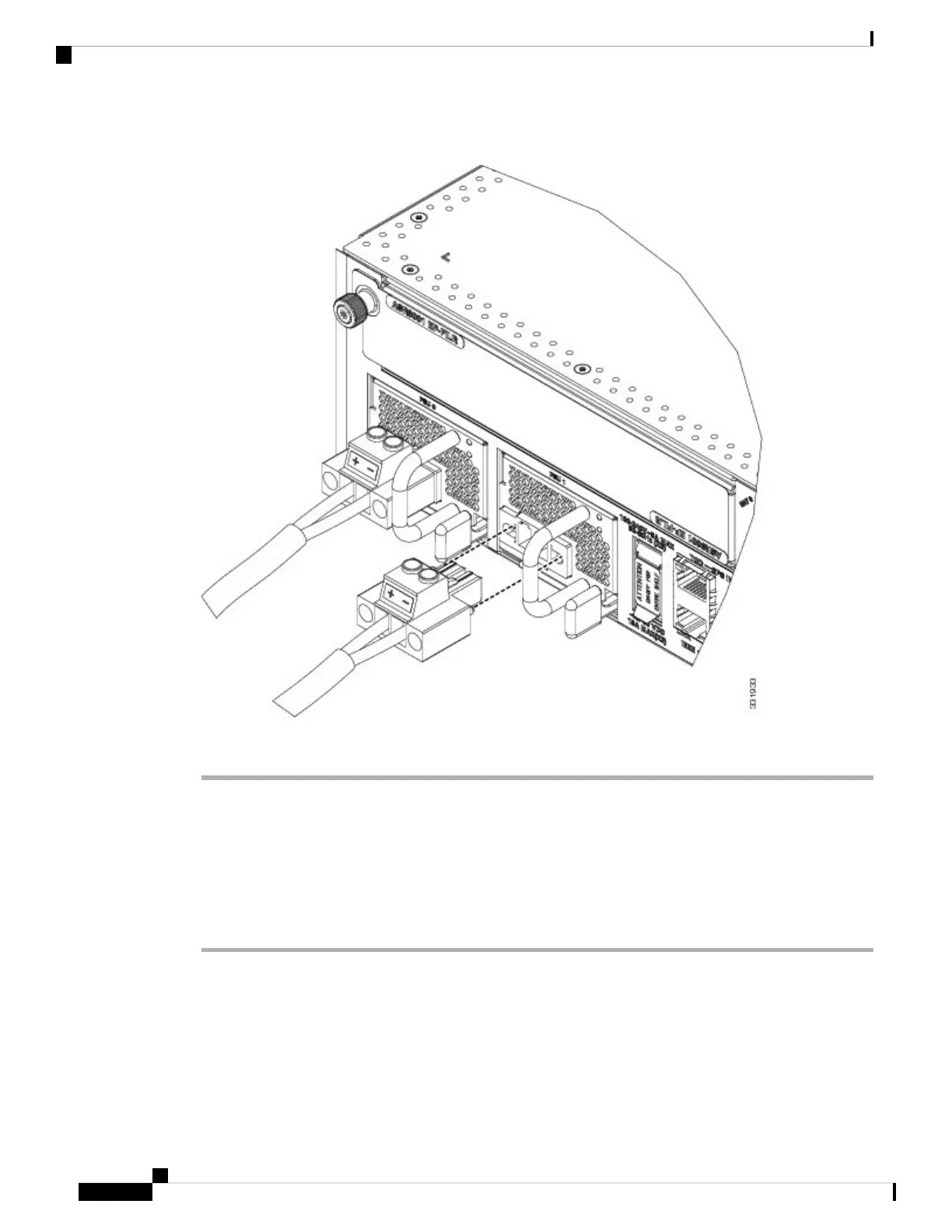

Figure 96: Cisco ASR 9001: Typical Power Connections for a Single DC Power Module
Step 4 Proceed to the next section.
Powering on the Router
Follow these steps to turn on power to either an AC-powered or DC-powered router:
Procedure
Step 1 Switch on the circuit breaker to your power sources.
Step 2 Verify that the Power Input LED on each power module is lit.
Step 3 Set the power switch to the ON position.
