Cable Management Tray—Cisco ASR 9001
A cable-management tray is mounted at the bottom of the Cisco ASR 9001 Router chassis for routing interface
cables to the RP. The following figure shows a typical cable routing through the cable-management tray.

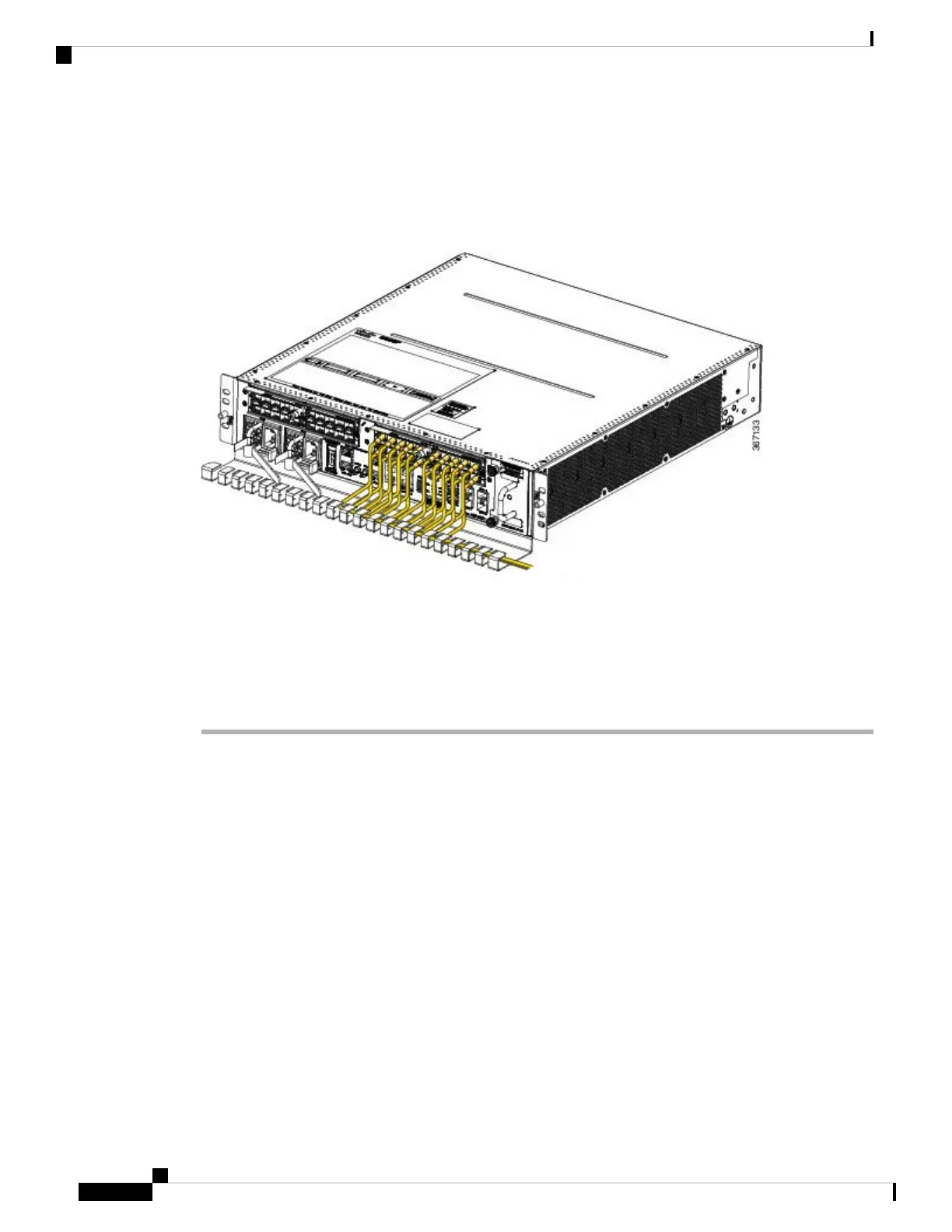

Figure 92: Example Cable Routing through the Cisco ASR 9001 Router Cable Management Tray
Installing a Cable Management Tray
To install a cable-management tray, follow these steps:
Procedure
Step 1 Attach an ESD-preventive wrist or ankle strap and follow its instructions for use.
Step 2 Position the cable-management tray at the bottom of the chassis front panel.
