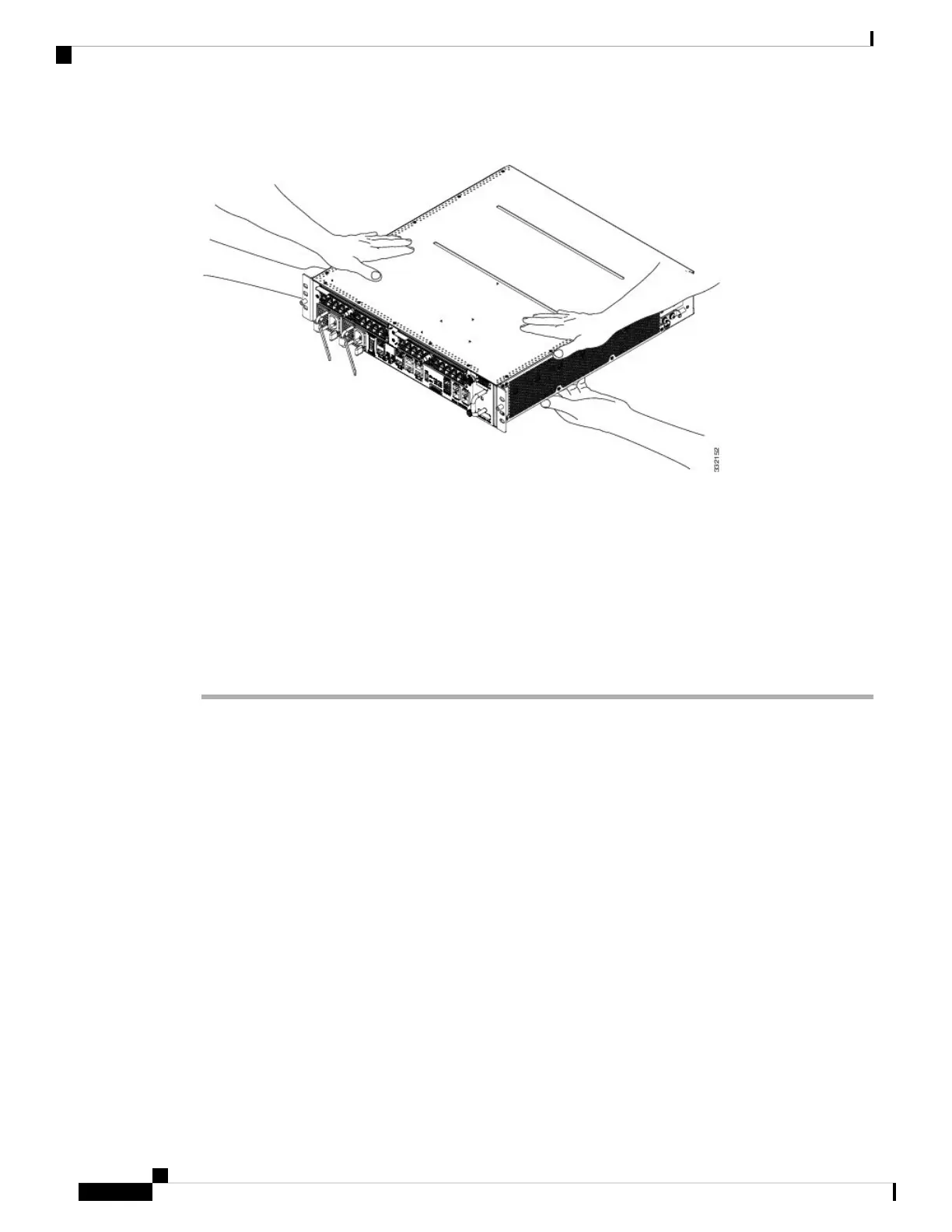

Figure 67: Correct Lifting Positions
Do not grasp air inlet or exhaust when lifting the router chassis.
Caution
Step 3 Position the chassis until the rack-mounting flanges are flush against the mounting rails on the rack.
Step 4 Hold the chassis in position against the mounting rails while the second person finger-tightens a screw to the
rack rails on each side of the chassis.
Step 5 Finger-tighten two more screws to the rack rails on each side of the chassis. Space the screws evenly between
the top and bottom of the chassis (see the figure below).
Step 6 Fully tighten all the screws on the chassis mounting flanges and bracket flanges (each side) to secure the
chassis to the rack rails.
Cisco ASR 9901, ASR 9001, and ASR 9001-S Routers Hardware Installation Guide
58
Unpacking and Installing the Chassis
Installing the Chassis in a Two-Post Rack
