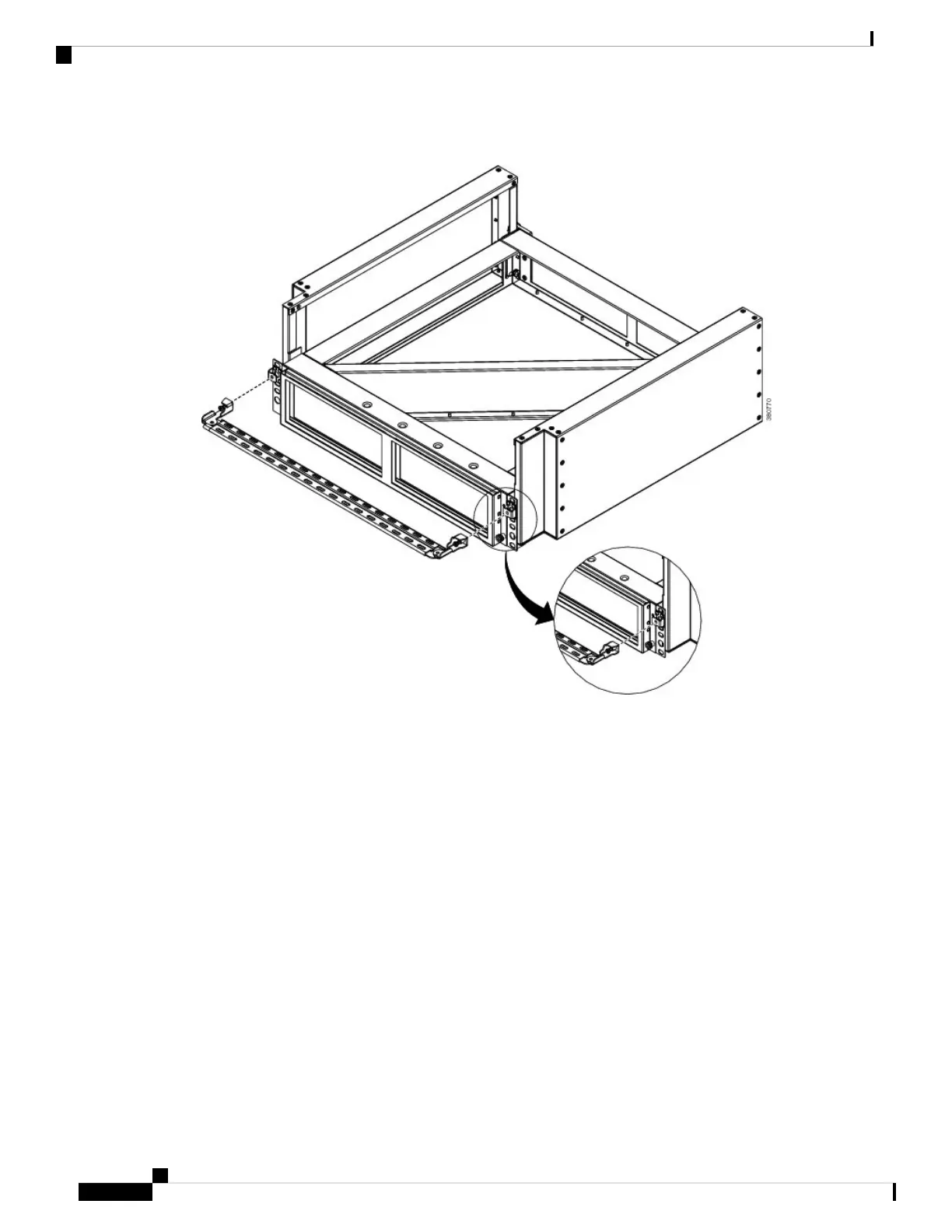

Figure 78: Attaching the Cable Management Tray to the Plenum Assembly
Step 5 Lift the plenum assembly to the desired position in the rack. Align the screw holes on the adapter plates of
the plenum assembly with the mounting holes in the rack.
Cisco ASR 9901, ASR 9001, and ASR 9001-S Routers Hardware Installation Guide
70
Unpacking and Installing the Chassis
Installing the Air Plenum Kit in an ETSI Two-Post to Four-Post Rack
