Chapter 11 Configuring Firewall Load Balancing
Configuring Reverse-Sticky for Firewalls

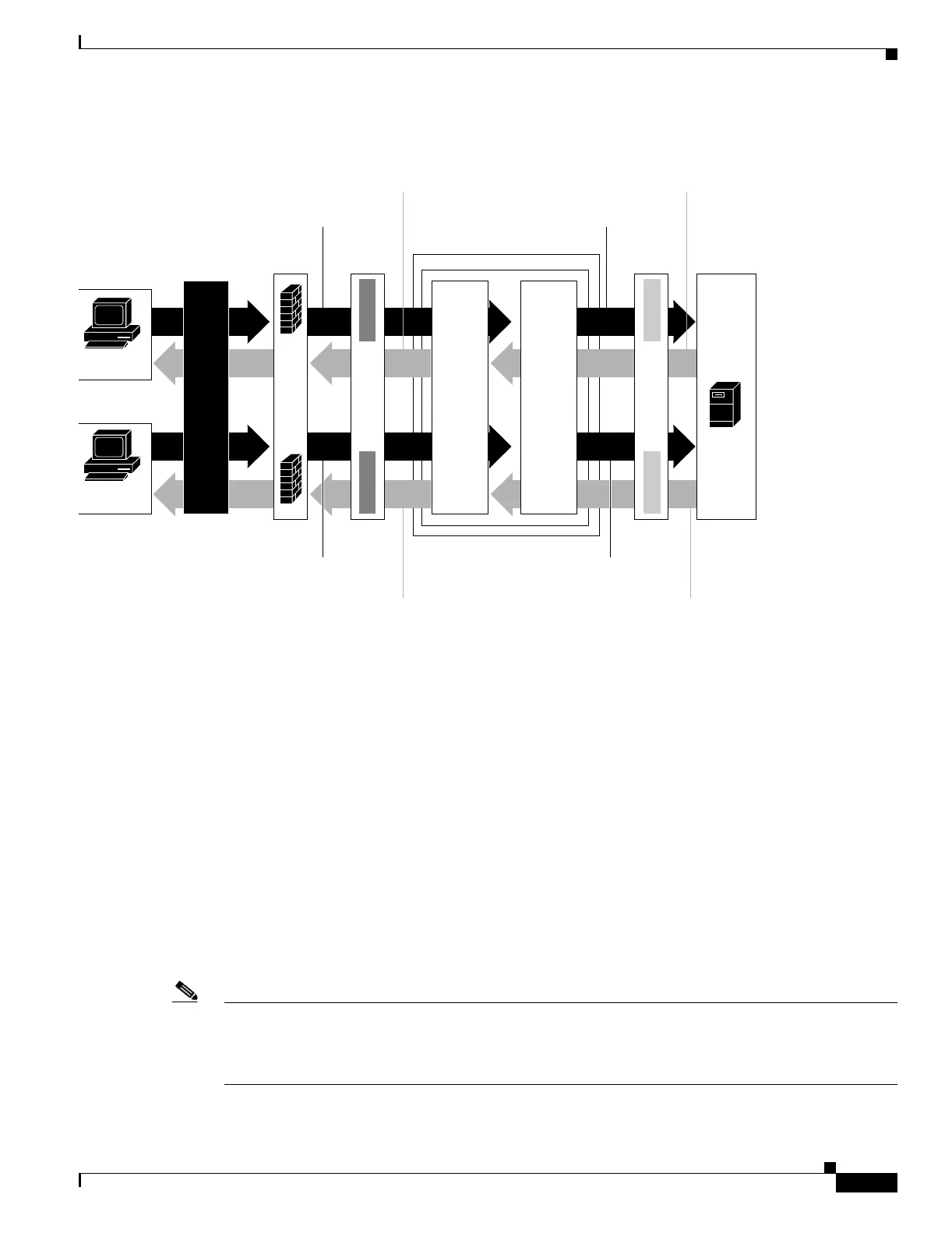

Figure 11-8 Reverse-Sticky for Firewalls
As shown in Figure 11-8, the reverse-sticky process is as follows:
• A client connects to the CSM virtual server, VS1, through a load-balanced firewall. This load
balancing decision is made without interaction with the CSM.
• Server 1 creates a connection back to the original client. This connection matches virtual server
VS2. VS2 uses the sticky information inserted by the original VS1 reverse-sticky. The connection
now is forced to the same Firewall 1.
• A second client, coming in through a different firewall, connects to the same VS1. Reverse-sticky
creates a new entry into database B for the second client, pointing to Firewall 2. VS1 also performs
a normal sticky to Server 1.
• Server 1 creates a connection back to Client 2. The connection matches the connection in VS2. VS2
uses the sticky information inserted by the original VS1 reverse-sticky. This connection is used for
the connection to Firewall 2.
• If the server had originated the first connection, the link back to the server would have been inserted
by VS2, and a normal load balancing decision would have generated a connection to one of the
firewalls.
Note This configuration supports forward direction connections (client to server) using any balancing metric.
However, the balancing metric to the firewalls from VS2 must match that of the unknown load balancer,
or the unknown load balancer must stick new buddy connections in a similar manner if client responses
to server initiated traffic are to be sent to the correct firewall.
Client
12.1.1.1
Client
12.1.1.2
Unknown load
balancer
Firewalls
Sticky "B"
Catalyst 6500
CSM
Sticky "A" Servers
Server 1
12.1.1.112.1.1.2 12.1.1.112.1.1.2
Forward VS2 Sticky insert A DST
Forward VS1
Sticky insert B SRC
Forward connection to VS1
STICKY INSERT "B"
Forward connection to VS1
STICKY INSERT "B"
Server connection decision
STICKY "B"
LB to Server 1
Match/Insert on "A"
Server initiatied
connection #1 to VS2
Server connection decision
STICKY "B"
LB to Server 1
Match/Insert on "A"
Server initiated
connection to VS2
