Cisco ONS SONET TL1 Command Guide, R6.0
Chapter 2 Procedures and Provisioning
2.2.9 Test Access Mode Definitions
2.2.9.1 MONE
Monitor E (MONE) indicates a monitor connection provided from the facility access digroup (FAD) to
the A transmission path of the accessed circuit (Figure 2-7 and Figure 2-8). This is a non-intrusive mode.

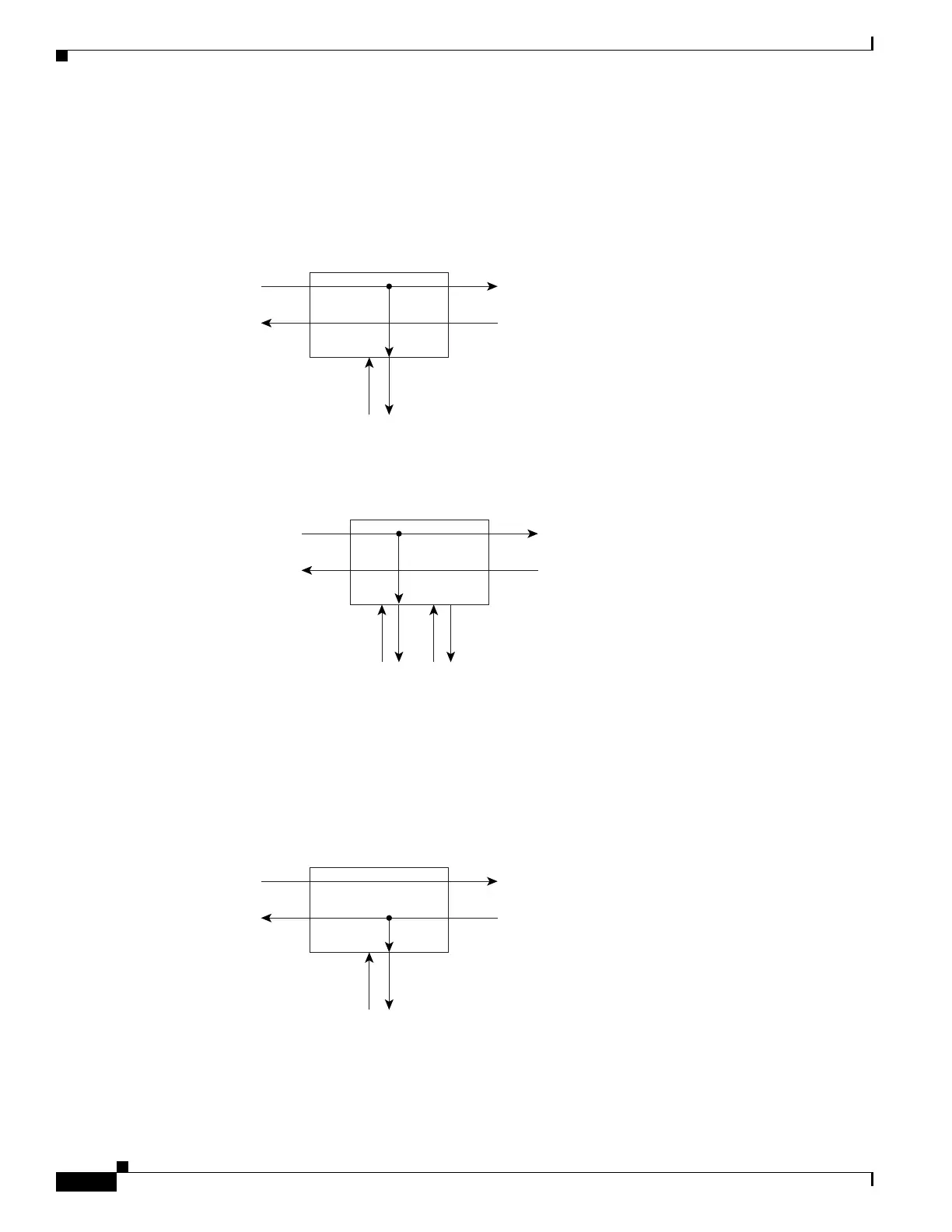

Figure 2-7 MONE Access Single TAP
Figure 2-8 MONE Access Dual TAP
2.2.9.2 MONF
Monitor F (MONF) indicates that the FAD is providing a monitor connection to the B transmission path
of the accessed circuit (Figure 2-9 and Figure 2-10). This is a non-intrusive mode.
Figure 2-9 MONF Access Single TAP
102060
A
E
B
F
"Mapped"
AID
AID
Single TAP
61107
A
E
B
F
"Mapped"
AID
AID
Dual-FAD TAP
(2 times the bandwidth
of the circuit accessed)
102059
A
E
B
F
"Mapped"
AID
AID
Single TAP
