Chapter 2 Procedures and Provisioning
2.4.11 Node 1 Configuration Example (Source Node)
Figure 2-47 shows a circuit diagram example of the orientation of AIDs associated with the ENT-CRS
command used to establish drop and continue connections.

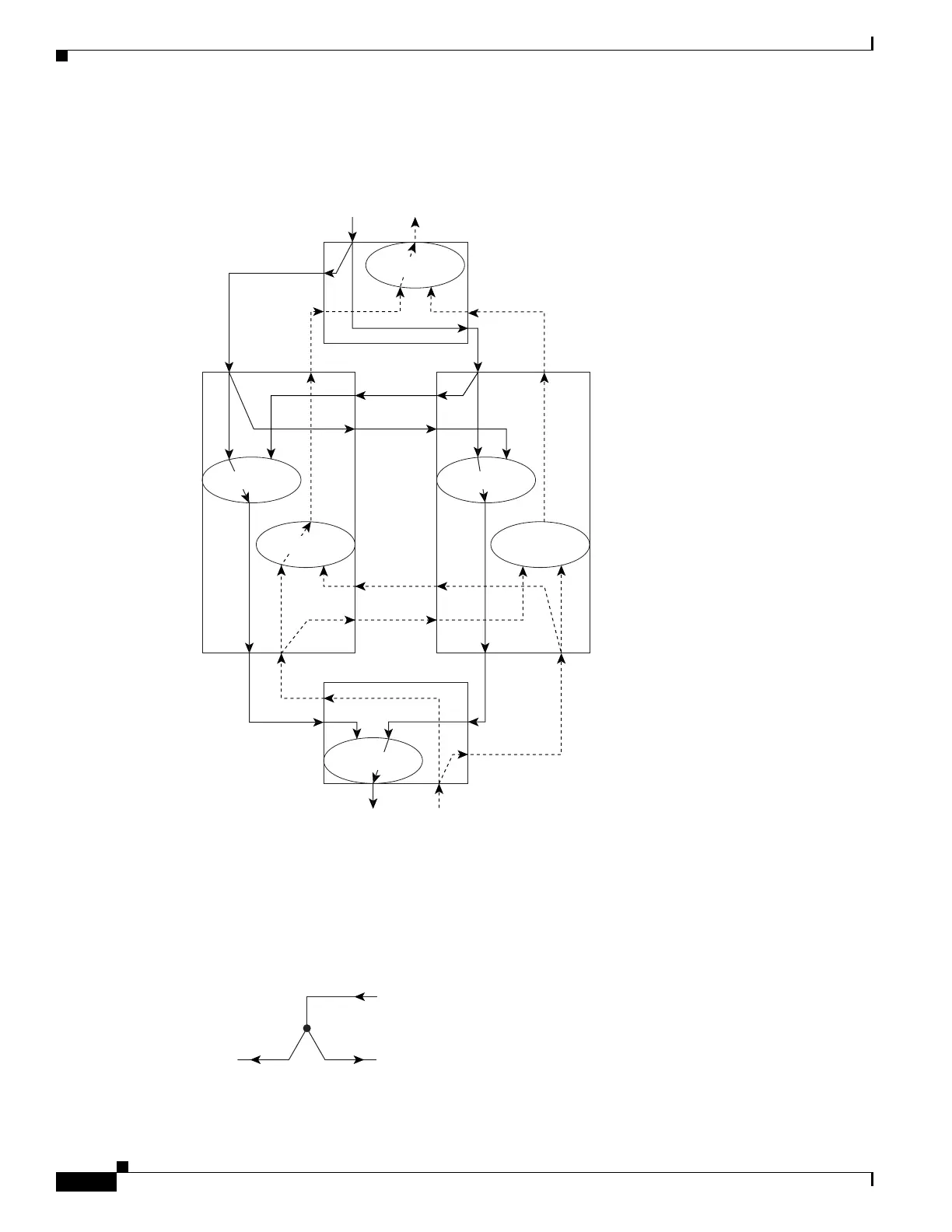

Figure 2-47 Orientation of AIDs Used to Establish Drop and Continue Connections
2.4.11 Node 1 Configuration Example (Source Node)
Issue the command ENT-CRS-STSn::STS-1-1,STS-5-1&STS-6-1:CTAG::1WAY; command on Node 1.
Figure 2-48 Bridge from 1/1/1 to 5/1/1 and 6/1/1
124233
A
C
B
D
Path Selector
Path Selector
Path Selector
Path Selector
Path Selector
Path Selector
61313
1/1/1
Rx
6/1/1
Tx
5/1/1
Tx
Bridge
