2-33

Cisco ONS SONET TL1 Command Guide, R6.0

Chapter 2 Procedures and Provisioning

2.4.4 Path Protection to Path Protection Connection Example

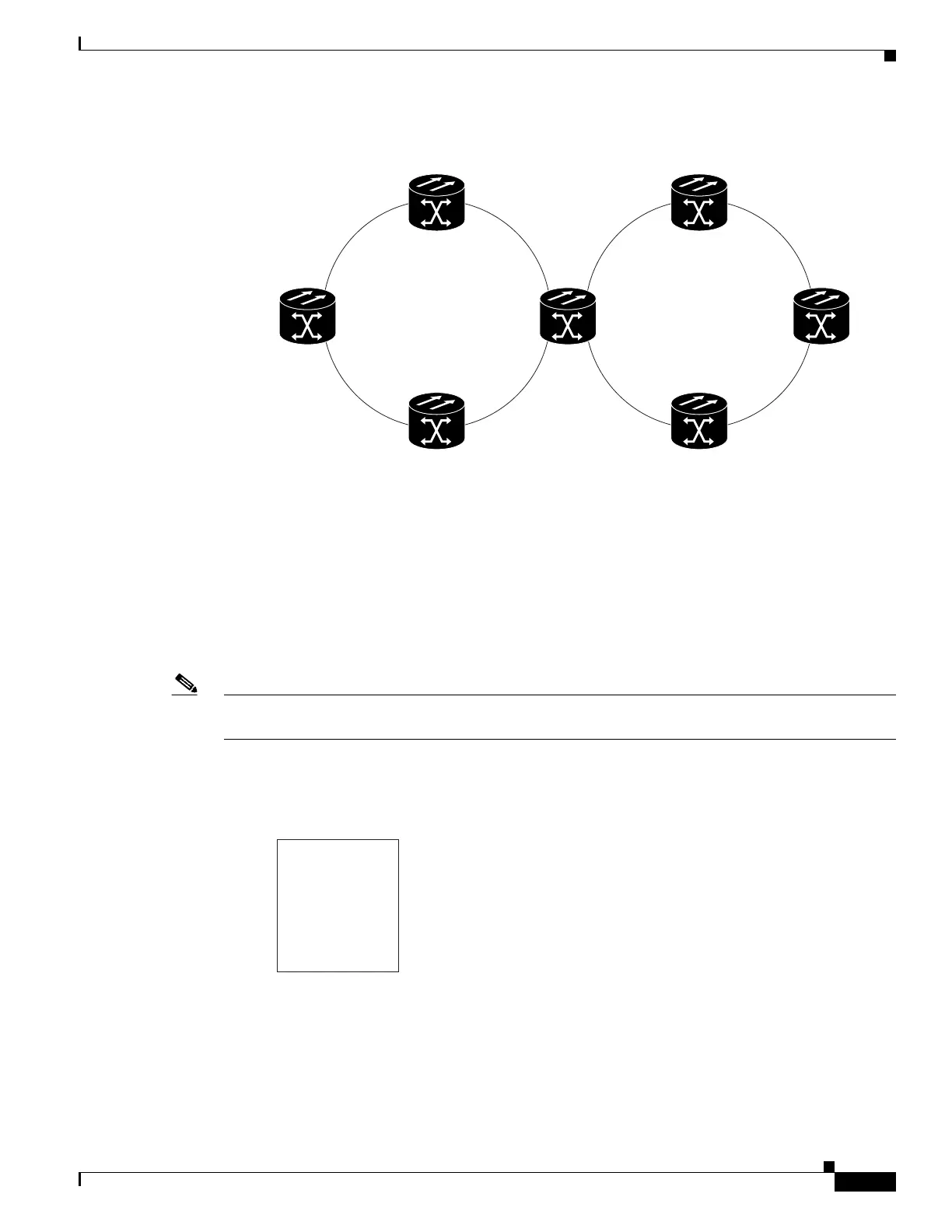

Figure 2-29 Network Map With Cisco Node Showing Ring-to-Ring Interconnection

2.4.4 Path Protection to Path Protection Connection Example

Ring 1 = Path Protection

Ring 2 =

Path Protection

This example, illustrated in Figure 2-30, uses an OC-3-4 card to feed Ring 2. Ring 1 can have any OC-N

trunk card, but the trunk card is most likely a single-port OC-48 or OC-12.

Note The STS calculation formula is: (((Port # -1)*Number of STS per port)+STS#).

STS 12/3/2 maps to STS-12-8 (((3-1)*3) +2).

Figure 2-30 Path Protection-to-Path Protection Connection Specifications Through the Cisco

Node

Node F

Node

Cisco

Node E

Node D

Path Protection

Configuration

or

2F BLSR

51346

Node A

Node C

Node B

Path Protection

Configuration

or

2F BLSR

Node Cisco

Path Protection

configuration 1

Path Protection

configuration 2

West5/1/1 East 6/1/1

West12/3/2 East 13/3/2

51347
