2.4.9 Path Protection to Four-Fiber BLSR Connection Example (ONS 15454)
2.4.9 Path Protection to Four-Fiber BLSR Connection Example (ONS 15454)
Ring 1 = Path Protection
Ring 2 = Four-fiber BLSR
This example uses the west span of the four-fiber BLSR (Ring 2) for the active path of the circuit. The
example also assumes that the four-fiber BLSR travels over OC-192 spans, as shown in Figure 2-43.

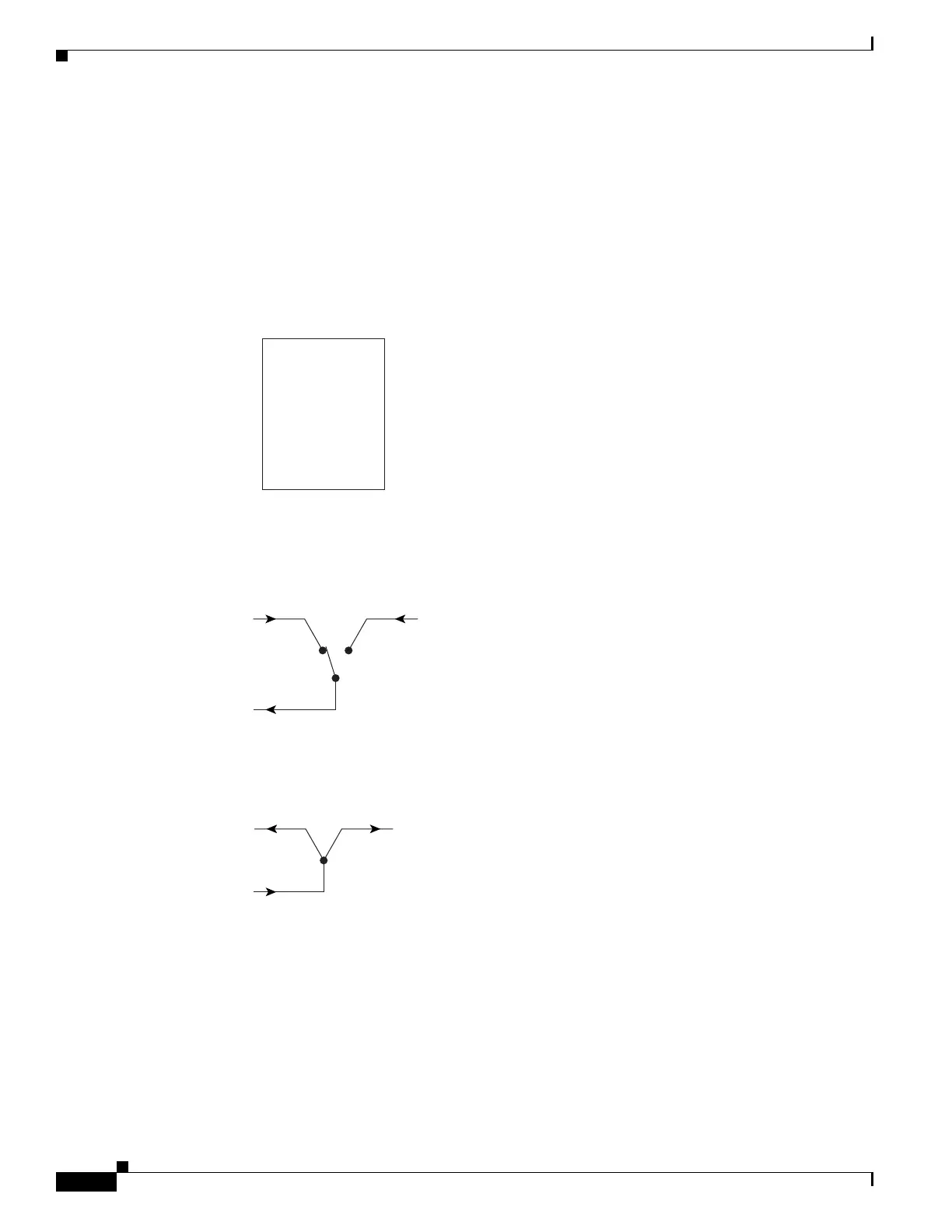

Figure 2-43 Path Protection to Four-Fiber BLSR
Use the command ENT-CRS-STS1:CISCO:STS-1-1&STS-2-1&STS-5-190:CTAG6::2WAY;
to create a selector between 1/1/1 and 2/1/1 to Ring 2 (5/1/190), as shown in Figure 2-44.
Figure 2-44 Selector Between 1/1/1 and 2/1/1 to Ring 2 (5/1/190)
The command also creates a bridge from 5/1/190 to Ring 1 (1/1/1 and 2/1/1), as shown in Figure 2-45.
Figure 2-45 Bridge From 5/1/190 to Ring 1 (1/1/1 and 2/1/1)
Node Cisco
UPSR RING 1
4F BLSR RING 2
West1/1/1 East 2/1/1
West
work
5/1/190 East
work
12/1/190
West
prot
6/1/190 East
prot
13/1/190
51360
51362
1/1/1
Rx
2/1/1
Rx
Selector
5/1/190
51361
1/1/1
Tx
2/1/1
Tx
5/1/190
Rx
