109
Chapter 6: Configuring VLANs
Defining Interface Settings
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
6
– Trunk — The port belongs to VLANs in which all ports are tagged (except for an optional
single native VLAN).
• PVID — Assigns a VLAN ID to untagged packets. The possible values are 2 to 4094. VLAN 4095
is defined as per standard and industry practice as the discard VLAN. Packets classified to the
Discard VLAN are dropped.
• Frame Type — Packet type accepted on the port. Possible values are:
– Admit Tag Only — Indicates that only tagged packets are accepted on the port.
– Admit All — Indicates that both tagged and untagged packets are accepted on the port.
• Ingress Filtering — Enables or disables Ingress filtering on the port. Ingress filtering discards
packets which do not include an ingress port.
2. Define the relevant fields.
3. Click Apply. The VLAN Interface Settings are defined, and the device is updated.
Modifying VLAN Interface Settings
1. Click Bridging > VLAN Management > Interface Setting. The VLAN Interface Setting Page
opens:
2. Click the Edit button. The VLAN Interface Settings Page opens:

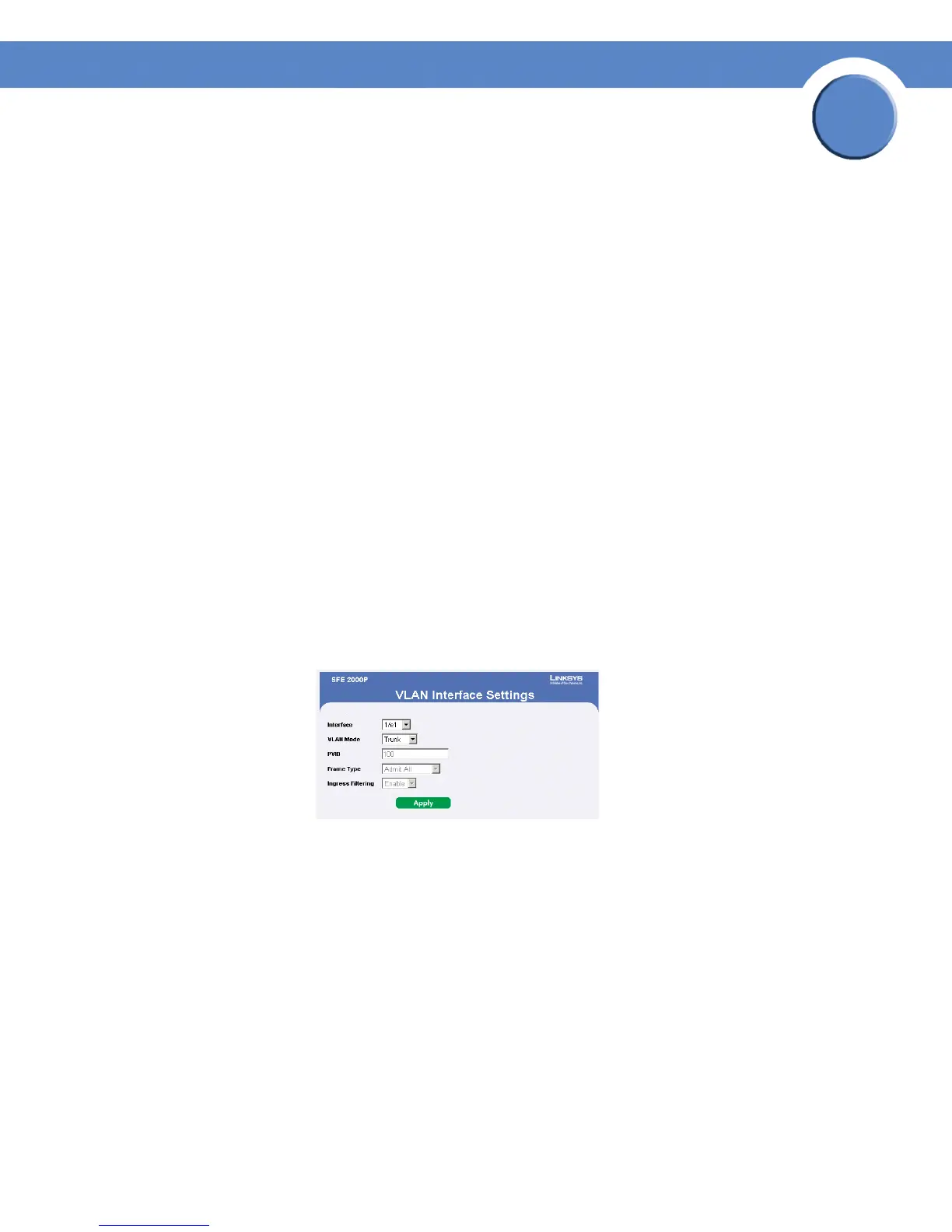

VLAN Interface Settings Page
The VLAN Interface Settings Page contains the following fields:
• Interface — The port number included in the VLAN.
• VLAN Mode — Indicates the port mode. Possible values are:
– General — The port belongs to VLANs, and each VLAN is user-defined as tagged or
untagged (full 802.1Q mode).
– Access — The port belongs to a single untagged VLAN. When a port is in Access mode, the
packet types which are accepted on the port (packet type) cannot be designated. It is also not
possible to enable/disable ingress filtering on an access port.
– Trunk — The port belongs to VLANs in which all ports are tagged (except for an optional
single native VLAN).
