Chapter 7: Configuring IP Information
Configuring Layer 2
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
7
• MAC Address — Indicates the station MAC address, which is associated in the ARP table with the
IP address.
• Status — Indicates the ARP Table entry status. Possible field values are:
– Dynamic — Indicates the ARP entry was learned dynamically.
– Static — Indicates the ARP entry is a static entry.
2.
Click on the Add ARP button. The ARP Settings Page opens:

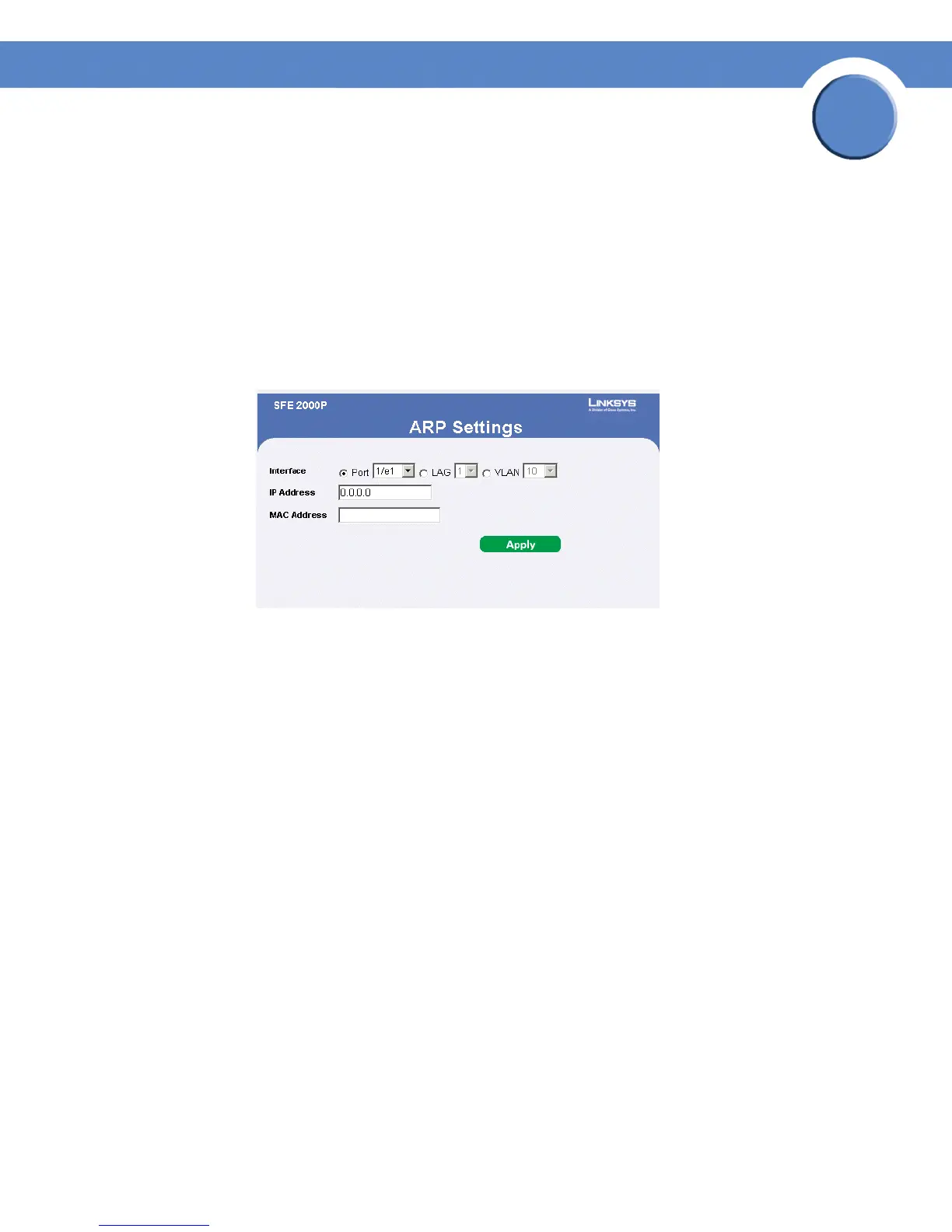

ARP Settings Page
The ARP Settings Page contains the following fields:
• Interface — Indicates the interface connected to the device.
• IP Address — Indicates the station IP address, which is associated with the MAC address filled in
below.
• MAC Address — Indicates the station MAC address, which is associated in the ARP table with the
IP address.
3. Define the relevant fields.
4. Click Apply. The ARP Settings are defined, and the device is updated.
Modifying ARP Settings
1. Click System > System Management > IP Addressing > ARP. The ARP Page opens:
2. Click the Edit button. The ARP Settings Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
