Cisco SGE2000 User Manual

130
Chapter 7: Configuring IP Information
Configuring Layer 3
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
7

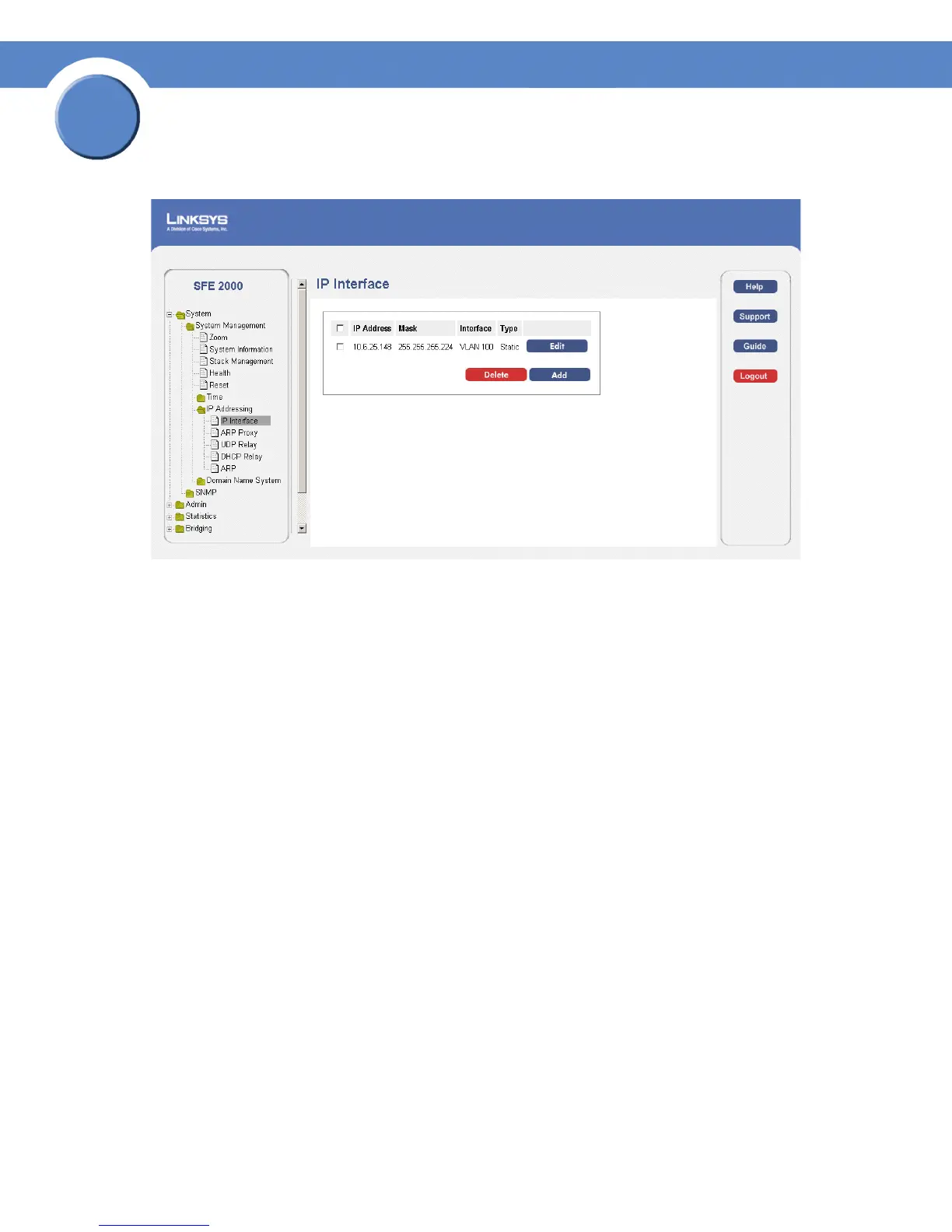

IP Interface Page
The IP Interface Page contains the following fields.
• IP Address — Defines the system IP address.
• Mask — Displays the currently configured IP address mask.
• Interface — Indicates the interface connected to the device.
• Type — Indicates if the IP address has been configured statically or added dynamically.
• Remove — Removes the selected IP address from the interface. The possible field values are:
– Checked — Removes the IP address from the interface.
– Unchecked — Maintains the IP address assigned to the Interface.
A table containing the IP Interface configurations is displayed containing the following fields:
• IP Address — Defines the system IP address.
• Mask — Displays the currently configured IP address mask.
• Interface — Displays the interface used to manage the device.
2. Click the Add button. The Add IP Interface Page opens:
The Add IP Interface Page allows network managers to create new system IP addresses.

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
