Chapter 12: Configuring Quality of Service
Defining General Settings
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
12
Bandwidth Page
The Bandwidth Page contains the following fields:
• Port — Indicates the port for which the bandwidth settings are displayed.
• LAG — Indicates the LAG for which the bandwidth settings are displayed.
• Of Unit — Displays the stacking member for which the bandwidth settings are displayed.
• Ingress Rate Limit Status — Indicates if rate limiting is defined on the interface. The possible field
values are:
– Enable — Enables ingress rate limiting on the interface.
– Disable — Disables ingress rate limiting on the interface.
• Rate Limit — Defines the amount of bandwidth assigned to the interface. The possible field values
are 62-1000000 Kbps.
• Committed Information Rate (CIR) — Defines CIR as the queue shaping type. The possible field
value is 64-1,000,000 Kbs.
• Committed Burst Size (CbS) — Defines CBS as the queue shaping type. The possible field value is
4096-16,769,020 bits.
Note This field is not supported on FE ports.
Modifying Bandwidth Settings

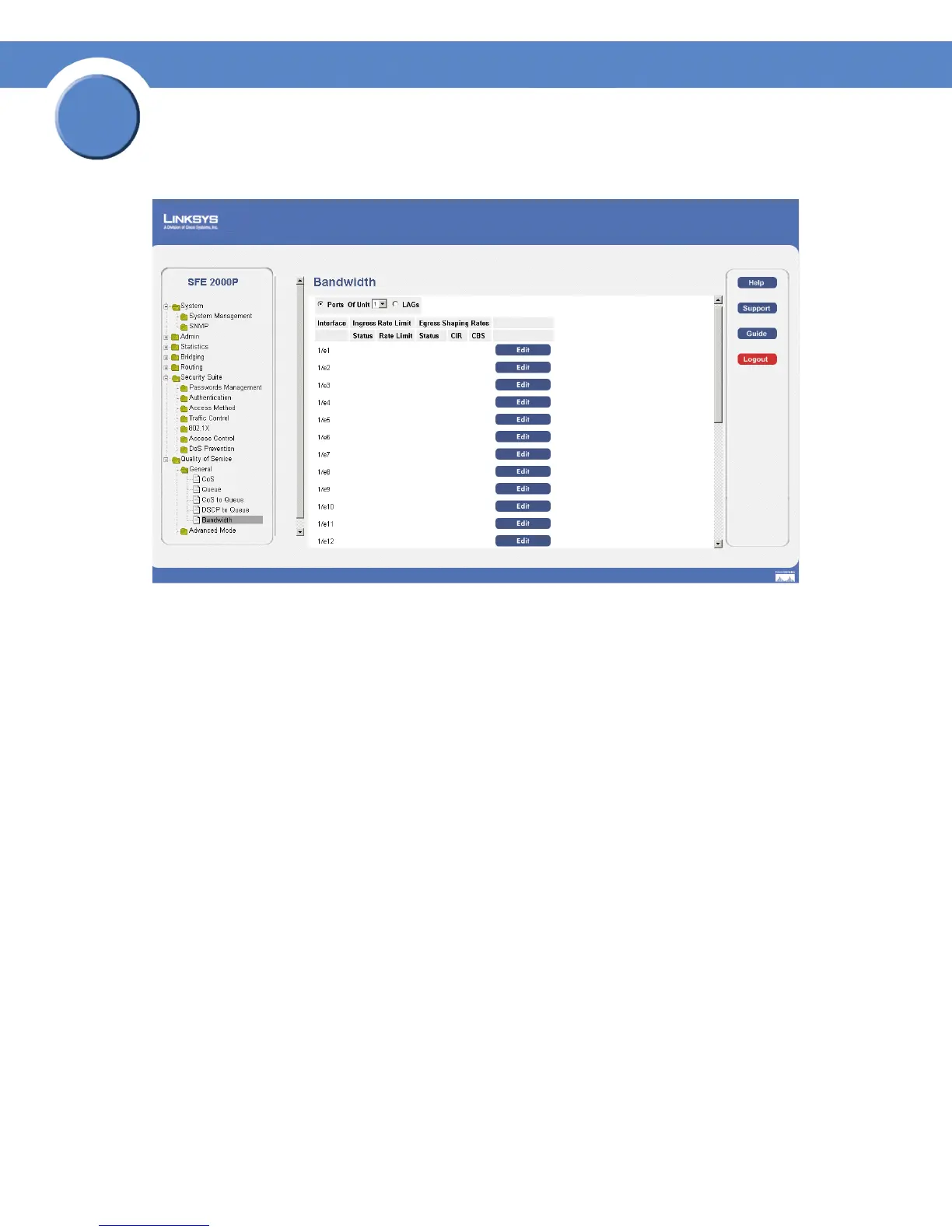

1. Click Quality of Service > General > Bandwidth. The Bandwidth Page opens:
