2. Click the Edit button. The Edit Bandwidth Page opens:

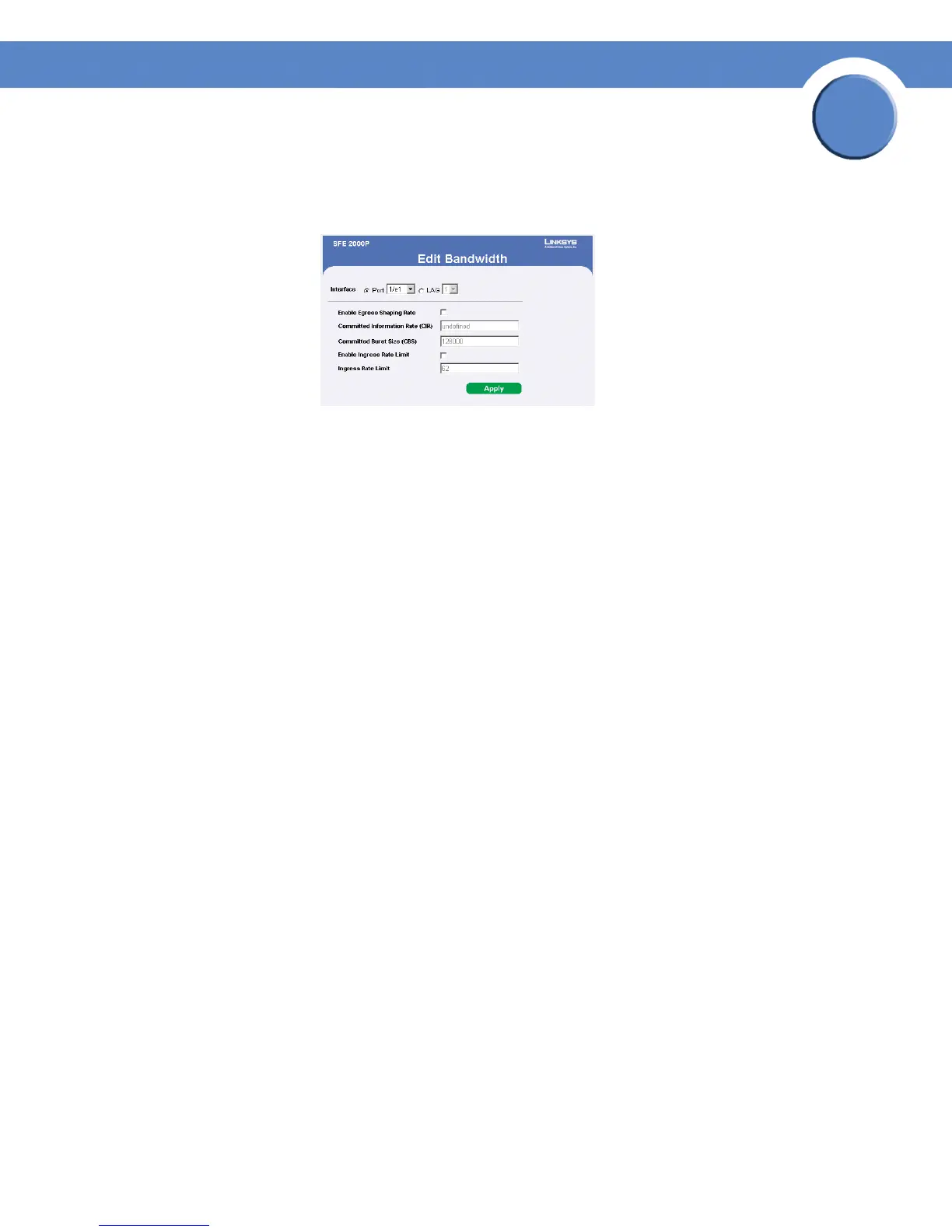

Edit Bandwidth Page
The Edit Bandwidth Page contains the following fields:
• Interface — Indicates the interface for which the queue shaping information is displayed. The
possible field values are:
– Port — Indicates the port for which the bandwidth settings are displayed.
– LAG — Indicates the LAG for which the bandwidth settings are displayed.
• Egress Shaping Rate on Selected Port — Indicates if rate limiting is enabled on the interface.
• Committed Information Rate (CIR) — Defines CIR as the queue shaping type. The possible field
value is 4096 - 1,000,000 Kbs.
Note This field is not supported on FE ports.
• Committed Burst Size (CbS) — Defines CBS as the queue shaping type. The possible field value is
4096-16,769,020 bits.
• Ingress Rate Limit Status — Indicates if rate limiting is defined on the interface. The possible field
values are:
– Enable — Enables ingress rate limiting on the interface.
– Disable — Disables ingress rate limiting on the interface.
• Ingress Rate Limit — Defines the amount of bandwidth assigned to the interface. The possible field
values are 62-1000000 Kbps.
3. Modify the relevant fields.
4. Click Apply. The bandwidth settings are modified, and the device is updated.
