Cisco SGE2000 User Manual

261
Chapter 16: Viewing Statistics
Managing RMON Statistics
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
16

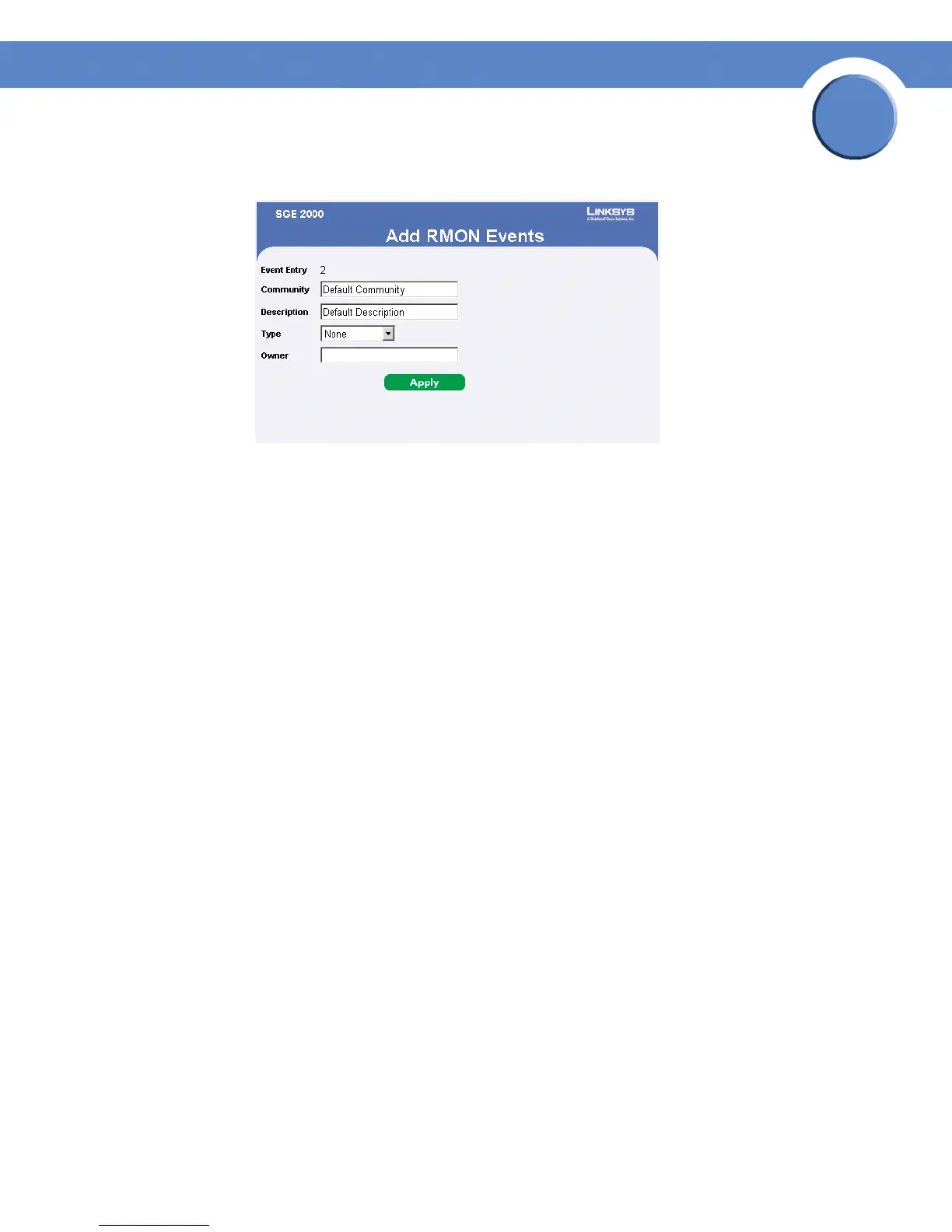

Add RMON Events Page
The Add RMON Events Page contains the following fields:
• Event Entry — Displays the event.
• Community — Displays the community to which the event belongs.
• Description — Displays the user-defined event description.
• Type — Describes the event type. Possible values are:
– None — Indicates that no event occurred.
– Log —Indicates that the event is a log entry.
– Trap — Indicates that the event is a trap.
– Log and Trap — Indicates that the event is both a log entry and a trap.
• Owner — Displays the device or user that defined the event.
3. Define the relevant fields.
4. Click Apply. The RMON event is added, and the device is updated.
Modify Event Control Settings
1. Click Statistics > RMON > Events. The RMON Events Page opens:
2. Click Edit. The Modify Event Control Settings Page opens:

Cisco SGE2000 Specifications

General

Jumbo Frame Support	9KB
VLANs	Up to 256
Management	Web-based, SNMP, CLI
Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1D, 802.1Q, 802.1p, 802.1w
Dimensions	440 x 44 x 257 mm
Power Supply	100 to 240V AC, 50-60 Hz
Operating Temperature	0°C to 40°C
Storage Temperature	-20 to 70°C (-4 to 158°F)
Humidity	10% to 90% non-condensing
Weight	3.2 kg
