273
Chapter 17: Managing Device Diagnostics
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
17
• Destination Port — Defines the port to which traffic is mirrored.
• Type — Indicates the port mode configuration for port mirroring. The possible field values are:
– RxOnly — Defines the port mirroring on receiving ports. This is the default value.
– TxOnly — Defines the port mirroring on transmitting ports.
– Tx and Rx— Defines the port mirroring on both receiving and transmitting ports.
• Status — Indicates if the port is currently monitored. The possible field values are:
– Active — Indicates the port is currently monitored.
– notReady — Indicates the port is not currently monitored.
2. Click the Add button. The Add Port Mirroring Page opens:

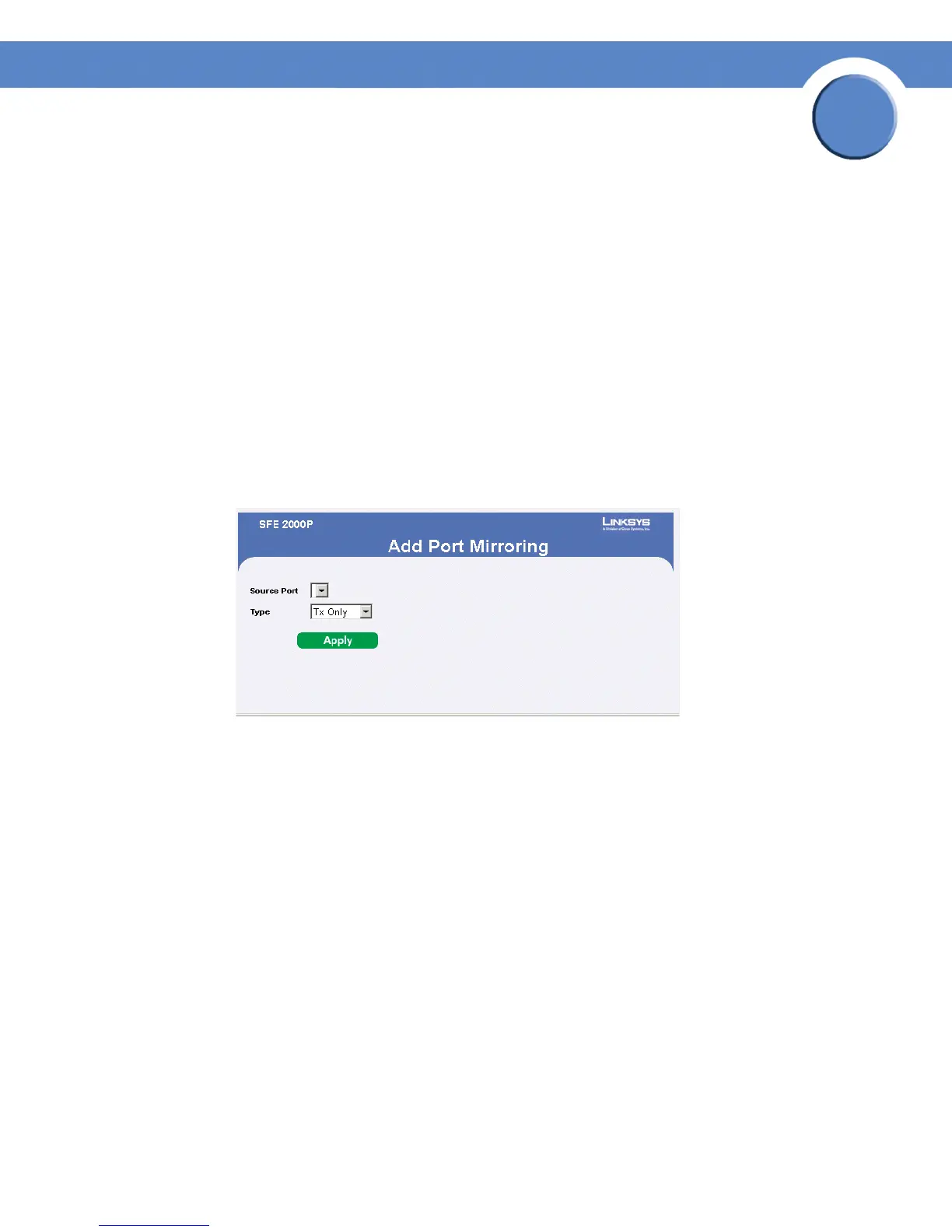

Add Port Mirroring Page
The Add Port Mirroring Page contains the following fields:
• Source Port — Defines the port to which traffic is mirrored.
• Type — Indicates the port mode configuration for port mirroring. The possible field values are:
– RxOnly — Defines the port mirroring on receiving ports. This is the default value.
– TxOnly — Defines the port mirroring on transmitting ports.
– Tx and Rx — Defines the port mirroring on both receiving and transmitting ports.
3. Define the relevant fields.
4. Click Apply. Port mirroring is added, and the device is updated.
Modifying Port Mirroring
1. Click Admin > Diagnostics > Port Mirroring. The Configuring Port Mirroring Page opens:
2. Click the Edit Button. The Edit Port Mirroring Page opens:
