274
Chapter 17: Managing Device Diagnostics
SGE2000/SGE2000P Gigabit Ethernet Switch Reference Guide
Chapter
17

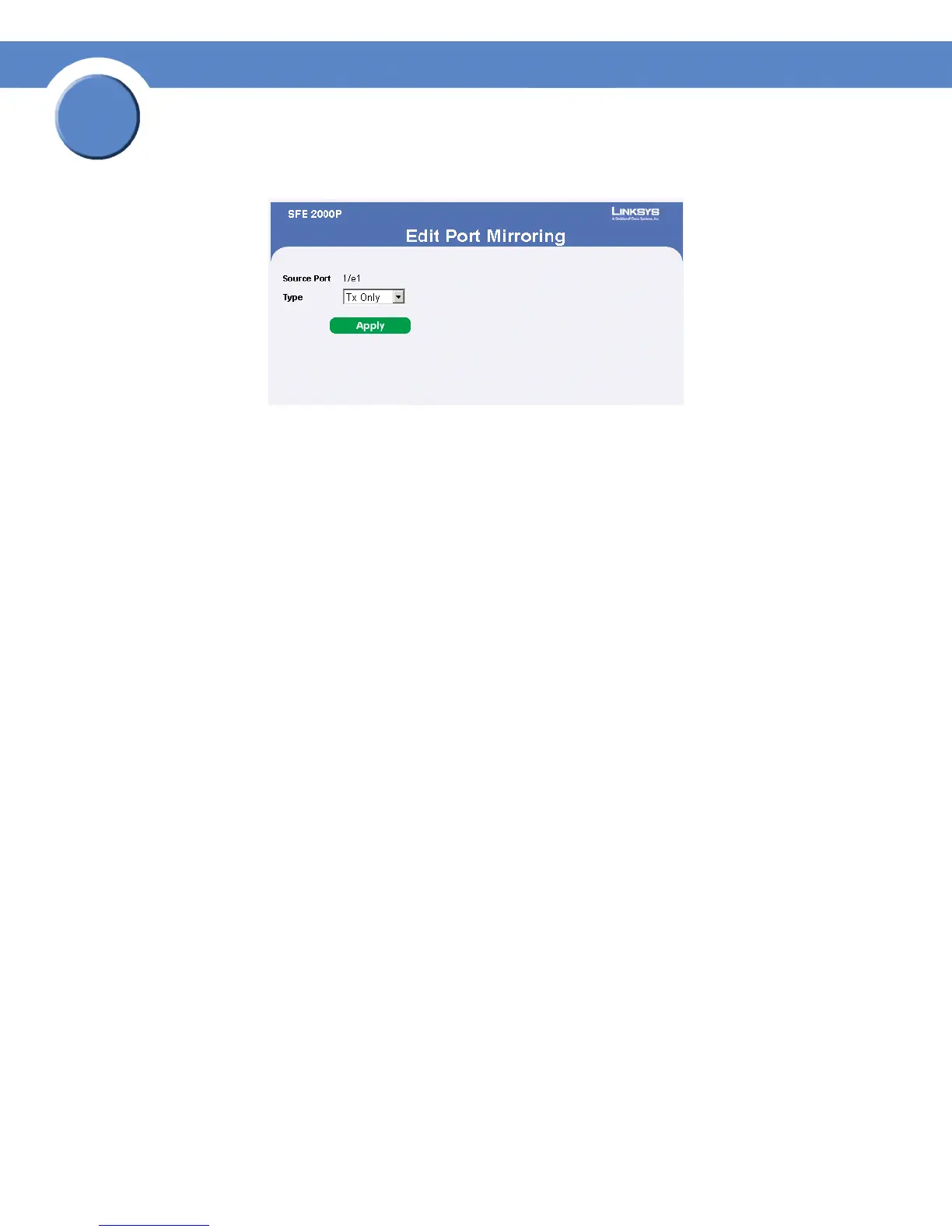

Edit Port Mirroring Page
The Edit Port Mirroring Page contains the following fields:
• Source Port — Defines the port to which traffic is mirrored.
• Type — Indicates the port mode configuration for port mirroring. The possible field values are:
– RxOnly — Defines the port mirroring on receiving ports. This is the default value.
– TxOnly — Defines the port mirroring on transmitting ports.
– Tx and Rx— Defines the port mirroring on both receiving and transmitting ports.
3. Define the relevant fields.
4. Click Apply. The Port mirroring is modified, and the device is updated.
