UNITY INSTALLATION GUIDE
128
Dialogic
D/120JCT-LS voice
Continued
board
Hardware settings
Do the following procedures as you install voice boards.

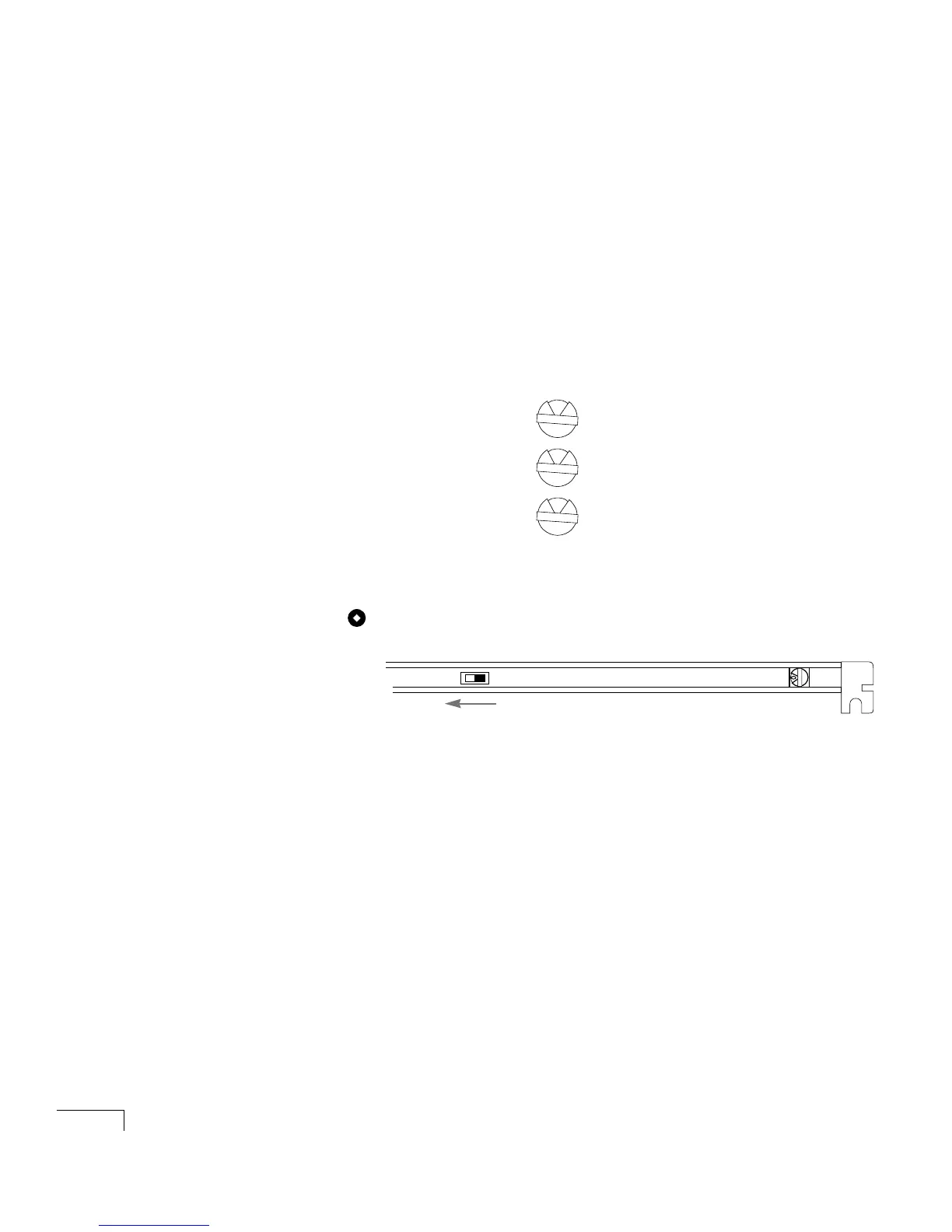

To set the SW100 switch
◆
For each Dialogic PCI voice board that has a rotary switch,
set the rotary switch to a unique value starting with 1 and
continuing in sequence.
For example, set the rotary switch on the first three PCI
voice boards in the Unity server as shown below. This is also
the order in which you install the boards in the server.
To set the SW1 switch
Set switch SW1 to “On hook” on all boards as shown below.
Software settings
None.
First PCI board
Second PCI board
Third PCI board
1
2
3
On hook
