Cisco Unity - Dialogic D;240 PCI-T1 Voice Board

UNITY INSTALLATION GUIDE
136
Dialogic
D/240PCI-T1
voice board

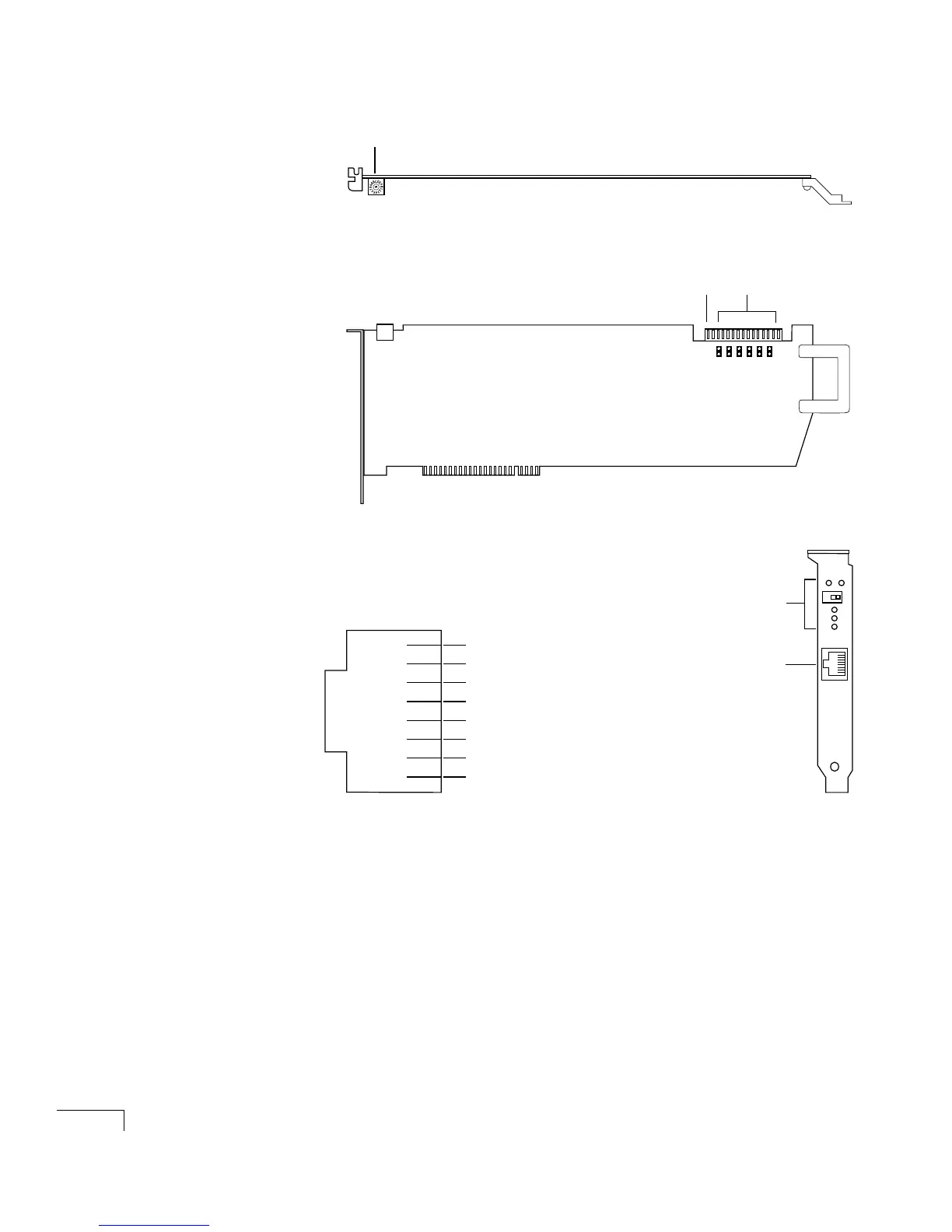

Switch SW100
Top v iew
Side view
Voice board
backplate
LED status
indicators
T1 trunk
interface
O
N
1
Pin 1: Receive ring
Pin 2: Receive tip
Pin 3: Chassis ground
Pin 4: Transmit ring
Pin 5: Transmit tip
Pin 6: Chassis ground
Pin 7: Chassis ground
Pin 8: Chassis ground
Connection pinouts
The D/240PCI-T1 uses an
RJ-48C connector.
JP2–JP7
CT bus connector
