Cisco Unity - D;160 Sc-Ls; Dialogic D;160 SC-LS Voice Board

UNITY INSTALLATION GUIDE
132

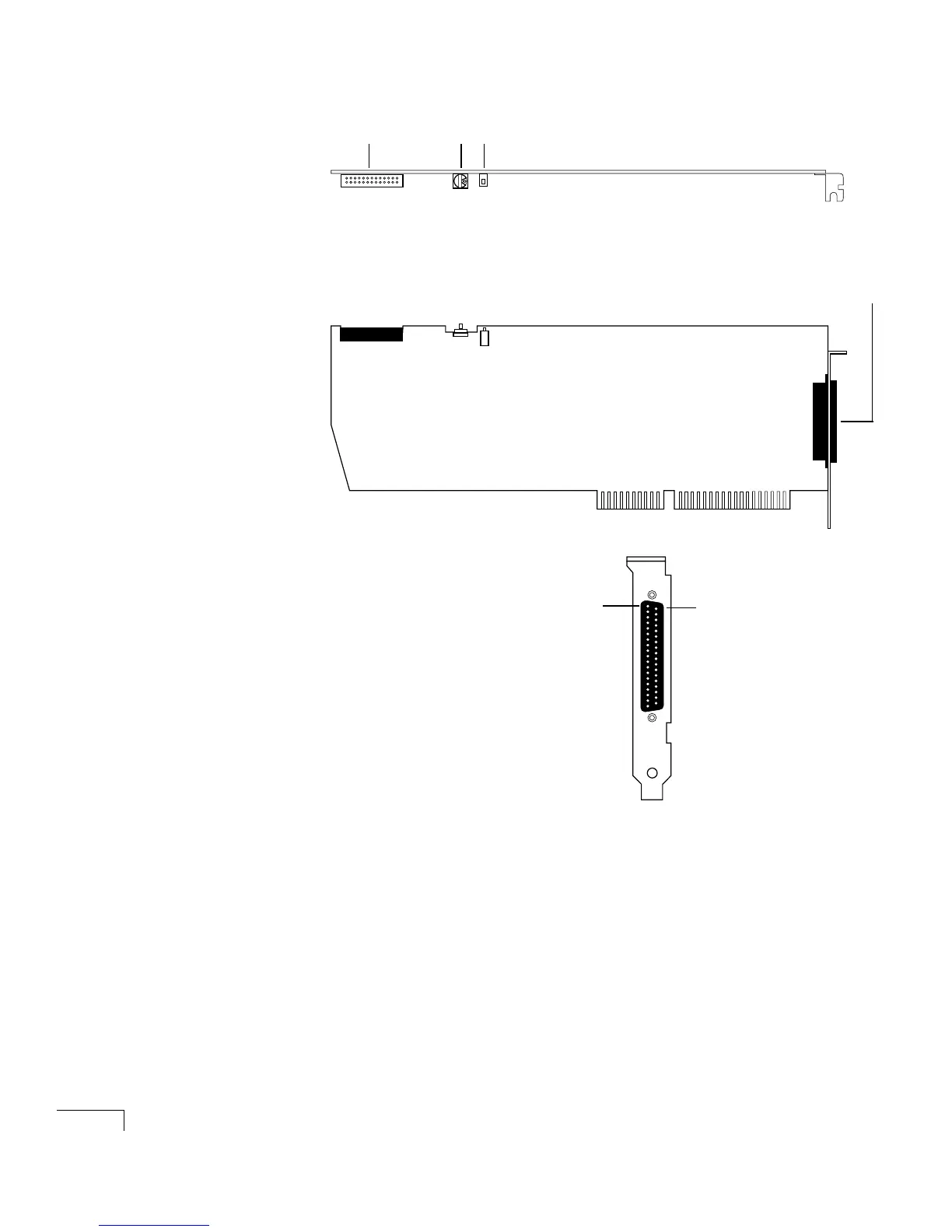

Dialogic
D/160SC-LS
voice board
SC bus
connector
Switch
SW100
Switch
SW600
DB-37 connector
Top v iew
Side view
Connection pinouts
The D/160SC-LS uses a DB-37
connector. See the table on the
next page for pinout information.
Pin 1
Pin 20
