Cisco Unity - Dialogic Gammalink CP4;LSI Series 2 (Cpi;400) Fax Board

UNITY INSTALLATION GUIDE
140
Dialogic
GammaLink
CP4/LSI
Series 2
(CPi/400)
fax board
Pin 3: First fax line tip
Pin 2: First fax line ring

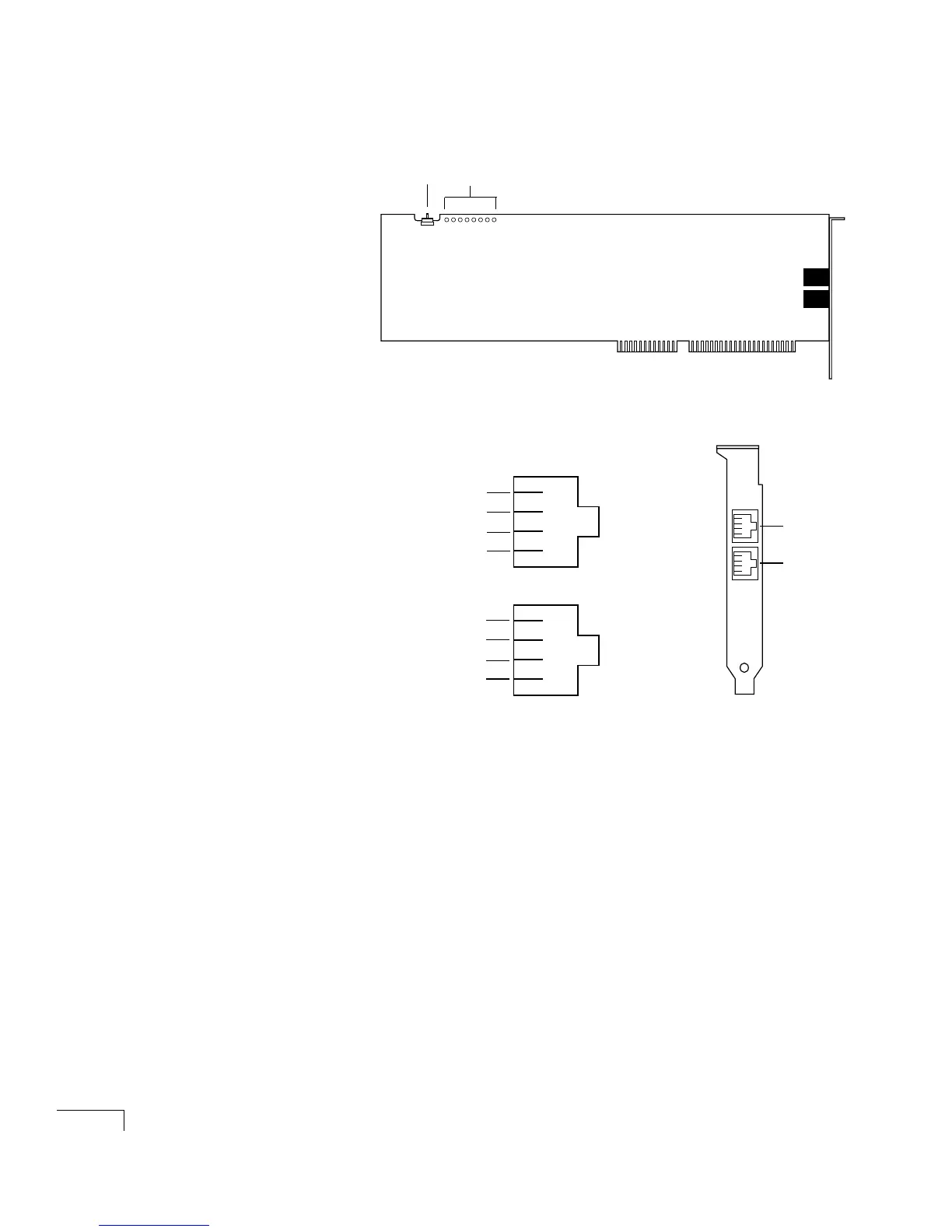

Connection pinouts
The CP4/LSI Series 2
uses RJ-11 connectors.
Pin 1: Second fax line tip
Pin 4: Second fax line ring
Pin 3: Third fax line tip
Pin 2: Third fax line ring
Pin 1: Fourth fax line tip
Pin 4: Fourth fax line ring
LED status indicators
Rotary switch
Fax board backplate
Lines 3 & 4
Lines 1 & 2
Side view
