Cisco Unity - Cpi;200 PCI; Dialogic Gammalink Cpi;200 PCI Fax Board

UNITY INSTALLATION GUIDE
146

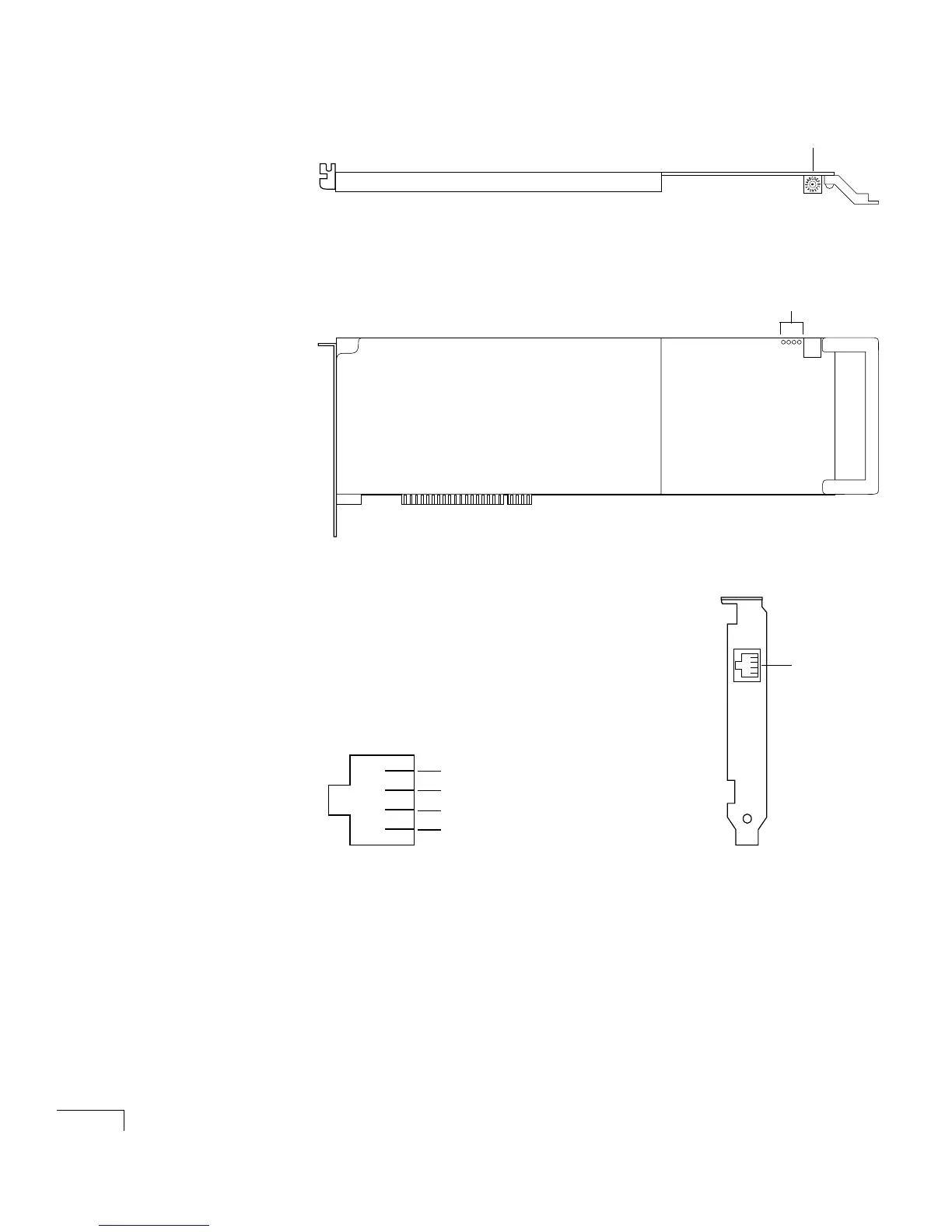

Dialogic
GammaLink
CPi/200 PCI
fax board
LED status indicators
Fax board backplate
Pin 3: First fax line tip
Pin 2: First fax line ring
Connection pinouts
The CPi/200 PCI uses
an RJ-11 connector.
Lines 1 & 2
Pin 1: Second fax line tip
Pin 4: Second fax line ring
Rotary switch
Side view
Top view
