Cisco Unity - Dialogic Gammalink Cpi;400 PCI Fax Board

UNITY INSTALLATION GUIDE
148
Dialogic
GammaLink
CPi/400 PCI
fax board

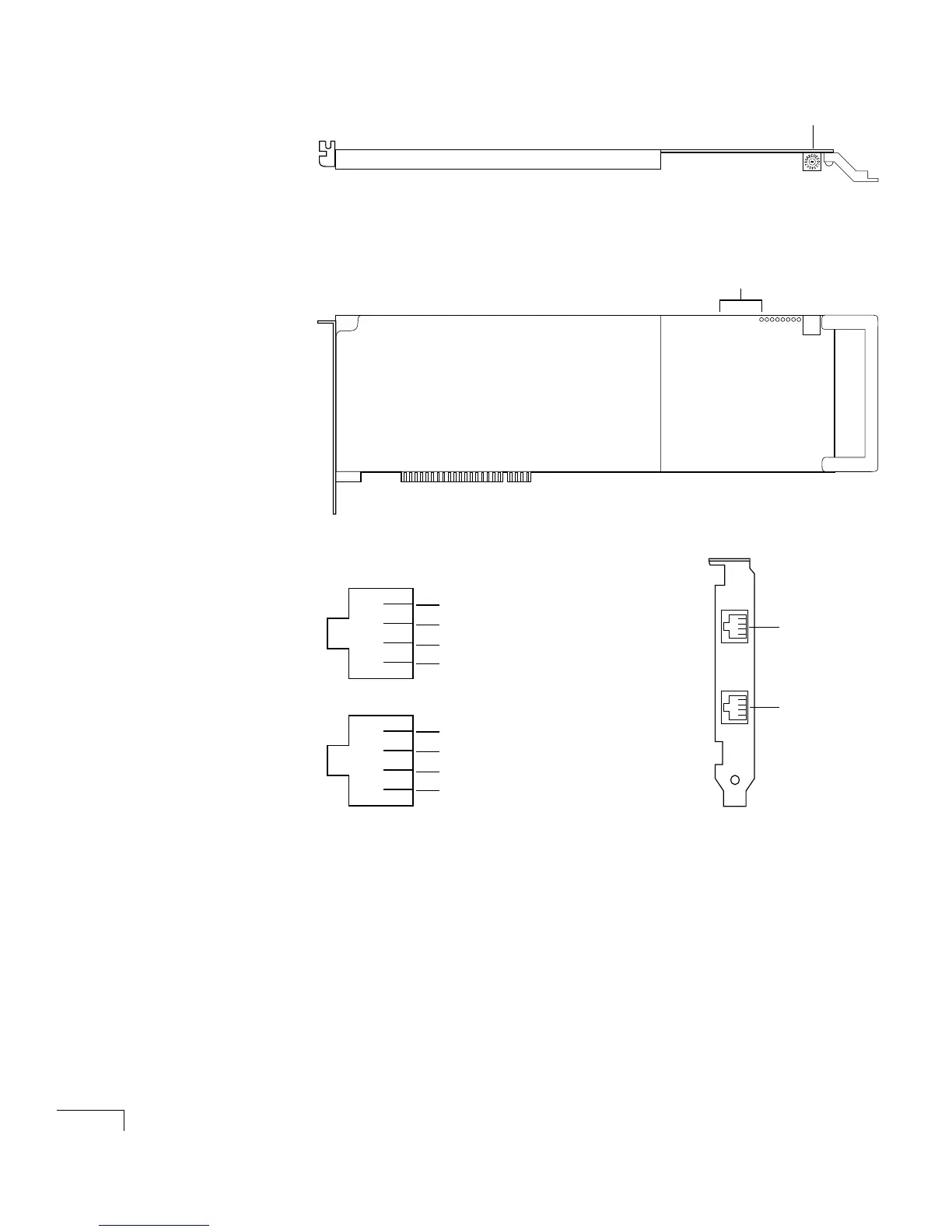

LED status indicators
Pin 3: First fax line tip
Pin 2: First fax line ring
Connection pinouts
The CPi/400 PCI uses
RJ-11 connectors.
Pin 1: Second fax line tip
Pin 4: Second fax line ring
Rotary switch
Pin 3: Third fax line tip
Pin 2: Third fax line ring
Pin 1: Fourth fax line tip
Pin 4: Fourth fax line ring
Fax board backplate
Lines 3 & 4
Lines 1 & 2
Side view
Top v iew
