Cisco Unity - Natural Microsystems AG 2000 Voice and Fax Board

UNITY INSTALLATION GUIDE
150

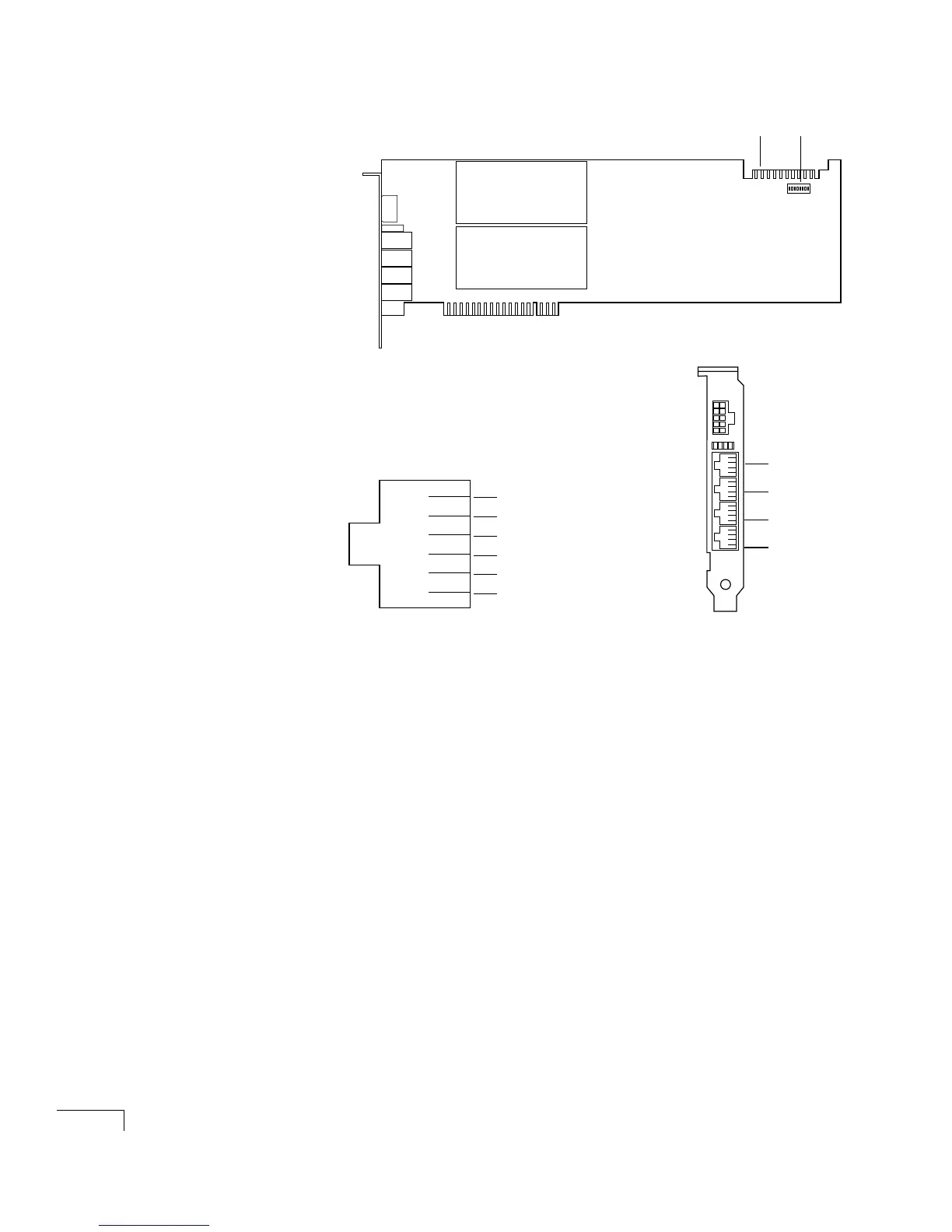

Natural
MicroSystems
AG 2000
voice and fax
board
Switch SW1H.100 bus connector
Voice board backplate
Lines 1 & 2
Lines 3 & 4
Lines 7 & 8
Pin 1: Not used
Pin 2: Tip 2
Pin 3: Ring 1
Pin 4: Tip 1
Pin 5: Ring 2
Pin 6: Not used
Connection pinouts
The AG 2000 uses
RJ-14 connectors.
Lines 5 & 6
Side view
