Cisco Unity - Natural Microsystems AG-T1 Voice Board

UNITY INSTALLATION GUIDE
154

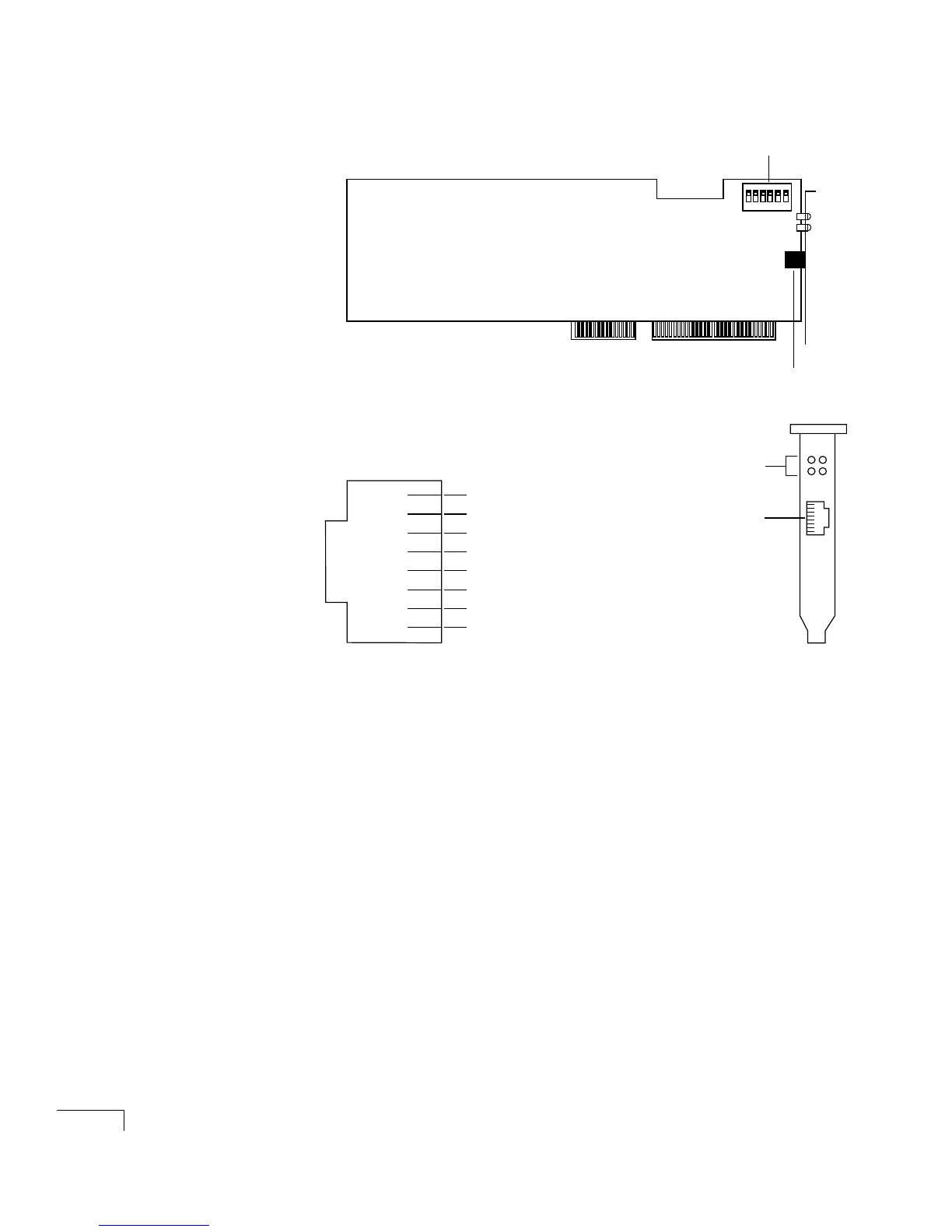

Natural
MicroSystems
AG-T1
voice board
1 2 3 4 5 6
On
I/O address DIP switch
T1 trunk interface
Side view
Pin 1: R – Receive from network
Pin 2: T – Receive from network
Pin 3: No connection
Pin 4: R1 – Transmit to network
Pin 5: T1 – Transmit to network
Pin 6: No connection
Pin 7: Optional shield (not used)
Pin 8: Optional shield (not used)
Voice board
backplate
Connection pinouts
The AG-T1 uses an RJ-48C connector.
LED status
indicators
T1 trunk
interface
