Cisco Unity - Dialogic Gammalink CPD;220 Fax Board

UNITY INSTALLATION GUIDE
142

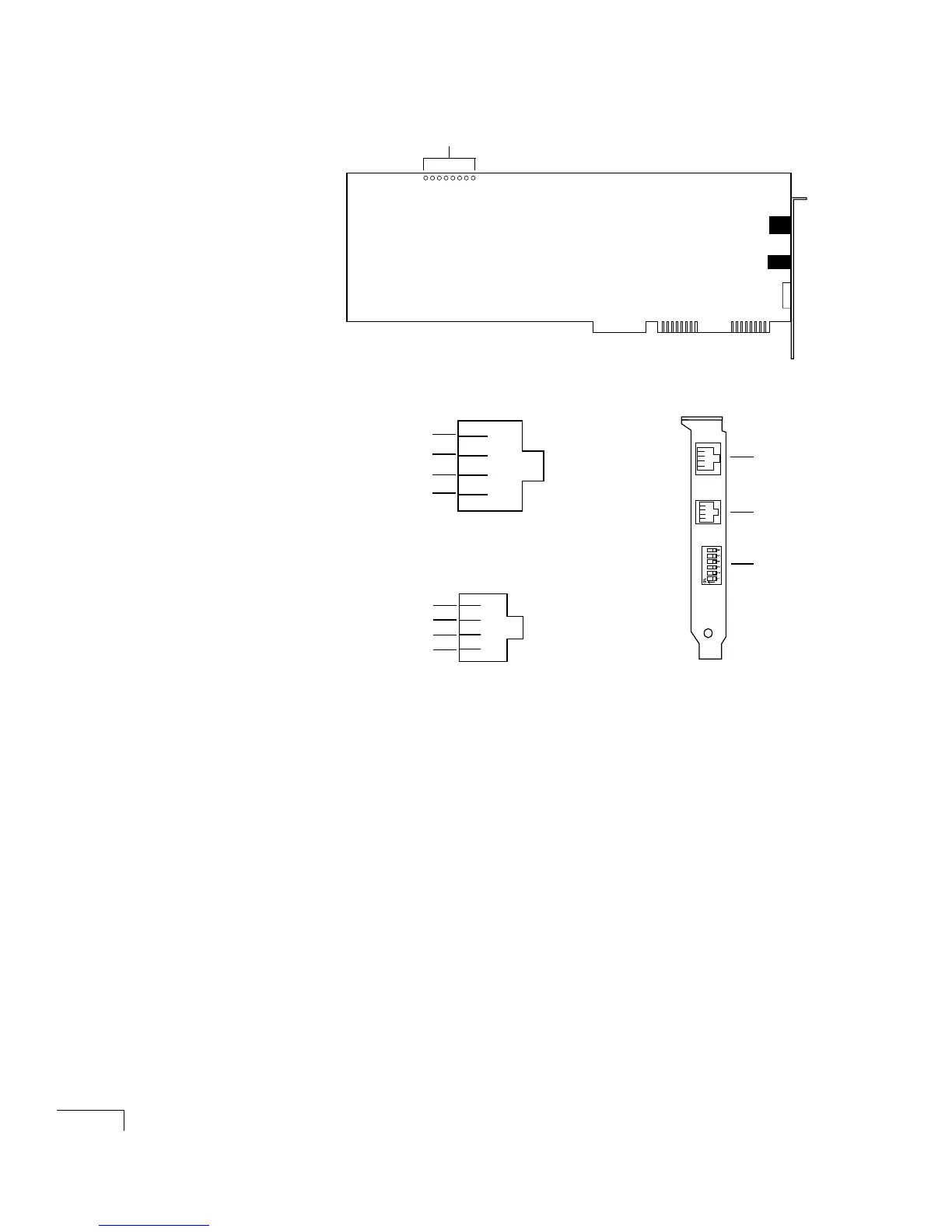

Dialogic
GammaLink
CPD/220
fax board
Fax board backplate
Pin 3: Tip 1
Pin 2: Ring 1
DID cable (miniature jack)
Miniature
jack
Pin 1: Ring 2
Pin 4: Tip 2
RJ-11
wall jack
LED status indicators
Pin 1: Ring 2
Pin 2: Ring 1
Pin 3: Tip 1
Pin 4: Tip 2
Switch block
SW1
LSI cable (RJ-11 wall jack)
Side view
