UNITY INSTALLATION GUIDE
134
Dialogic D/160SC-LS
Continued
voice board
Hardware settings
Do the following procedures as you install voice boards.
To set the SW100 switch
For each Dialogic ISA voice board that has a rotary switch,
set the rotary switch to a unique value starting with 0 and
continuing in sequence.

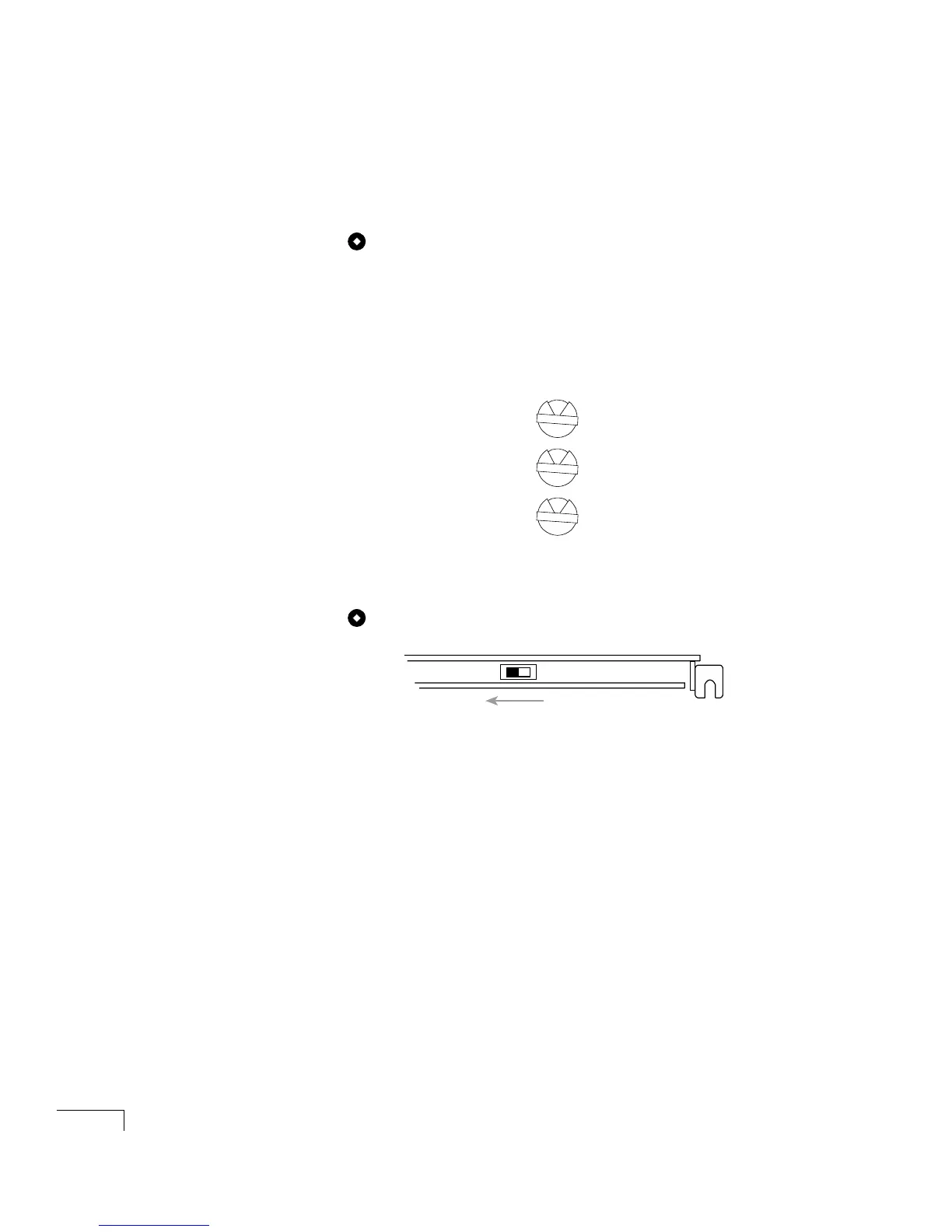

For example, set the rotary switch on the first three ISA
voice boards in the Unity server as shown below. This is also
the order in which you install the boards in the server.
To set the SW4 switch
Set switch SW4 to “Off hook” on all boards as shown below.
First ISA board
Second ISA board
Third ISA board
0
1
2
Off hook
