Citrix ADC MPX
procedure carefully to avoid damaging the transceiver or the appliance.
Install a transceiver
1. Remove the transceiver carefully from its box.
Danger: Do not look directly into fiber optic transceivers or cables. They emit laser beams that
can damage your eyes.
2. Align the transceiver to the front of the appropriate transceiver port on the front panel of the
appliance.
Note: The illustration in the following figures might not represent your actual appliance.

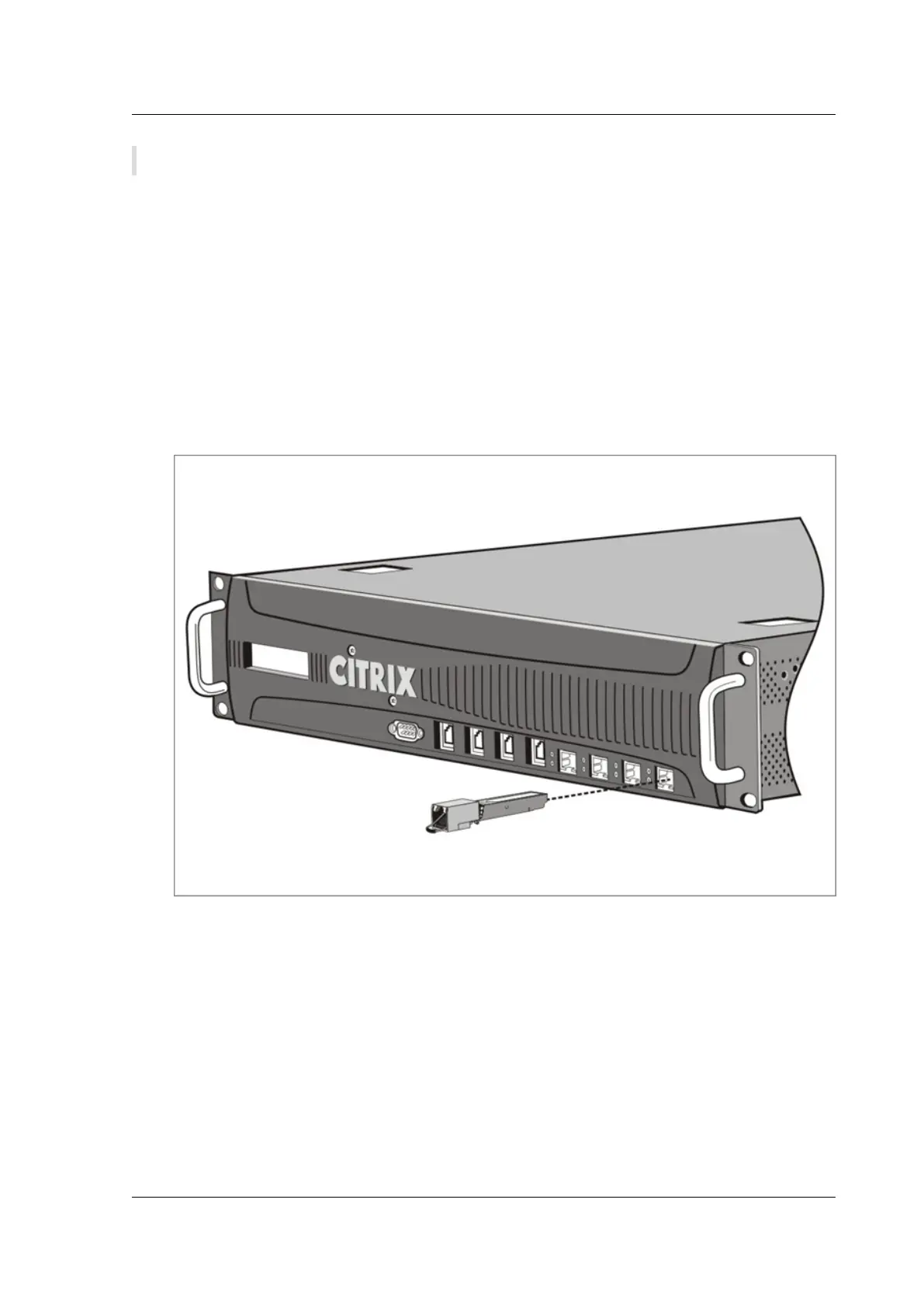

Figure 6. Install a transceiver
3. Hold the transceiver between your thumb and index finger and insert it into the transceiver port.
Press it in until you hear the transceiver snap into place.
4. Lock the transceiver.
5. Verify that the LED is green and blinks twice, which indicates that the transceiver is functioning
correctly.
6. If you are using a fiber transceiver, do not remove the dust caps attached to the transceiver and
the cable until you are ready to insert the cable.
