Citrix ADC MPX 17550, MPX 19550, MPX 20550, and MPX 21550
February 25, 2019
The Citrix ADC models MPX 17550, MPX 19550, MPX 20550, and MPX 21550 are 2U appliances. Each
model has two 6-core processors for a total of 12 physical cores (24 cores with hyper-threading), and
96 gigabytes (GB) of memory.
The following figure shows the front panel of the MPX 17550/19550/20550/21550 appliance.

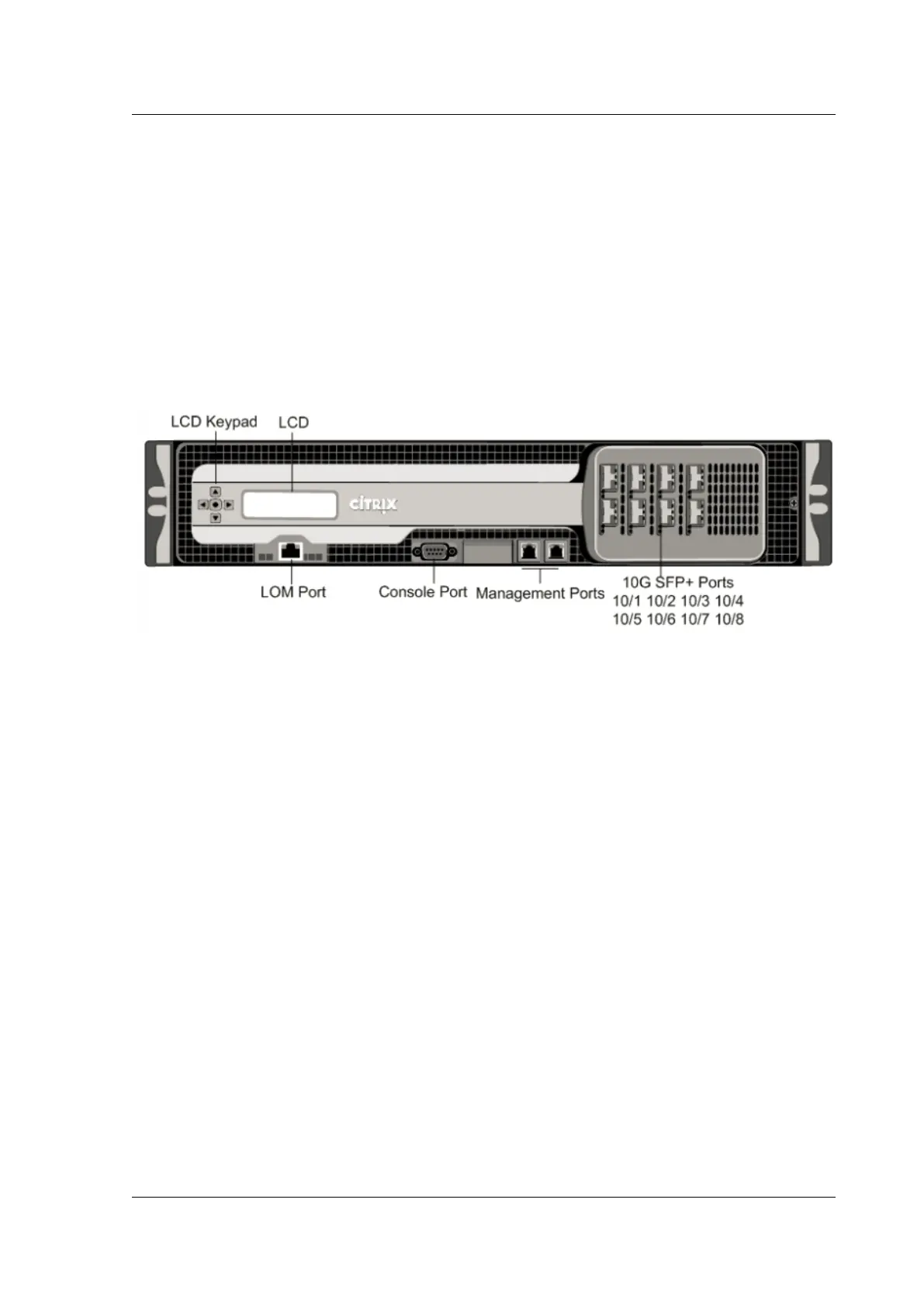

Figure 1. Citrix ADC MPX 17550/19550/20550/21550 appliance, front panel
The MPX 17550/19550/20550/21550 appliance has the following ports:
• 10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to re-
motely monitor and manage the appliance independently of the Citrix ADC soware.
Note: The LEDs on the LOM port are not operational by design.
• RS232 serial console port.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Eight 10G SFP+ ports numbered 10/1, 10/2, 10/3, and 10/4 on the top row from le to right, and
10/5, 10/6, 10/7, and 10/8 on the bottom row from le to right.
The following figure shows the back panel of the MPX 17550/19550/20550/21550 appliance.
Figure 2. Citrix ADC MPX 17550/19550/20550/21550 appliance, back panel
