LED Color LED Indicates
Flashing RED and GREEN Warning; (OVP/UVP/OCP/OTP/Fan); OVP = Over
Voltage Protection; UVP = Under Voltage
Protection; OCP = Over Current Protection
• Disable alarm button. Press this button to silence the power alarm when one of two power
supplies loses input power or when a power supply is malfunctioning.
• Non-Maskable Interrupt (NMI) Button, used at the request of Technical Support to initiate a core
dump. To press this red button, which is recessed to prevent unintentional activation, use a pen,
pencil, or other pointed object. The NMI Button is also available remotely over the network in
the LOM GUI, in the Remote Control menu. For more information about the lights out manage-
ment port of the appliance, see Lights out management port of the Citrix ADC MPX appliance.
Citrix ADC T1010
February 25, 2019
The Citrix ADC T1010 is a 1U appliance, with a single-core processor, and 32 GB of memory.
The following figure shows the front panel of the T1010 appliance.

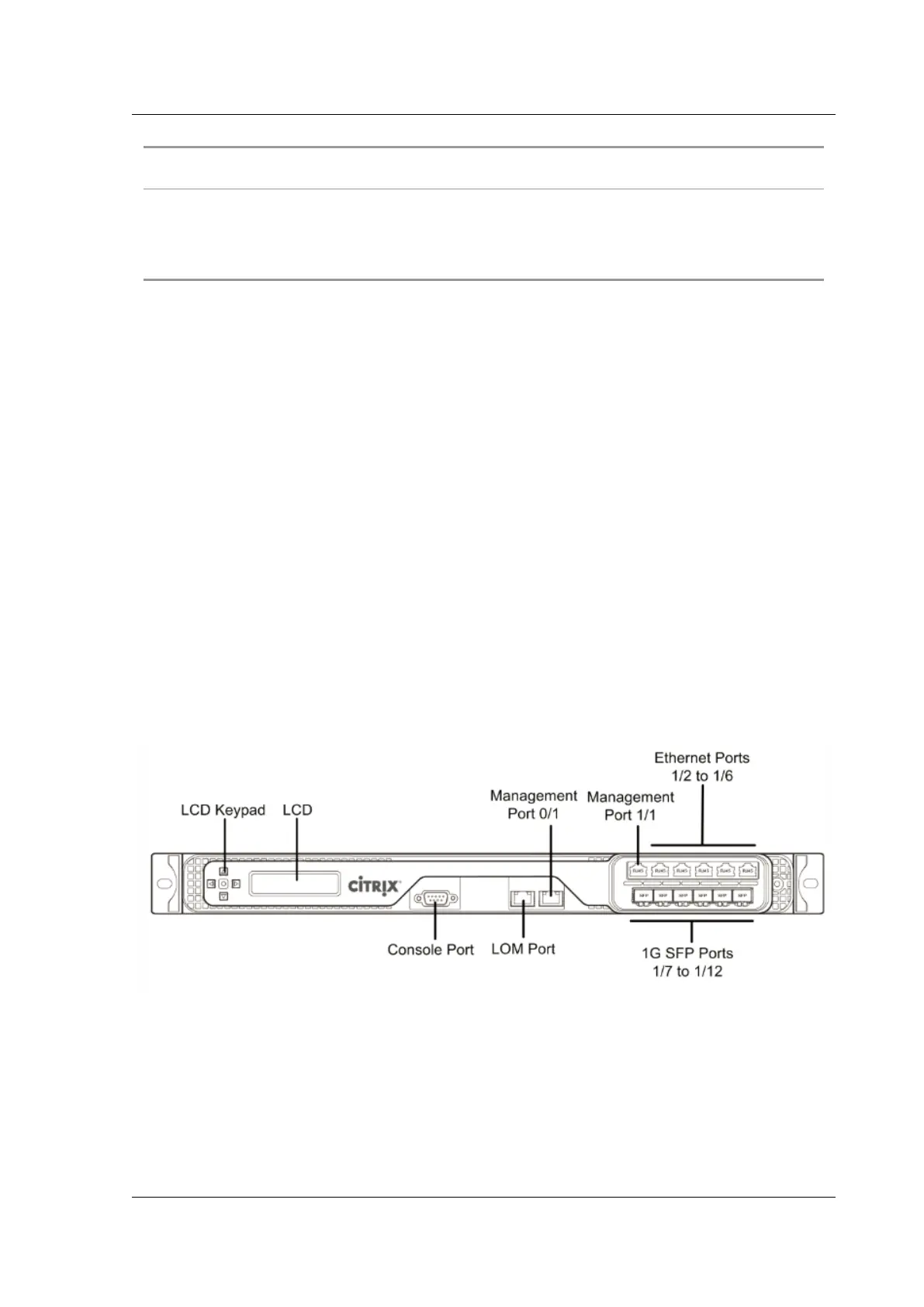

Figure 1. Citrix ADC T1010 front panel
The T1010 appliance has the following ports:
• Six 1000BASE-X SFP data plane ports
• Five 1GB RJ-45 data plane ports
• Two 10/100/1000BASE-T, RJ45 management plane ports
• One 10/100BASE-T, RJ-45 Lights-Out Management (LOM) ports
