Citrix ADC MPX Series User Manual

Citrix ADC MPX
Citrix ADC MPX 14xxx
October 25, 2019
The Citrix ADC MPX 14020/14030/14040/14060/14080/14100 are 2U appliances. Each model has two
6-core processors and 64 GB of memory and sixteen 10G SFP+ ports (16x10G SFP+).
For information about the soware releases supported on the Citrix ADC hardware platforms, see Cit-
rix ADC hardware soware support matrix.
The following figure shows the front panel of the MPX 14020/14030/14040/14060/14080 (16x10G SFP+)
appliance.

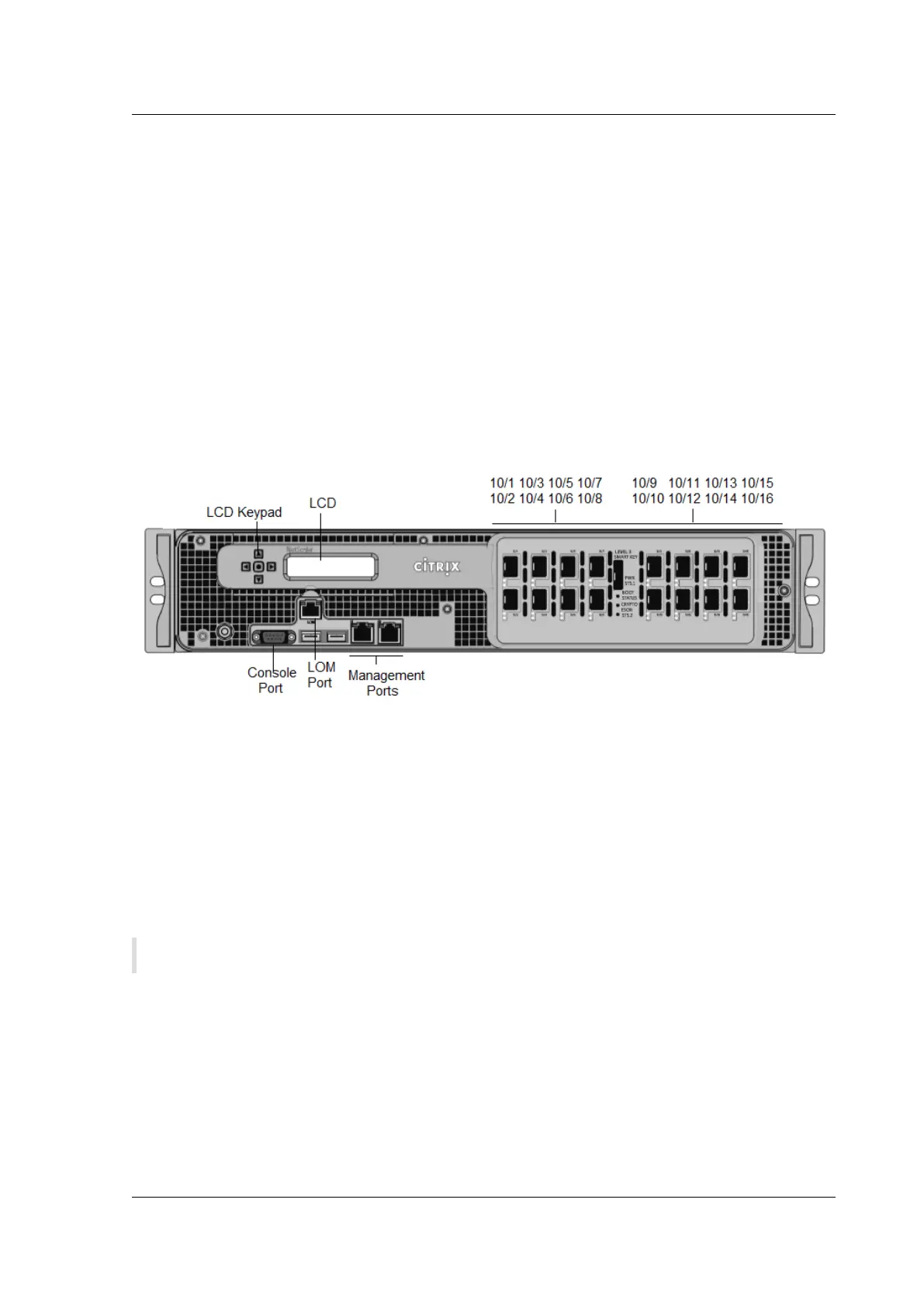

Figure 1. Citrix ADC MPX 14020/14030/14040/14060/14080/14100 (16x10G SFP+), front panel
The Citrix ADC MPX 14020/14030/14040/14060/14080/14100 appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet Management Ports (RJ45), numbered 0/1and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, sixteen 10G SFP+ ports (16x10G SFP+).
Note: The 10G SFP+ ports on these appliances support copper 1G SFP transceivers.
The following figure shows the back panel of the MPX 14020/14030/14040/14060/14080/ 14100 appli-
ance.
Figure 2. Citrix ADC MPX 14020/14030/14040/14060/14080/14100, back panel
© 1999-2019 Citrix Systems, Inc. All rights reserved. 46

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
