Citrix ADC MPX Series User Manual

Citrix ADC MPX
Citrix ADC MPX 11500, MPX 13500, MPX 14500, MPX 16500, MPX 18500,
and MPX 20500
February 25, 2019
The Citrix ADC models MPX 11500/13500/14500/16500/18500/20500 are 2U appliances. Each model
has two 6-core processors for a total of 12 physical cores (24 cores with hyper-threading), and 48 giga-
bytes (GB) of memory.
The following figure shows the front panel of the MPX 11500/13500/14500/16500/18500/20500 appli-
ance.

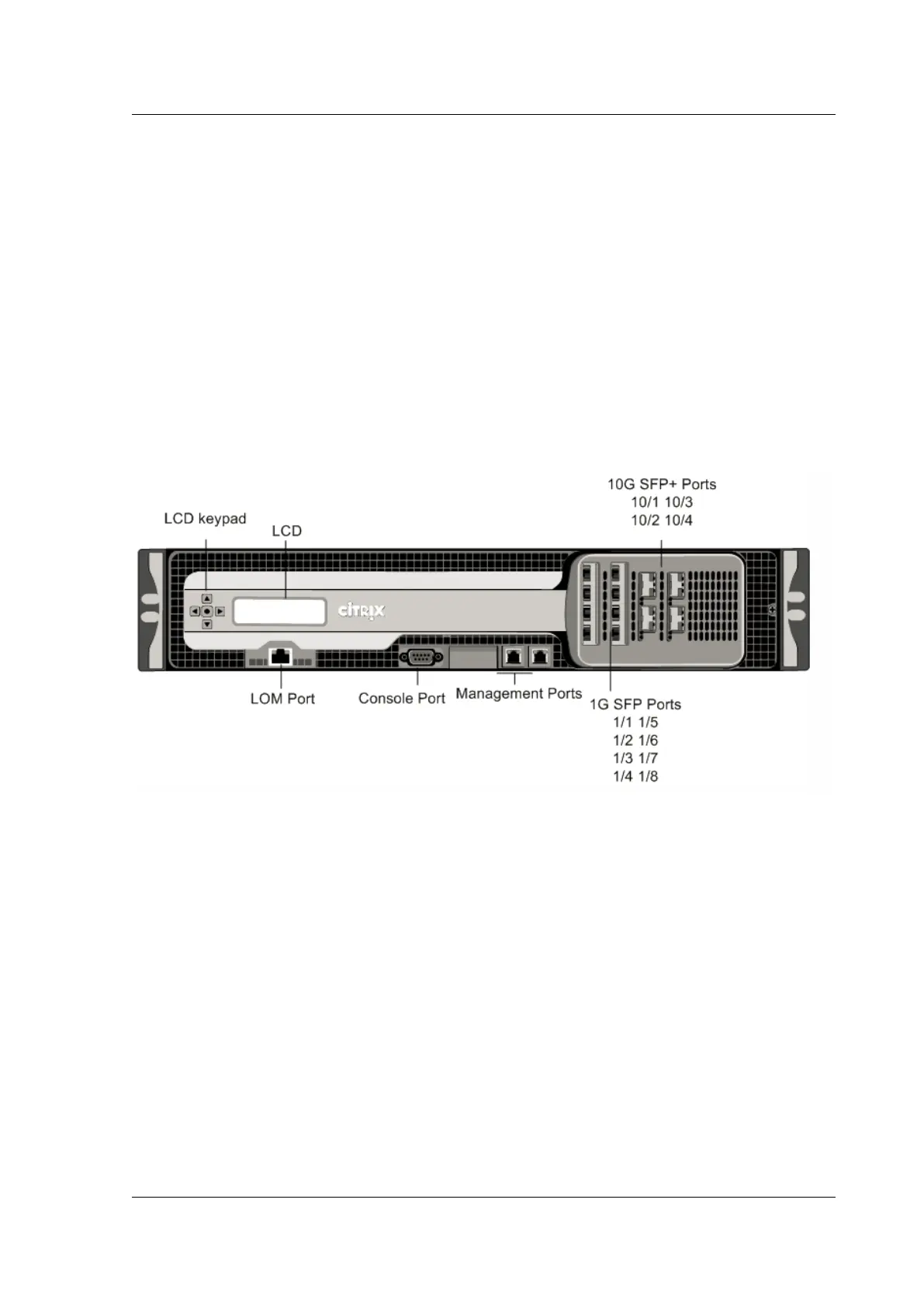

Figure 1. Citrix ADC MPX 11500/13500/14500/16500/18500/20500 appliance, front panel
The MPX 11500/13500/14500/16500/18500/20500 appliances have the following ports:
• 10/100Base-T copper Ethernet Port (RJ45), also called LOM port. You can use this port to re-
motely monitor and manage the appliance independently of the Citrix ADC soware.
Note: The LEDs on the LOM port are not operational by design.
• RS232 serial console port.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Eight 1G SFP ports numbered 1/1, 1/2, 1/3, 1/4 from top to bottom in the first column, and 1/5, 1/6,
1/7, and 1/8 from top to bottom in the second column.
• Four 10G SFP+ ports numbered 10/1 and 10/2 from top to bottom in the first column, and 10/3
and 10/4 from top to bottom in the second column.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 42

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
