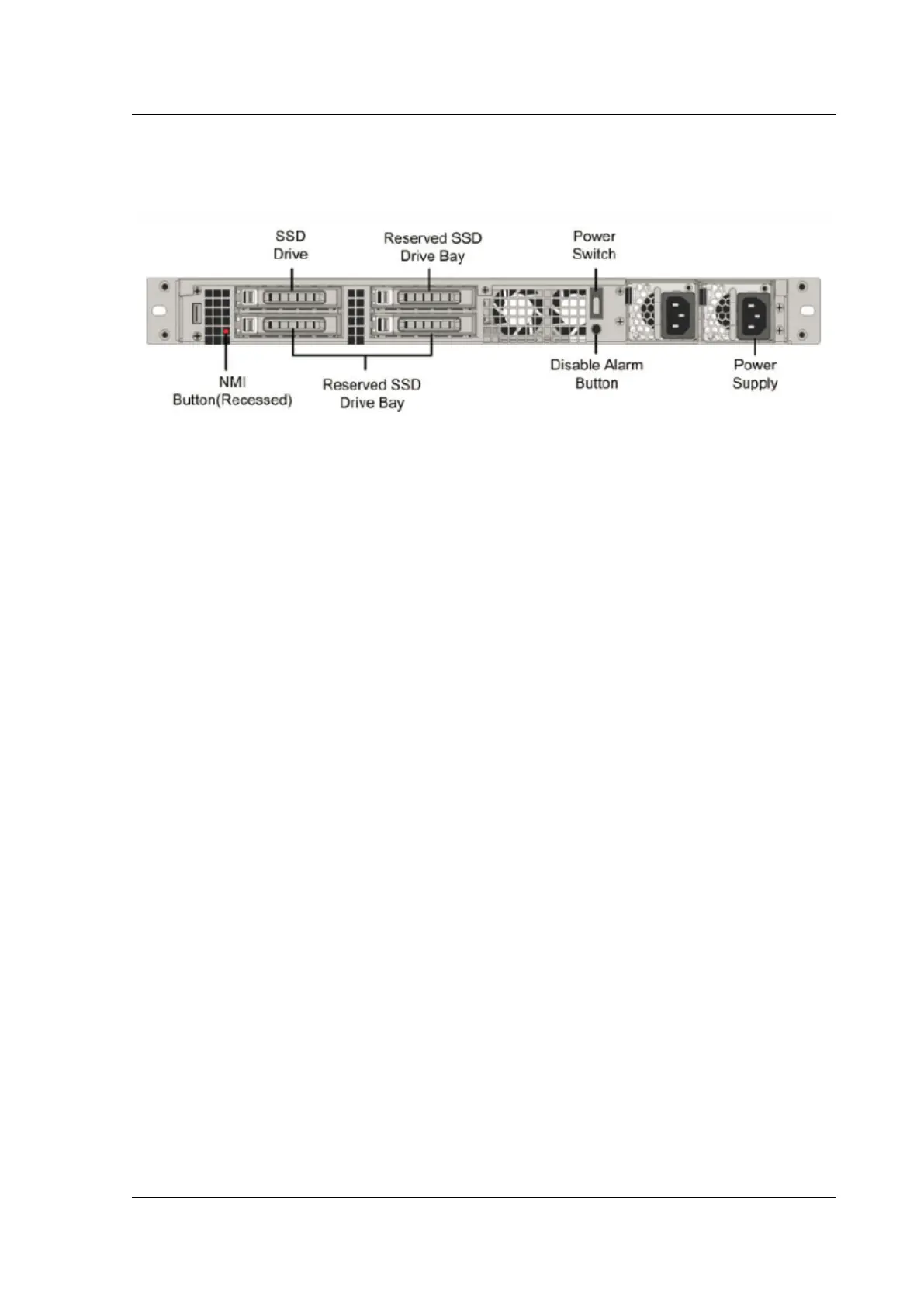

The following figure shows the rear panel of the T1010 appliance.
Figure 2. Citrix ADC T1010 rear panel
The following components are visible on the back panel of the T1010 appliance:
• One 256 GB removable solid-state drive, which is used to store the Citrix ADC soware and the
user data.
• Non-maskable interrupt (NMI) button, which is used at the request of Technical Support to pro-
duce a Citrix ADC core dump. You must use a pen, pencil, or other pointed object to press this
red button, which is recessed to prevent unintentional activation.
• Power switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
• Disable alarm button, which is nonfunctional. This button is functional only if you install a sec-
ond power supply.
• Press this button to stop the power alarm from sounding when you have plugged the appliance
into only one power outlet, or when one power supply is malfunctioning and you want to con-
tinue operating the appliance until it is repaired.
• Single power supply, rated at 450 watts, 110-220 volts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC T1100
February 25, 2019
The Citrix ADC T1100 is a 2U appliance, with 1 dual-core processor, and 42 GB memory.
The following figure shows the front panels of the two models T1100 appliance, T1100 (Gen1) and T1100
(16).
