Citrix ADC MPX Series User Manual

Citrix ADC MPX
Citrix ADC MPX 5550 and MPX 5650
February 25, 2019
The the Citrix ADC models MPX 5550 and MPX 5650 are 1U appliances. Each model has one quad-core
processor and 8 gigabytes (GB) of memory.

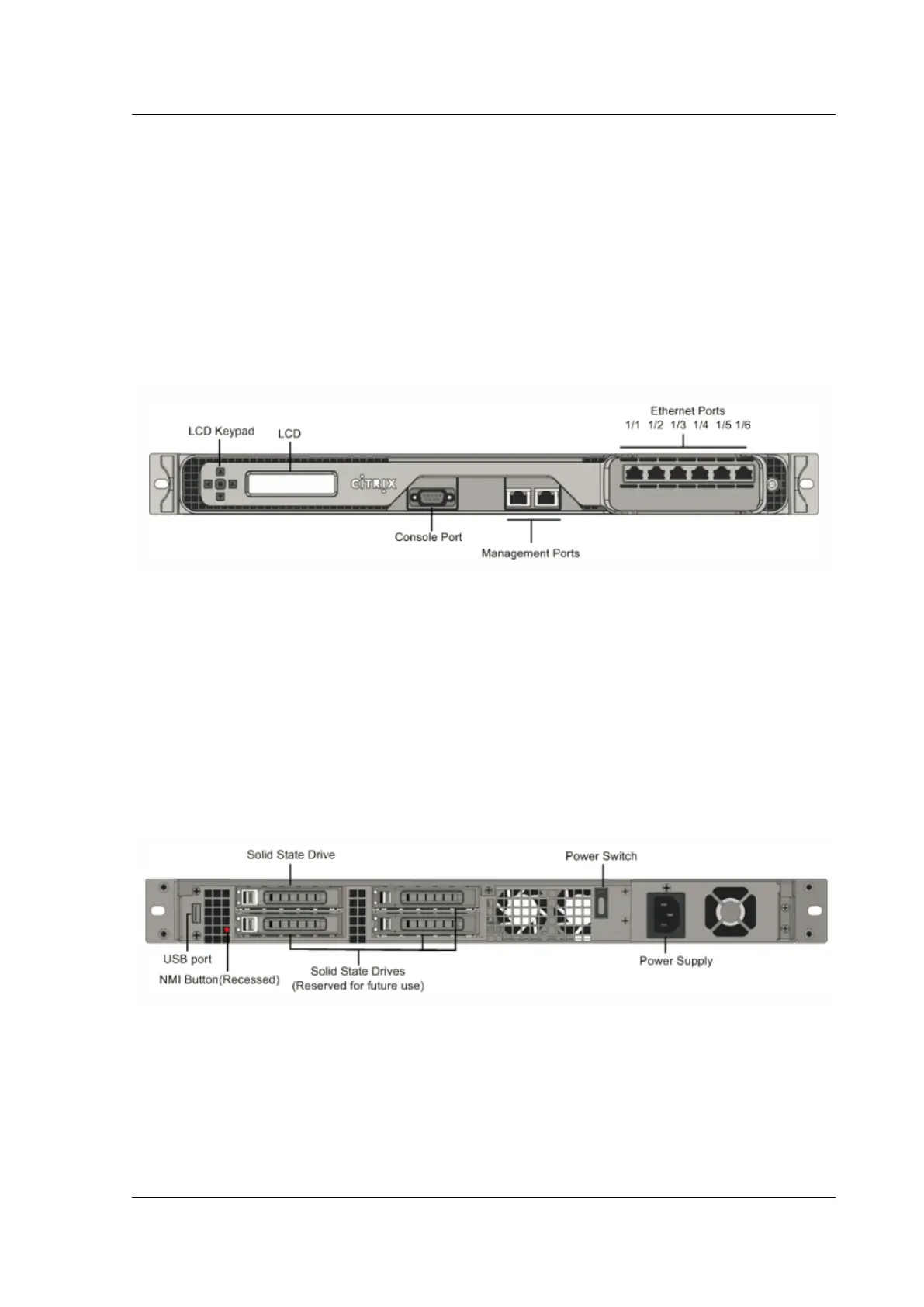

The following figure shows the front panel of the MPX 5550/5650 appliance.
Figure 1. Citrix ADC MPX 5550/5650, front panel
Depending on the model, the appliance has the following ports:
• RS232 serial console port.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), numbered 0/1 and 0/2 from
le to right. The management port is used to connect directly to the appliance for system ad-
ministration functions.
• Six 10/100/1000Base-T copper Ethernet ports numbered 1/1, 1/2, 1/3, 1/4, 1/5, and 1/6 from le to
right.
The following figure shows the back panel of the MPX 5550/5650 appliance.
Figure 2. Citrix ADC MPX 5550/5650 appliance, back panel
The following components are visible on the back panel of the MPX 5550/5650 appliance:
• 160 GB removable solid-state drive, which is used to store the Citrix ADC soware and the user
data.
• Power switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 29

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
