Citrix ADC MPX Series User Manual

Citrix ADC MPX
• Two 10/100/1000Base-T copper Ethernet management ports, numbered 0/1 and 0/2 from le
to right. You can use these ports to connect directly to the appliance for system administration
functions.
• Four 10/100/1000Base-T copper Ethernet ports numbered 1/1, 1/2, 1/3, and 1/4 from le to right.
Note: The network port numbers on all appliances consist of two numbers separated by a forward
slash. The first number is the port adapter slot number. The second number is the interface port
number. Ports on appliances are numbered sequentially starting with 1.

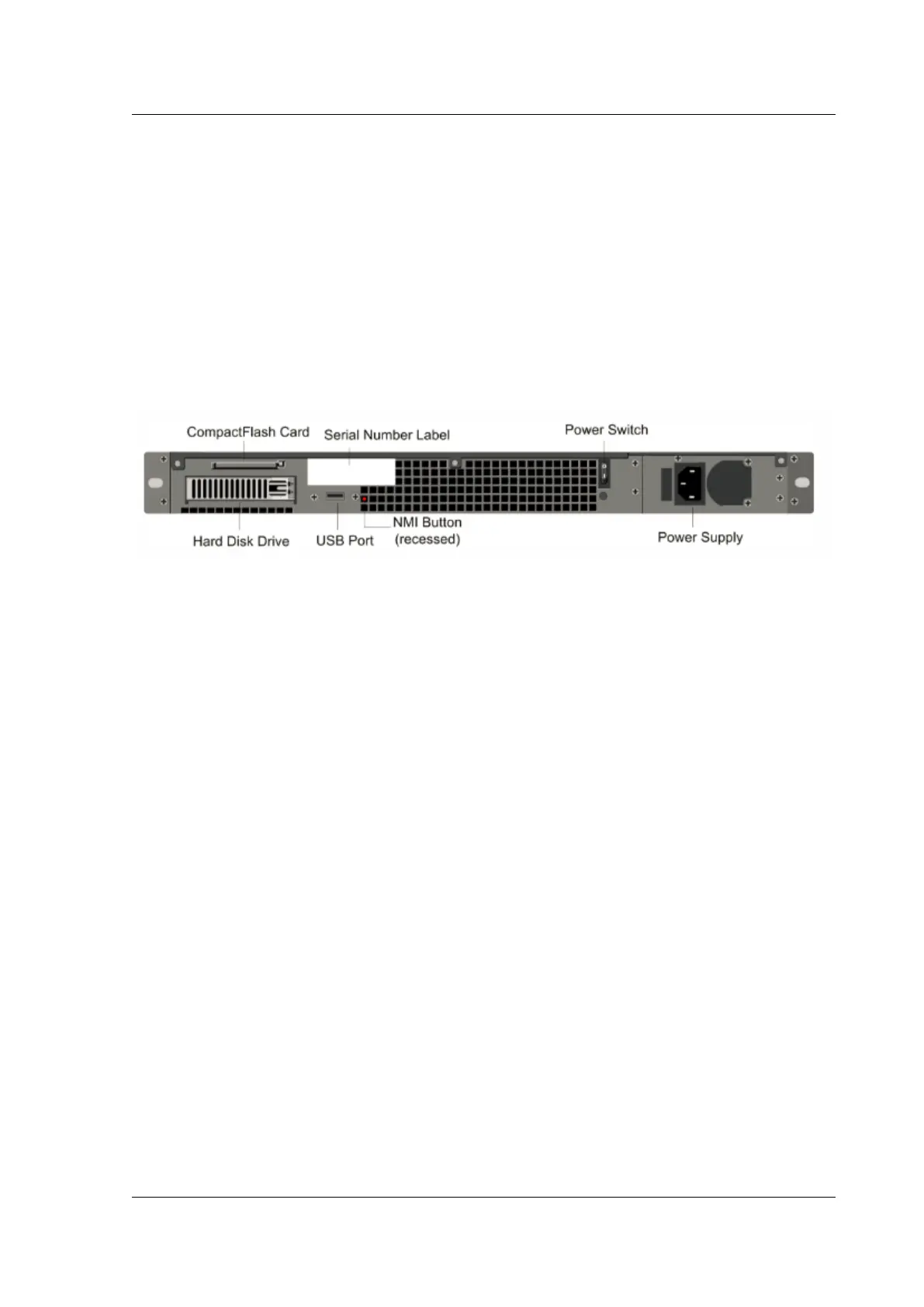

The following figure shows the back panel of the MPX 5500.
Figure 2. Citrix ADC MPX 5500, back panel
The following components are visible on the back panel of the MPX 5500:
• Four GB removable CompactFlash card that is used to store the Citrix ADC soware.
• Power switch, which turns o power to the MPX 5500, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
• Removable hard-disk drive (HDD) that is used to store user data. Appliances shipped before
February, 2012 store user data on a HDD. In appliances shipped aer February, 2012, a solid-
state drive replaces the HDD. Both types of drive have the same functionality and support the
same soware releases.
• USB port (reserved for a future release).
• Non-maskable interrupt (NMI) Button that is used at the request of Technical Support and pro-
duces a core dump on the appliance. You must use a pen, pencil, or other pointed object to
press this red button, which is recessed to prevent unintentional activation.
• Power supply rated at 300 watts, 110-220 volts. The power-supply fan is designed to turn on
only when the internal temperature of the power supply reaches a certain value. You cannot
see the fan turning on the back panel. What you can see is the fixed part of the fan that holds
the spinning motor.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 28

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
