Citrix ADC MPX 7500 and MPX 9500
February 25, 2019
The Citrix ADC MPX 7500/9500 are 1U appliances, each with 1 quad-core processor, and 8 giga-
bytes (GB) of memory. The MPX 7500/9500 appliances are available in two port configurations:
8x10/100/1000Base-T copper Ethernet ports and 4x1G SFP + 4x10/100/1000Base-T copper Ethernet
ports.

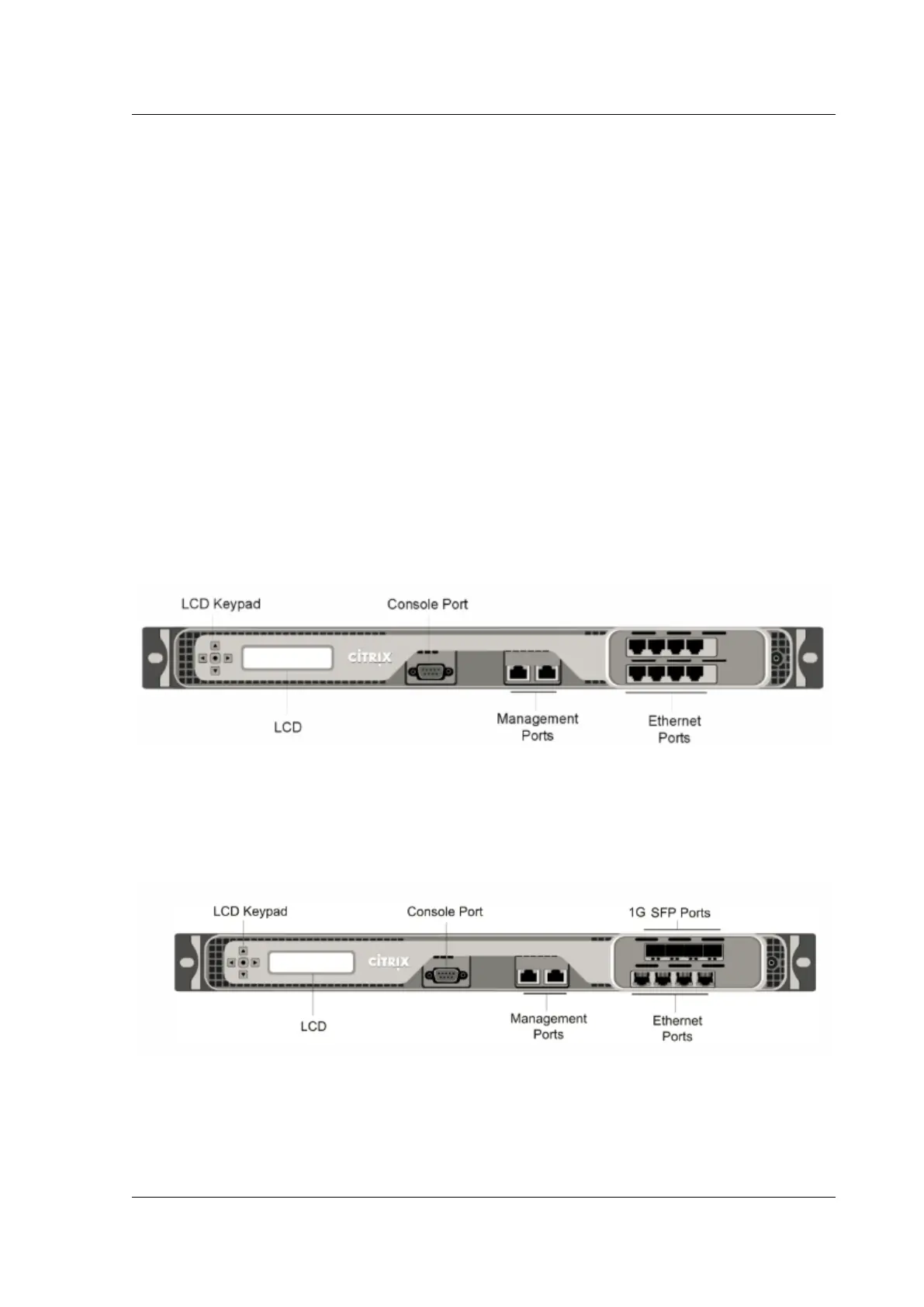

The following figure shows the front panel of the MPX 7500/9500 (8x10/100/1000Base-T copper Ether-
net ports) appliances.
Figure 1. Citrix ADC MPX 7500/9500 (8x10/100/1000Base-T copper Ethernet ports), front panel
The following figure shows the front panel of the MPX 7500/9500 (4x1G SFP + 4x10/100/1000Base-T
copper Ethernet ports) appliances.
Figure 2. Citrix ADC MPX 7500/9500 (4x1G SFP + 4x10/100/1000Base-T copper Ethernet ports), front
panel
Depending on the model, the appliance has the following ports:
• RS232 serial console port.
