Citrix ADC MPX Series User Manual

Citrix ADC MPX
Citrix ADC MPX 14xxx-40C
October 25, 2019
The Citrix ADC MPX 14xxx-40C are 2U appliances. Each model has 2 six-core processors, 64 GB of mem-
ory, and sixteen 10G SFP+ ports.
The following figure shows the front panel of the 14xxx-40C appliance.

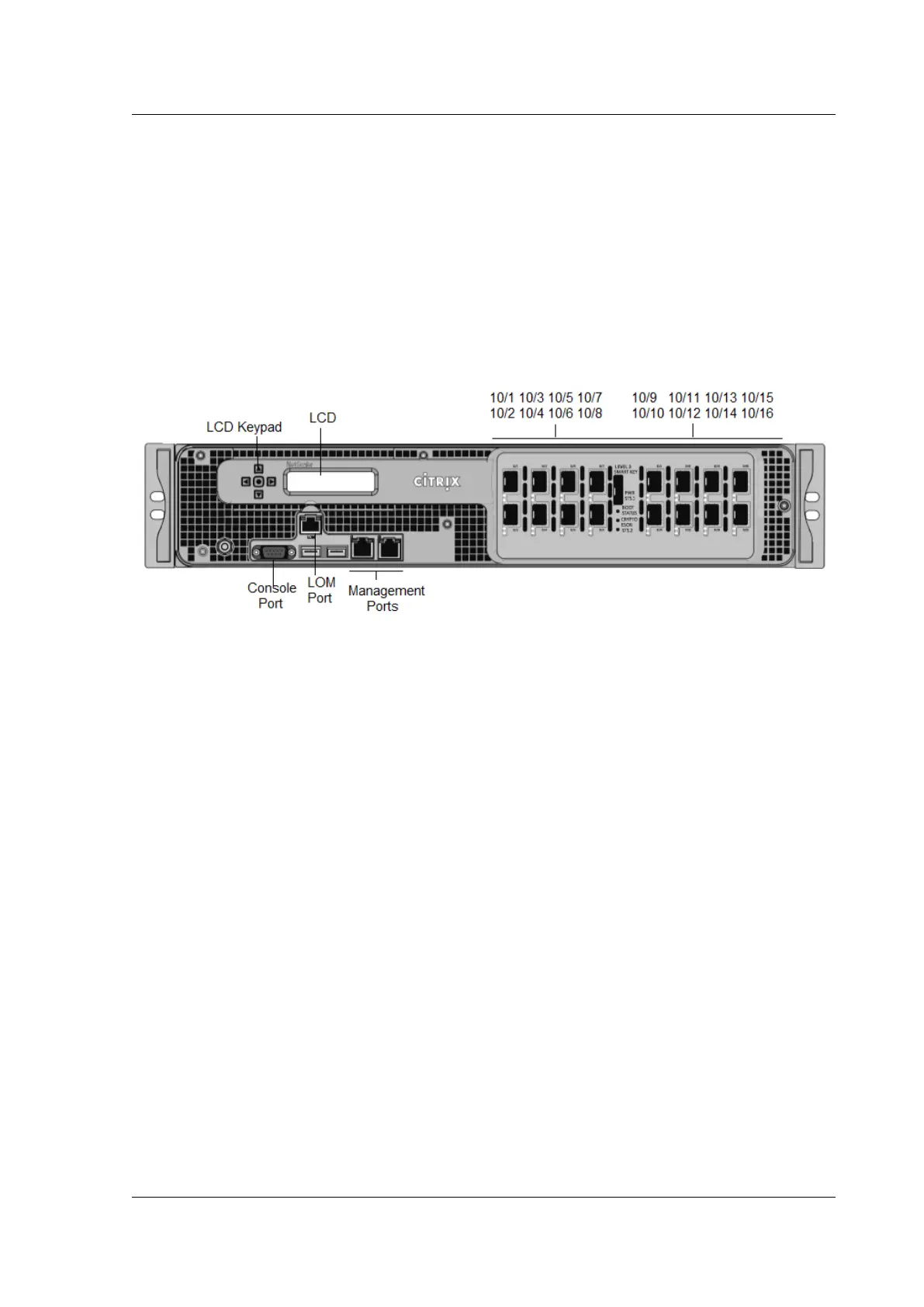

Figure 1. Citrix ADC MPX 14020/14040/14060/14080/14100-40C (16x10G SFP+ ports), front panel
The Citrix ADC MPX14xxx-40C appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T copper Ethernet management ports (RJ45), also called Management
ports, numbered 0/1 and 0/2 from le to right. These ports are used to connect directly to the
appliance for system administration functions.
• Network Ports: Sixteen 10G SFP+ ports.
The following figure shows the back panel of the MPX14xxx-40C appliances.
Figure 2. Citrix ADC MPX 14020/14040/14060/14080/14100-40C (16x10G SFP+), back panel
© 1999-2019 Citrix Systems, Inc. All rights reserved. 48

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
