Citrix ADC MPX Series User Manual

Citrix ADC MPX
• USB port (reserved for a future release).
• Non-maskable interrupt (NMI) button, which is used at the request of Technical Support to pro-
duce a Citrix ADC core dump. You must use a pen, pencil, or other pointed object to press this
red button, which is recessed to prevent unintentional activation.
• Single power supply, rated at 300 watts, 110-220 volts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 59xx
February 25, 2019
The Citrix ADC MPX 59xx appliance is a 1U appliance. This platform has a single 8-core processor and
16 gigabytes (GB) of memory. The appliance provides a total of eight network ports:
• Six 10/100/1000Base-T RJ45 copper Ethernet Ports.
• Two 10G/1G SFP+ Ethernet Ports.
For information on the soware releases supported on the Citrix ADC hardware platforms, see
Hardware Soware Release Matrix.

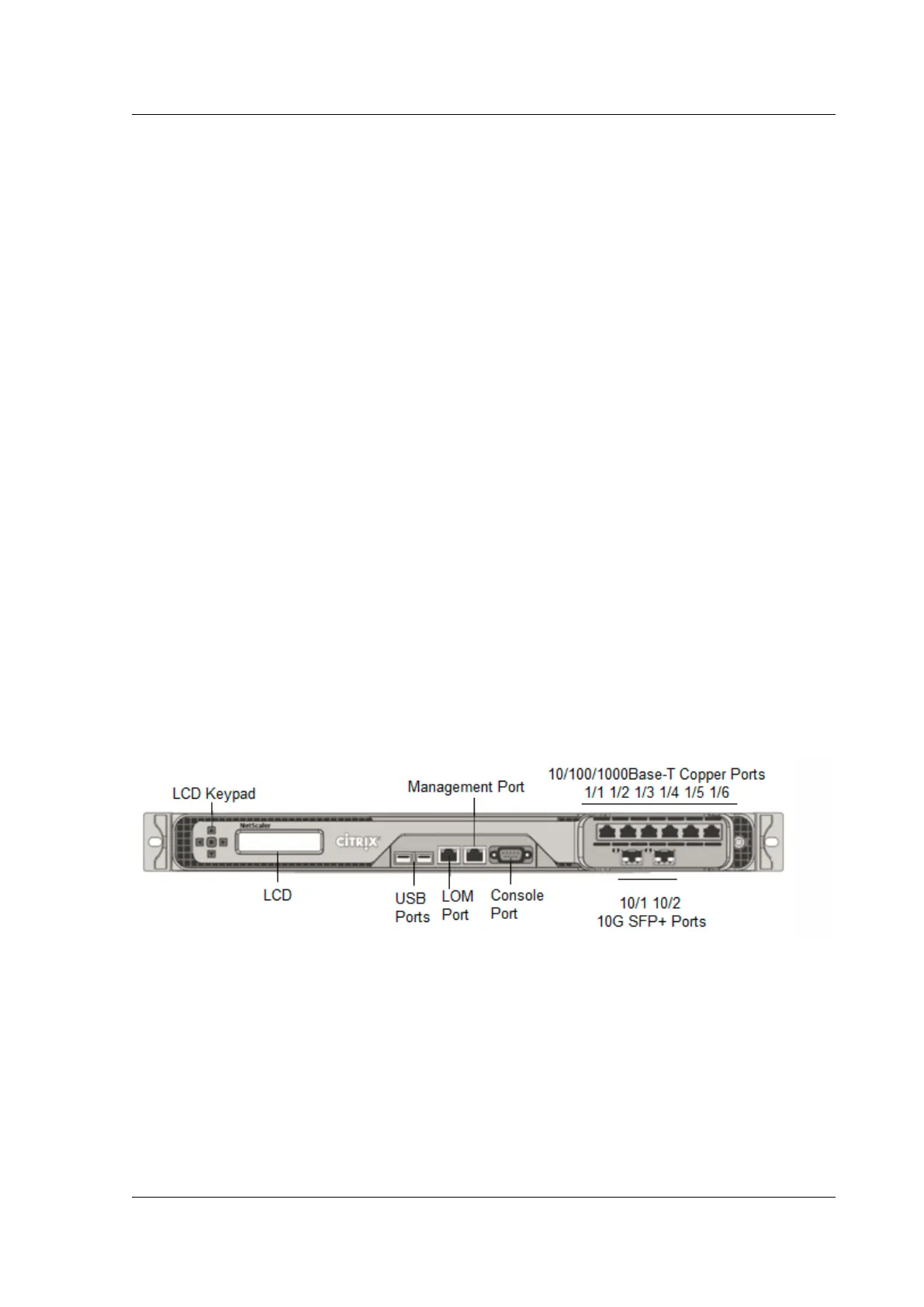

The following figure shows the front panel of the MPX 59xx appliance.
Figure 1. Citrix ADC MPX 59xx, front panel
The Citrix ADC MPX 59xx appliances have the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• One 10/100/1000Base-T RJ45 copper Ethernet Management Port, numbered 0/1. This port is
used to connect directly to the appliance for Citrix ADC administration functions.
• Six 10/100/1000Base-T RJ45 copper Ethernet Ports, numbered 1/1 to 1/6 from le to right.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 30

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
