The following components are visible on the back panel of the T1100:
• USB port (reserved for a future release).
• 160 GB removable solid-state drive that is used to store the Citrix ADC soware.
• Removable hard-disk drive that stores user data.
• Power switch, which turns o power to the appliance, just as if you were to unplug the power
supply. Press the switch for five seconds to turn o the power.
• Non-maskable interrupt (NMI) button that is used at the request of Technical Support and pro-
duces a core dump on the appliance. You must use a pen, pencil, or other pointed object to
press this red button, which is recessed to prevent unintentional activation.
• Disable alarm button. This button is functional only when the appliance has two power sup-
plies. Press this button to stop the power alarm from sounding when you have plugged the ap-
pliance into only one power outlet or when one power supply is malfunctioning and you want
to continue operating the appliance until it is repaired.
• Dual power supplies, each rated at 650 watts, 110-220 volts.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC T1120
February 25, 2019
The Citrix ADC T1120 appliance is a 2U appliance, with a dual-core processor and 128 GB memory.

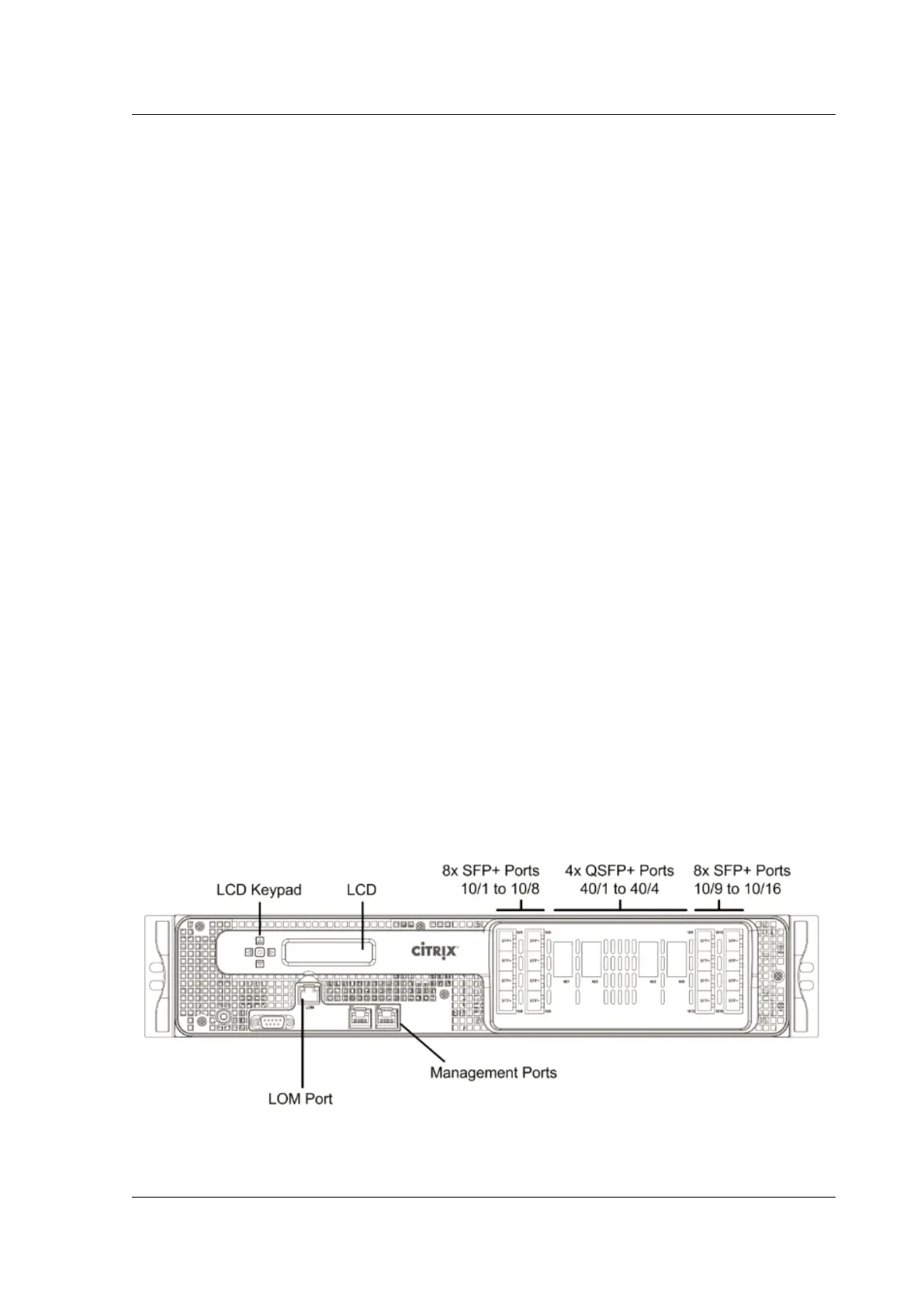

The following figure shows the front panel of the T1120 appliance.
Figure 1. Citrix ADC T1120 appliance front panel
The T1120 appliance has the following ports:
