Citrix ADC MPX Series User Manual

Citrix ADC MPX
• Power switch, which turns o power to the appliance. Press the switch for less than two seconds
to turn o the power.
• Two 128 GB removable solid-state drives.
• One 500 GB removable hard disk drive that is used to store user data.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
Citrix ADC MPX 25xxxA
October 25, 2019
The Citrix ADC MPX 25100A, MPX 25160A, and MPX 25200A are 2U appliances. Each model has two
eight-core processors, 256 gigabytes (GB) of memory, eight 40G QSFP+ ports (8x40G QSFP+).
The front panel of the MPX 25100A, MPX 25160A, and MPX 25200A appliances has a (8x40G QSFP+) port
configuration.

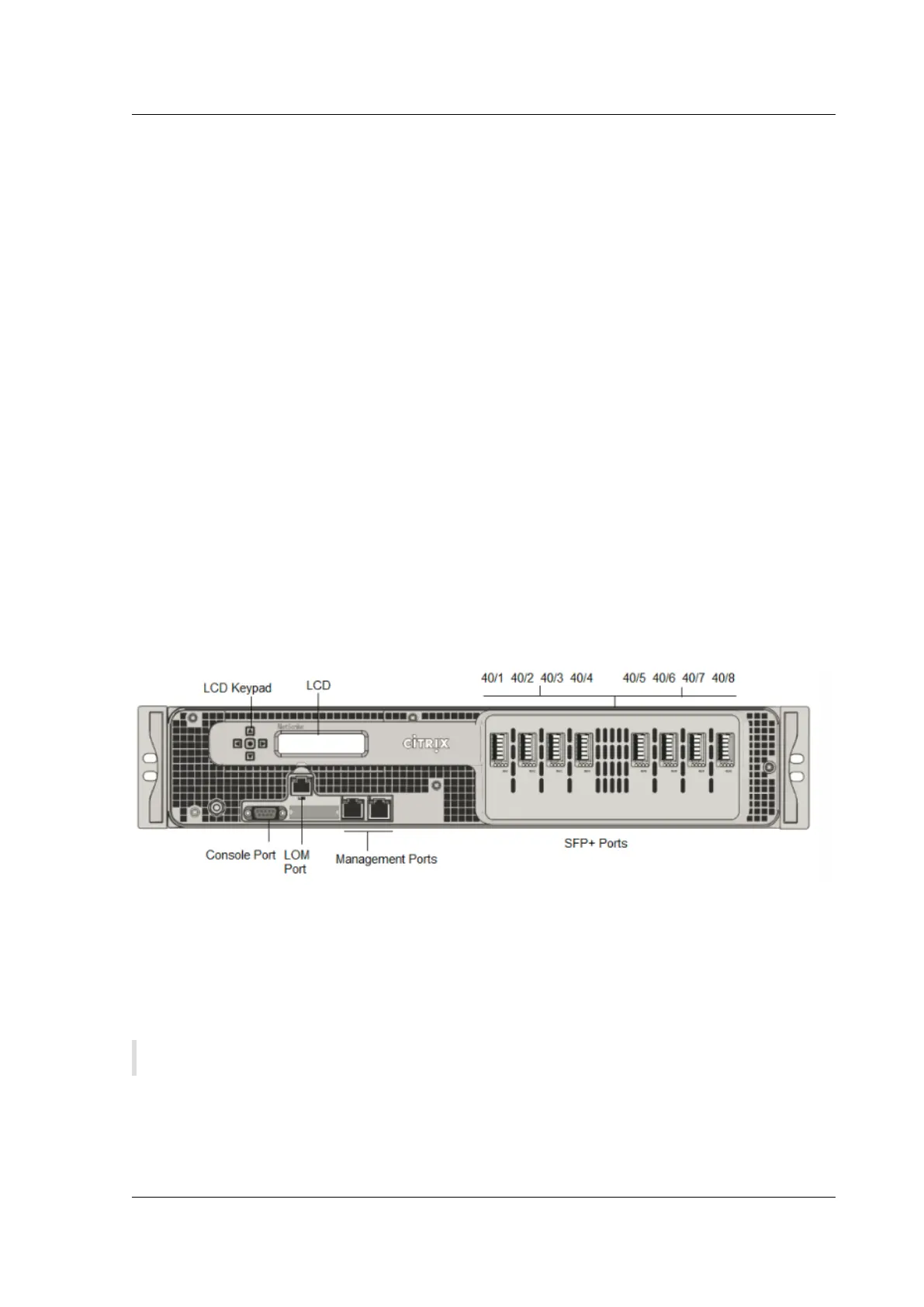

Figure 1. Citrix ADC MPX 25100A, MPX 25160A, and MPX 25200A, front panel
The Citrix ADC MPX 25100A, MPX 25160A, and MPX 25200A appliances have the following ports:
• RS232 serial Console Port.
• 10/100Base-T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Network Ports, eight 40G QSFP+ ports.
Note: 40G ports do not support 10G and 1G transceivers.
The following figure shows the back panel of the MPX 25100A, MPX 25160A, and MPX 25200A appli-
ances.
© 1999-2019 Citrix Systems, Inc. All rights reserved. 68

Citrix ADC MPX Series Specifications

General

Type	Application Delivery Controller
Memory	Up to 256 GB
Power Supply	Redundant
Product Series	MPX
Ports	10/25/40/100 Gbps Ethernet
Operating System	Citrix ADC
Management	Citrix ADM
Form Factor	Rack-mountable
