Citrix ADC MPX Series - Citrix ADC MPX 26 Xxx

Citrix ADC MPX
Citrix ADC MPX 26xxx
October 25, 2019
The Citrix ADC MPX 26100/26160/26200 appliances are 2U appliances. These appliances have two 14-
core processors and 256 GB of memory. The appliance has eight 50G and sixteen 25G network ports.
For information about the soware releases supported on the Citrix ADC hardware platforms, see Cit-
rix ADC MPX hardware soware compatibility matrix.
The following figure shows the front panel of the Citrix ADC MPX 26xxx appliances.
Figure 1. Citrix ADC MPX 26xxx, front panel
The Citrix ADC MPX 26xxx appliances have the following ports:
• RS232 serial console port.
• One 10/100/1000Base-T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base-T RJ45 copper EthernetManagement Ports, numbered 0/1 and 0/2. These
ports are used to connect directly to the appliance for Citrix ADC administration functions.
• Eight 50G ports, numbered 50/1 to 50/8.
• Sixteen 25G ports, numbered 25/1 through 25/16.
The following figure shows the back panel of the MPX 26xxx appliances.

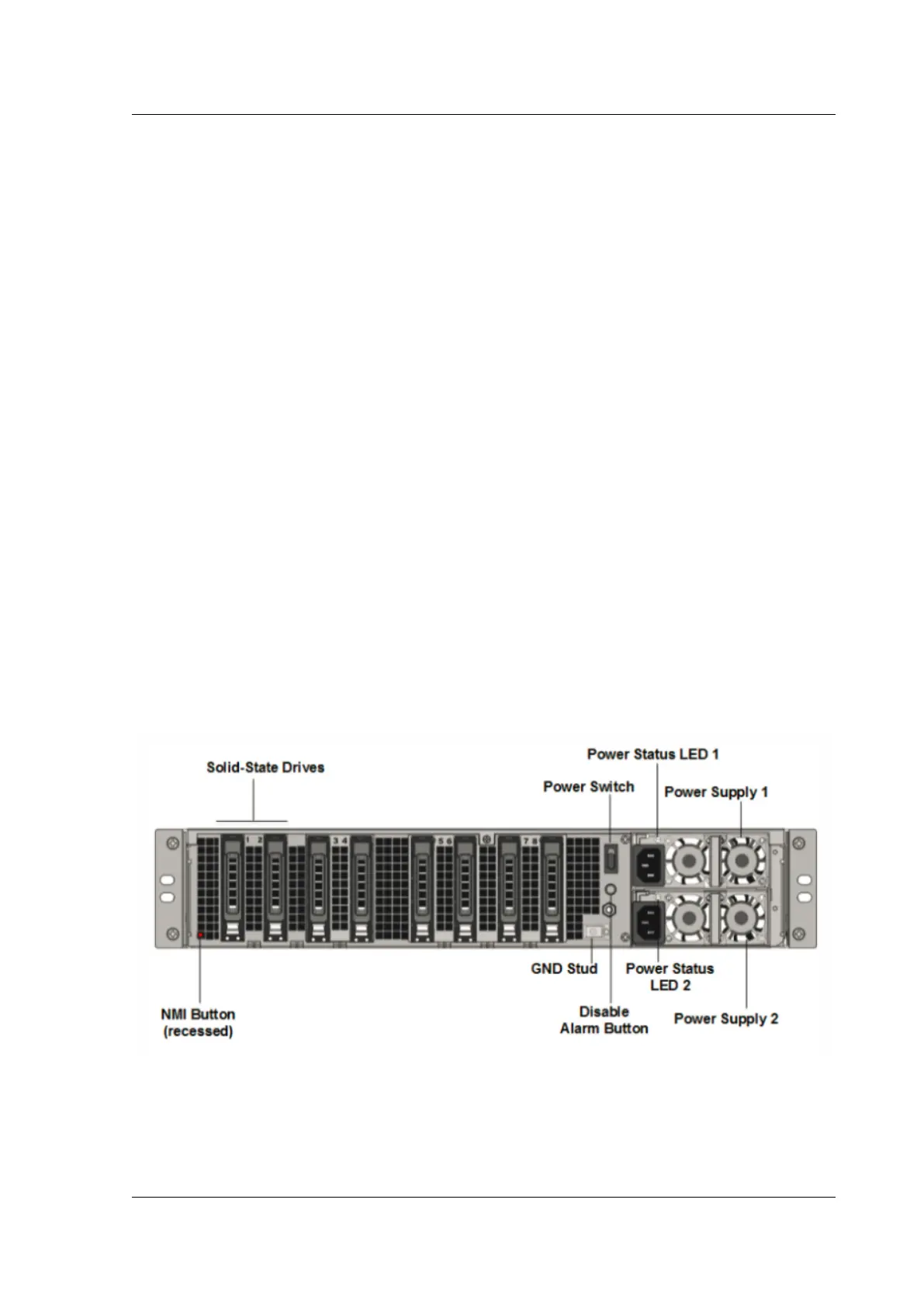

Figure 2. Citrix ADC MPX 26xxx, back panel
The following components are visible on the back panel of the Citrix ADC MPX 26xxx appliances:
• Two 480 GB removable solid-state drive (SSD). These appliances have a redundant array of in-
dependent disks (RAID) devices. In a RAID configuration, the same data is stored on multiple
© 1999-2019 Citrix Systems, Inc. All rights reserved. 76
